Australian Standard Plugs and Appliance Inlets | 10A-32A | AS/NZS 3112 | IP66

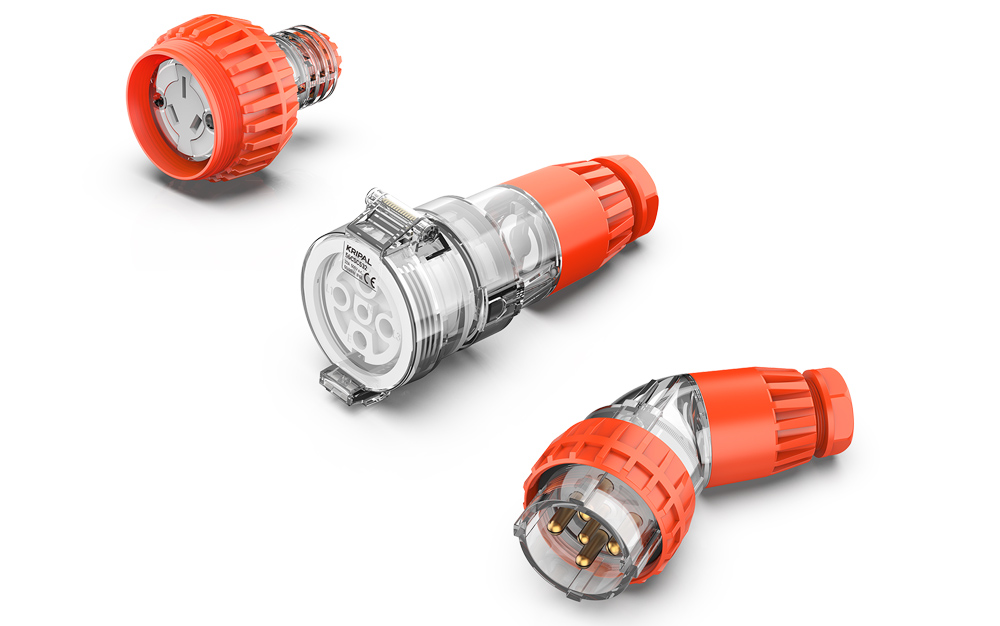

Outdoor Waterproof Switch-Australian Standard Plug and Appliance inlet
KRIPAL manufactures Australian standard plugs and appliance inlets in the UKW4 series, compliant with AS/NZS 3123 for industrial plugs, socket-outlets and couplers. Designed specifically for the Australian and New Zealand market, these IP66 rated connectors provide weatherproof power connections for construction sites, mining operations, agricultural installations, marinas and outdoor events across Australasia. Available in rated currents from 10A to 50A at 250/500V AC with 2P+E, 3P+E and 3P+N+E configurations, the UKW4 features the distinctive flat-pin design and keyway positioning specified by the Australian standard. The connectors are molded from UV-stabilized, impact-resistant engineering thermoplastic with IP66 environmental protection per AS 60529, and the color coding follows the AS/NZS convention: blue for 250V, red for 500V, with the appropriate clock-face position for the earth pin. The plug includes an integrated cable gland with strain relief, and the appliance inlet is designed for panel mounting on equipment. Certified to AS/NZS 3123 with the Regulatory Compliance Mark (RCM), KRIPAL Australian standard connectors are supplied to electrical wholesalers, equipment manufacturers and project contractors throughout Australia, New Zealand and Pacific Island markets.
Get A Quote

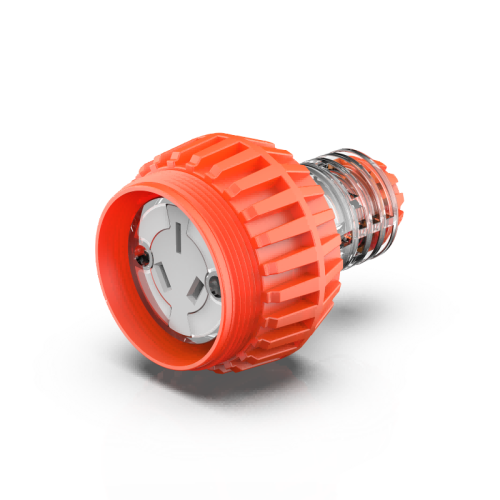

56CSC Plug Connector 3 Flat PIN 15A 250V IP66 Weatherproof Socket Outlet
The Kripal 56CSC is perfect for creating durable extension cords used in harsh environments.
Ask a Quote

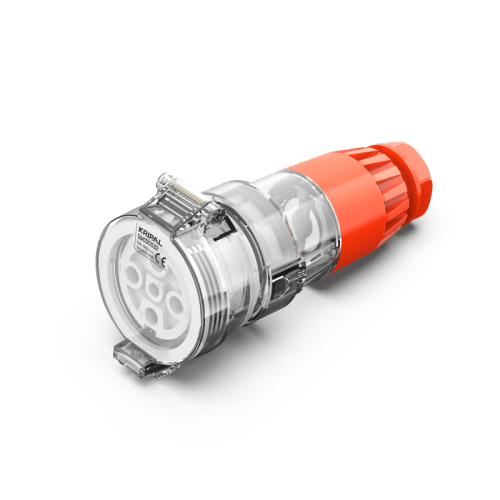

56CSC Plug Connector 5 Round PIN 32A 500V IP66 Weatherproof Socket Outlet
The Kripal 56CSC is a 32A 500V 5-pin extension cable connector that ensures a safe and continuous power supply.
Ask a Quote

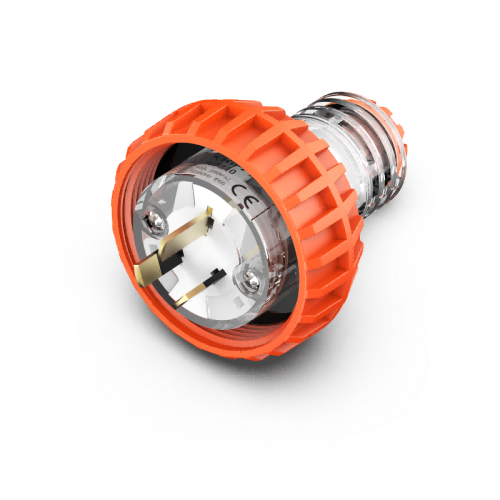

56P310 Plug Top Straight 3 Flat PIN 10A 250V IP66
The Kripal 56P310 is a durable 56 series plug with 3 flat pins. It provides safe, waterproof power for industrial use.
Ask a Quote

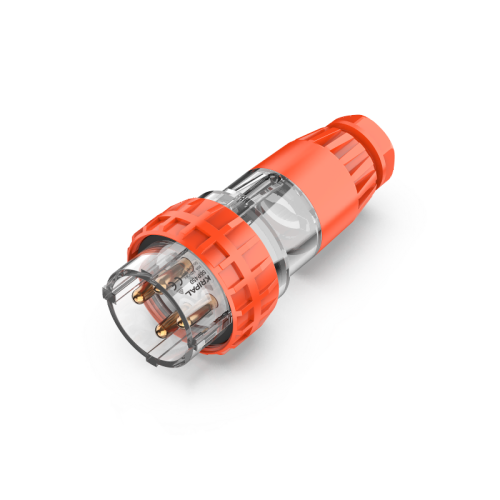

56P450 Plug Top Straight 4 Round PIN 50A 500V IP66
The KRIPAL 56P450 boasts superior performance and effectively resists the impact of dust and high-pressure water jets.
Ask a Quote

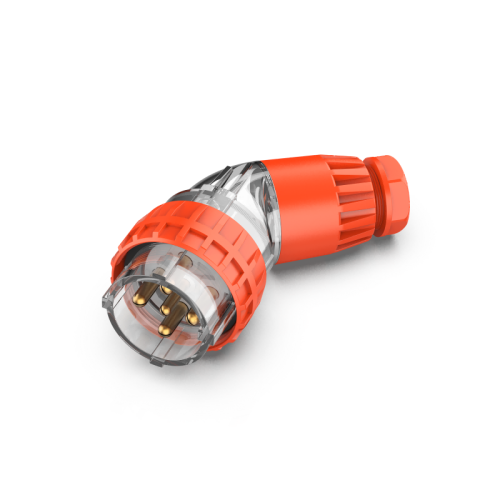

56PA550 Plug Top Angled 5 Round PIN 50A 500V IP66
The Kripal 56PA550 is a 50A 500V five-hole elbow plug with an IP66 waterproof rating, ensuring industrial safety.
Ask a QuoteAustralian Standard Plug Selection for AU/NZ Electrical Compliance
Australian standard industrial plugs and appliance inlets are the connectors specified by AS/NZS 3123 for industrial, commercial and outdoor power applications in Australia and New Zealand. They differ from the IEC 60309 connectors used in Europe in their flat-pin design and specific keyway positions. The plug connects to the end of a flexible cable, and the appliance inlet is panel-mounted on equipment, providing the connection point for the supply plug. KRIPAL UKW4 connectors provide IP66 weatherproof performance specifically for the demanding Australian environment: high UV exposure, extreme temperatures, dust, and in mining and agricultural applications, chemical and abrasive exposure.
UKW4 Australian Standard Connectors Technical Specifications
AS/NZS 3123 Compliance and Rating System
The UKW4 is fully compliant with AS/NZS 3123, the Australian/New Zealand standard for industrial plugs, socket-outlets and couplers. The rating system uses the current rating (10A, 20A, 32A, 50A) and the voltage/pole configuration identified by the earth pin position: 6h for 250V 2P+E, 10h for 500V 3P+E and 3P+N+E. Each current rating has a different pin diameter and contact spacing to prevent mismating. The connectors carry the RCM (Regulatory Compliance Mark), indicating compliance with all applicable Australian electrical safety and EMC regulations, and are listed on the ERAC (Electrical Regulatory Authorities Council) national database.
IP66 Performance in Australian Climate
The UKW4 IP66 enclosure is specifically formulated for the Australian climate: high-UV stabilizer package tested to 2000 hours of QUV accelerated weathering (equivalent to 20 years of central Australian sunlight exposure), thermal stabilizers for operation up to 70 degrees Celsius surface temperature (experienced by black enclosures in direct summer sun), and a wide-temperature silicone gasket that maintains flexibility from minus 20 to plus 80 degrees Celsius. The enclosure is tested to IP66 per AS 60529 with a 3-minute water jet test, and the sealing is maintained after 1000 thermal cycles between minus 10 and plus 60 degrees Celsius to simulate day-night cycling in Australian outdoor conditions.
Plug Strain Relief and Cable Management
The UKW4 plug incorporates an integrated cable gland with a multi-finger strain relief that grips the cable jacket without damaging the insulation. The gland accepts cable diameters from 8mm to 28mm (depending on the current rating) and is tightened by a compression nut that can be operated by hand or with a strap wrench. The strain relief is tested to withstand a pulling force of 100 Newtons applied to the cable for 1 minute without the conductors pulling out of the plug terminals, per AS/NZS 3123 mechanical testing. The plug terminals accept copper conductors up to 10 sq mm (50A models) and are clearly marked with the terminal identification (L, N, E or L1, L2, L3, N, E).
Appliance Inlet and Equipment Integration
The UKW4 appliance inlet is designed for panel mounting on equipment enclosures, providing the fixed connector that accepts the supply plug. The inlet has a flange with pre-drilled mounting holes on a standard pitch circle, and a gasket that seals against the equipment panel to maintain the IP66 rating. The inlet terminals are on the rear of the panel for internal wiring to the equipment’s circuit breaker or isolator. The inlet includes a hinged cover that seals the connector face when the plug is removed, maintaining IP66 protection for the equipment when not connected to the supply. The appliance inlet is used on portable generator sets, mobile lighting towers, portable pumping units, and other equipment that is connected to a flexible supply cable.
Source Australian Standard Connectors
- Connector Selection: Provide your voltage, current and application details for a UKW4 model recommendation.
- RCM Compliance: Obtain the RCM Declaration of Conformity for your equipment certification package.
- OEM/Wholesale Supply: Source UKW4 connectors in bulk with custom packaging for the Australian electrical market.
Power Connection for Australian and New Zealand Electrical Equipment
KRIPAL UKW4 Australian standard connectors provide the power connection interface for equipment and installations across Australasia, from the construction site distribution board to the portable generator on a remote mine site. The IP66 weatherproof design and AS/NZS 3123 compliance ensure safe, reliable power connections in the demanding Australian and New Zealand environment.
Mining Site Equipment Connections
Australian mining operations use UKW4 32A and 50A connectors for portable equipment power: dewatering pumps, ventilation fans, lighting towers and conveyor drives. The IP66 enclosure protects against coal or mineral dust, water from mine dewatering sprays, and the impact-resistant housing withstands the rough handling of mine site operations. The connectors are RCM marked for electrical safety compliance on mine sites regulated by the state mining inspectorate.
Construction Site Temporary Power
Australian construction sites use UKW4 connectors on temporary distribution boards and equipment cables, complying with AS/NZS 3012 for construction and demolition site electrical installations. The 20A and 32A ratings cover power tools, lighting and site amenities, with the connectors tested for the mechanical durability required on construction sites.
Agricultural and Irrigation Equipment
Australian farms and irrigation schemes use UKW4 connectors for pump and machinery power connections. The IP66 enclosure protects against irrigation water, dust from plowing and harvesting, and the high-UV environment of Australian agricultural regions. The connectors are supplied through rural electrical wholesalers.
Marina and Waterfront Installations
Australian marinas use UKW4 16A and 32A connectors for vessel shore power, complying with AS/NZS 3004 for marina electrical installations. The IP66 enclosure withstands salt spray and tropical rainfall, and the UV-stabilized housing resists degradation in the intense Australian coastal sunlight.
Outdoor Event and Festival Power
Australian outdoor events from music festivals to agricultural shows use UKW4 connectors for temporary power distribution. The RCM marking provides the electrical safety compliance required by event safety officers and local council permits.
Source Australian Standard Power Connectors
- Application Support: Our engineers specify the correct UKW4 connector for your Australian installation requirements.
- RCM Documentation: Obtain the full compliance package for your electrical safety file.
- Bulk Supply: Source UKW4 connectors in volumes for the Australian and New Zealand electrical market.
KRIPAL Australian Standard Plug Manufacturing: AS/NZS Compliance
KRIPAL Australian standard plugs and appliance inlets are manufactured on a dedicated assembly line where the AS/NZS 3123 compliant pin configuration is assembled with precision-molded thermoplastic bodies. Each plug and inlet undergoes a pin dimension verification, pull-force test, and dielectric withstand test for the Australian and New Zealand electrical equipment and extension lead markets.
AS/NZS 3123 Compliant Pin Manufacturing
Plug pins are fabricated from brass with nickel or silver plating, stamped to the precise dimensional requirements of AS/NZS 3112. Pin diameter, length, and spacing are verified on a coordinate measuring machine (CMM) for first-off samples from each new die setup. The insulated pin sleeve on active and neutral pins (required for compliance) is injection-molded directly onto the pin in a two-shot process.
Thermoplastic Body Molding and Cable Strain Relief
Plug bodies are injection-molded from flame-retardant PVC or TPE with integral strain relief. The strain relief is tested to AS/NZS 3100 requirements: 60N pull force applied for 1 minute without displacement exceeding 2mm, and a 20000-cycle flex test without conductor breakage.
Appliance Inlet Contact Retention and Temperature Rise
Appliance inlets are tested for contact retention force using a calibrated pin gauge per IEC 60320-1. Temperature rise at the inlet terminals is measured at rated current in free air per AS/NZS 60320.1, with the maximum terminal temperature rise limited to 45K for the standard PVC-insulated connecting cable.
Production-Line Electrical Testing
Every plug and appliance inlet undergoes: pin dimension gauge check (GO/NO-GO), dielectric withstand test at 2000V AC between live pins and between live pins and accessible surfaces, polarity verification (active, neutral, earth correctly identified), and earth continuity test below 0.1 ohms from earth pin to any exposed metal part.
Distributor Stock Holding Programs for Australian Standard Plugs
KRIPAL supports distributor inventory programs with agreed stock levels for standard 10A, 15A, and 20A plugs and appliance inlets. Transparent and white body variants are available, with scheduled replenishment based on demand.
Private Label and OEM Branding for Australian Standard Plugs
Laser-marked part numbers, OEM-branded packaging, and customized compliance documentation are available. KRIPAL supports the supply of plugs with customer-specified cable assemblies and molded plug-cord configurations.
Multi-Region Certification and Compliance Support
AS/NZS 3112 and AS/NZS 3100 compliance documentation is provided. RCM (Regulatory Compliance Mark) documentation is maintained for all models, supporting Australian and New Zealand electrical equipment registration requirements.
Direct Technical Access to KRIPAL Production Engineers
Your technical team communicates with the engineers who designed and manufactured your Australian standard plugs and inlets. Application questions including RCM compliance, cable assembly specifications, and custom configurations receive answers within 24 hours during China business hours.
Frequently Asked Questions
Explore FAQ >A plug has male pins and connects to a socket outlet. An appliance inlet is a male connector mounted on equipment that receives a female connector (socket) on the supply cord. Inlets are common on equipment with detachable power cords.
IP66 versions are available for outdoor installations. Standard non-weatherproof plugs are for indoor use only. Ensure the mating socket is also weatherproof for outdoor applications.
