Capacitor Switching Contactors for Power Factor Correction

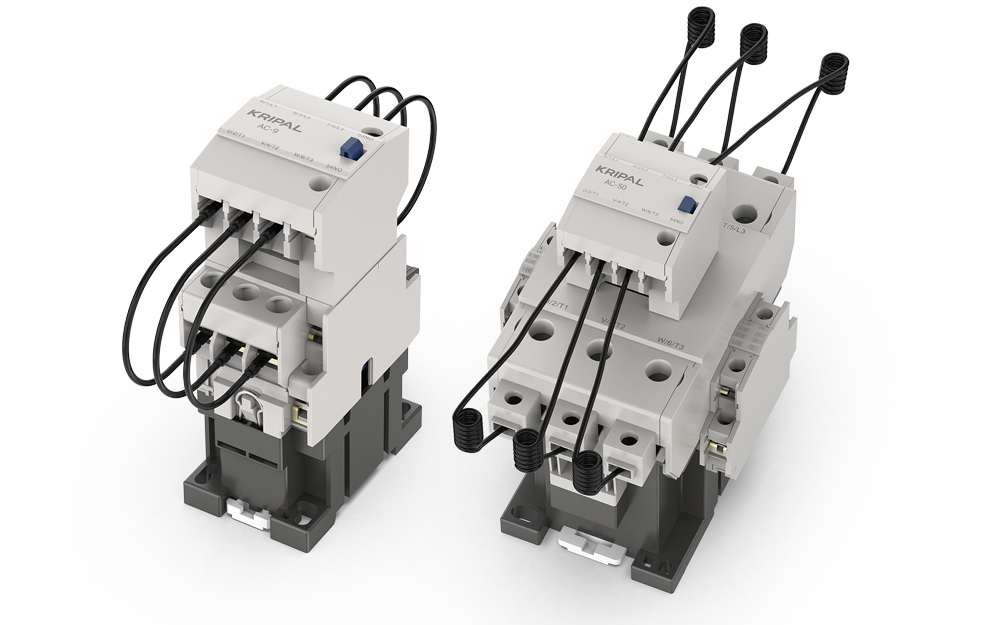

KRIPAL manufactures capacitor duty contactors specifically designed for switching power factor correction capacitor banks in commercial buildings, manufacturing plants and utility substations. The range spans 9A to 85A with built-in damping resistors and early-make auxiliary contacts that pre-charge capacitors before main contact closure, suppressing inrush currents up to 200 times nominal rating per IEC 60947-4-1 AC-6b utilization category. Standard 24V to 480V AC/DC coil voltages support global PFC panel integration.

Get A Quote
Capacitor Switching Contactors for Power Factor Correction
UKC1 Capacitor Contactor 3-Pole 9A~85A 24V 110V 220V 400V ac Coil
  • certificate

UKC1 Capacitor Contactor 3-Pole 9A~85A 24V 110V 220V 400V ac Coil

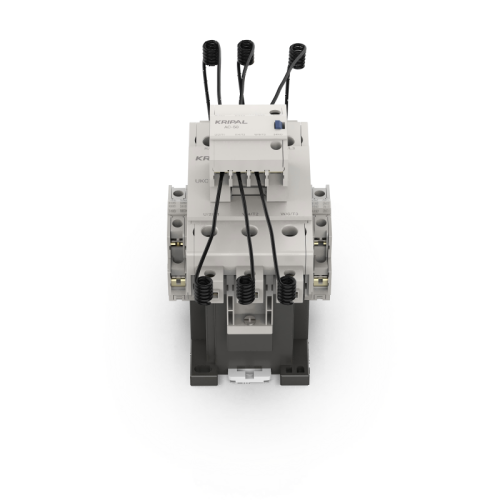

UKC1-9C~85C Capacitor Contactor is an electrical switching device specifically designed for controlling the switching of power capacitors.

Ask a Quote
UKC1 Capacitor Contactor 3-Pole 50A 24V 110V 220V 400V ac Coil 58kvar
  • certificate

UKC1 Capacitor Contactor 3-Pole 50A 24V 110V 220V 400V ac Coil 58kvar

UKC1-9C~85C Capacitor Contactor is an electrical switching device specifically designed for controlling the switching of power capacitors.

Ask a Quote
UKC1 Capacitor Contactor 3-Pole 75A 24V 110V 220V 400V ac Coil 78kvar
  • certificate

UKC1 Capacitor Contactor 3-Pole 75A 24V 110V 220V 400V ac Coil 78kvar

UKC1-9C~85C Capacitor Contactor is an electrical switching device specifically designed for controlling the switching of power capacitors.

Ask a Quote

Download Catalog

For more information, please download the album.

Get A Free Quote Download Catalog

Capacitor Duty Contactor Selection Guide

Conventional contactors may experience accelerated contact wear under capacitive inrush current conditions in Power Factor Correction (PFC) systems.KRIPAL capacitor duty contactors incorporate pre-insertion contacts and inrush current limiting resistors to reduce transient current stress before main contact closure, improving the service life and reliability of capacitor bank switching systems.

Technical Specifications for PFC Applications

Integrated Inrush Current Limiting Resistors

Designed to limit high inrush current during capacitor switching in PFC systems. These resistors dissipate transient energy before main contact closure, reducing electrical stress on the contact system.

Pre-Insertion Contact System

Uses a pre-insertion contact mechanism with a pre-charge resistor circuit to limit inrush current before main contact closure, reducing electrical stress during switching operations.

Operational Range: 9A to 85A

Covers a wide range of power factor correction applications, from small commercial systems to large industrial capacitor banks up to 78 kvar (at 400V systems).

Control Coil Versatility

Standard coil voltages include 24V AC/DC, 110V AC, 220-240V AC, and 380-415V AC for compatibility with international industrial control systems.

Application Guidelines

Conventional motor control contactors are not suitable for capacitor bank switching in PFC systems. Repetitive inrush current conditions can increase contact wear and the risk of contact welding.Capacitor duty contactors with inrush current limiting resistors and pre-insertion contacts are required to ensure reliable switching performance.

4 Steps to Size Your Capacitor Contactor

  1. Determine the kvar Rating: Match the capacitor step rating with the appropriate capacitor duty contactor rating (e.g., 50A / 58 kvar or 75A / 78 kvar).
  2. Verify the Rated Operational Current: Confirm the contactor operational current rating is suitable for the capacitor switching duty under PFC conditions.
  3. Match the Control Circuit Voltage: Ensure the coil voltage matches the output signal of the PFC controller (typically 24V, 110V, 220-240V, or 380-415V AC).
  4. Confirm the Duty Classification: Ensure the contactor is designed for capacitor switching duty to reduce the risk of contact wear and ensure reliable operation under inrush current conditions.

Power Factor Correction: Active Installations by Industry Type

KRIPAL capacitor duty contactors drive high-performance APFC systems across a wide range of environments—from commercial facilities to heavy-duty manufacturing plants and industrial substations. Designed to compensate for inductive loads, these contactors help you cut reactive power penalties and boost your facility’s energy efficiency.

Retail and Office Building Power Quality

Compact 9 A to 50 A capacitor duty contactors switch fixed and automatic compensation stages in shopping center and office tower electrical rooms, helping maintain a power factor above 0.95 and reduce utility penalty charges on monthly demand bills.

Manufacturing Plant Reactive Compensation

The 50A / 58kvar models are engineered for medium-scale APFC systems in facilities with motor-driven loads. Whether it’s injection molding, metal stamping, or textile production, these units handle volatile reactive power demands with precision.

Steel Mill and Mining Substation Compensation

The 75A / 78kvar models power critical APFC systems in electric arc furnace plants, chemical facilities, and mining operations. These multi-step banks (6-12 steps) tackle intense load fluctuations to maintain a rock-solid power factor throughout continuous, high-stress operations.

Power Your PFC Panel Production

  • Application Sizing Support: Send us your PFC system specifications and our engineers recommend the optimal contactor with damping resistor configuration matched to your capacitor bank ratings.
  • Wiring and Commissioning Guides: Receive detailed early-make contact wiring schematics and step-by-step commissioning checklists for PFC panel integration.
  • Project-Based OEM Pricing: Contact our export team for volume pricing on multi-stage PFC panel projects with coordinated delivery scheduling.
Power Factor Correction: Active Installations by Industry Type

Capacitor Contactor Production: Dedicated Testing, Direct Delivery

KRIPAL capacitor switching contactors are produced on a dedicated line with controlled damping resistor assembly, early-make contact calibration, and AC-6b batch testing to ensure consistent switching performance.Each batch is validated under capacitor switching conditions to prevent contact welding and abnormal inrush currents that may impact PFC system reliability.This ensures higher switching stability, longer capacitor service life, and reduced downtime in industrial power factor correction applications.

Damping Resistor Integration Quality Control

Each unit’s damping resistor value is measured before the contactor leaves the production line. A resistor that is out of tolerance means inrush current will reach the main contacts during capacitor energization, the exact failure mode that AC-6b rating is supposed to prevent.

Early-Make Contact Timing Verification

The auxiliary early-make contacts must close before the main contacts on energization and open after the main contacts on de-energization. KRIPAL tests this timing sequence on every production batch using oscilloscope-captured contact sequencing | a test that general-purpose contactor lines never perform.

Capacitor Bank Simulation Testing

Batch samples are tested switching actual capacitor banks at rated kvar and voltage, not simulated resistive loads. This validates that the contactor, damping resistors, and early-make timing work as an integrated system under real PFC conditions.

Multi-Stage PFC Panel Coordination

When building automatic PFC panels with 6 to 12 switching stages, source all contactors from KRIPAL for uniform early-make timing and consistent damping resistor characteristics across stages, simplifying your PFC controller’s switching logic and fault diagnostics.

Project-Phased Delivery for PFC Installations

For large PFC retrofit projects spanning multiple buildings or substations, KRIPAL warehouses finished contactors and releases against your installation schedule, reducing on-site storage and theft risk at construction sites.

PFC Panel Builder Technical Support

KRIPAL application engineers review your capacitor bank specifications before production and confirm correct contactor sizing against AC-6b utilization category requirements | catching misapplications before they ship, not after they fail in the field.

Private Label for PFC Panel Manufacturers

Your company’s contactor part numbers, kvar ratings, and branding laser-marked. KRIPAL’s identity stays off the product, supporting your panel brand with end users and maintenance contractors.

Post-Installation Failure Analysis Support

If a contactor fails in the field, KRIPAL engineers perform root-cause analysis on the returned unit and share findings with your technical team | identifying whether the cause was a misapplication, a system fault, or a manufacturing defect so corrective action is targeted correctly.

Get A Free Quote

Frequently Asked Questions

Explore FAQ >
=A capacitor switching contactor is designed to switch capacitor banks in power factor correction systems. KRIPAL UKC1 capacitor contactors include damping resistors to handle high inrush current.
No. Standard contactors are not recommended for capacitor duty due to high inrush current. KRIPAL capacitor duty contactors use early make contacts and damping resistors for safe switching.
Match the contactor to the capacitor bank kvar rating and rated current. KRIPAL offers models rated to 58 kvar (50A) and 78 kvar (75A).
No, absolutely not. The resistors are critical components that protect your system. Removing them turns your capacitor duty contactor into a standard switch, which will cause immediate contact failure upon the next switching operation and potentially lead to capacitor damage or fire hazards. You must replace the resistor module or the entire contactor.
Yes. KRIPAL manufactures and exports UKC1 capacitor switching contactors factory direct to global industrial customers.
You should select a contactor based on the rated reactive power (kvar) of your capacitor step at a specific voltage. Always consult our kvar-to-Ampere selection table to ensure the contactor's operational current rating (AC-6b) exceeds your capacitor bank's requirements. If you are unsure, feel free to send us your capacitor specifications for a professional recommendation.
