Terminal Junction Boxes IP66 | ABS Polycarbonate | Cable Connection Enclosures

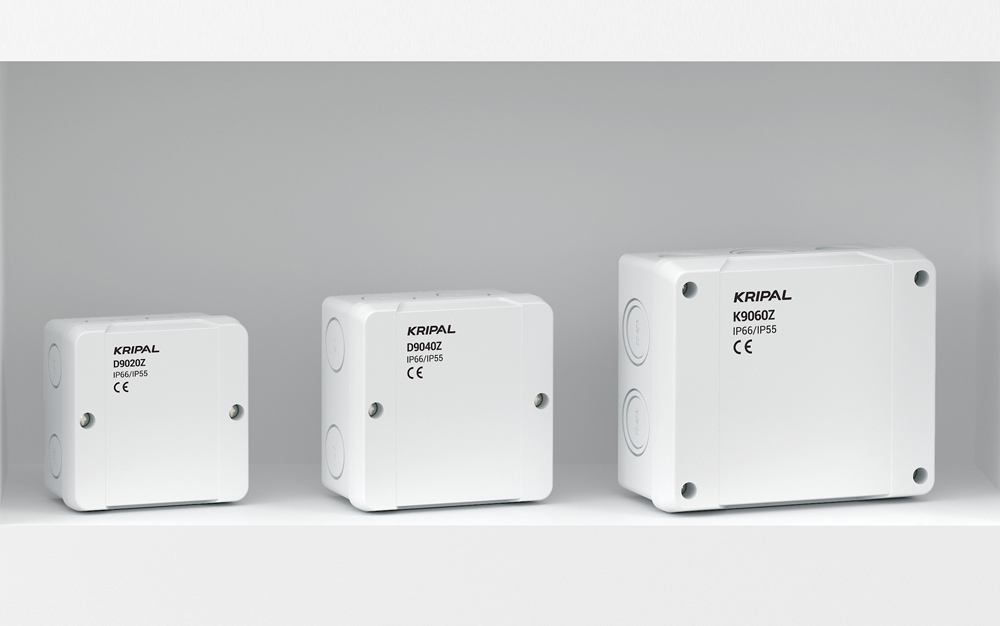

Outdoor Waterproof Switch-Terminal Junction Box
KRIPAL manufactures IP65/IP67 terminal junction boxes in the UKW6 series for electrical connection and distribution in industrial, commercial and outdoor installations. These weatherproof enclosures provide a protected environment for cable terminations, connections and splice joints, available in ABS and polycarbonate materials with a wide range of sizes from compact 80x80x50mm boxes for sensor connections to large 300x250x150mm boxes for multi-cable distribution. The enclosure features a hinged cover with a closed-cell polyurethane foam gasket and captive stainless steel cover screws, achieving IP65 or IP67 protection depending on the model. The base includes multiple pre-marked cable entry knockouts on all sides for flexible cable routing, and an internal DIN-rail mounting provision for installing terminal blocks, relays and small control devices. The ABS version is suitable for general indoor and outdoor use, while the polycarbonate version provides higher impact resistance (IK08), wider temperature range (minus 40 to plus 80 degrees Celsius) and improved UV resistance for harsh outdoor and industrial environments. Certified to IEC 60670 for boxes and enclosures for electrical accessories, KRIPAL junction boxes are used extensively for cable junction, sensor connection, control device housing and small distribution applications.
Get A Quote
D9020 Terminal Junction Box Wall Mount Outdoor Waterproof PC Enclosure 88x88x53
KRIPAL Terminal Junction Box combines robust engineering with practical functionality for demanding industrial applications.
Ask a Quote
D9065 Terminal Junction Box Wall Mount Outdoor Waterproof PC Enclosure 139x119x70
KRIPAL Terminal Junction Box combines robust engineering with practical functionality for demanding industrial applications.
Ask a QuoteTerminal Junction Box Selection for Cable Connections and Equipment Housing
A terminal junction box is a weatherproof enclosure that provides a protected space for electrical connections, whether simple cable-to-cable terminations, multi-cable distribution through terminal blocks, or housing for small control devices such as relays, timers and network switches. The IP65 or IP67 rating protects the internal connections from water, dust and mechanical damage, making the junction box suitable for outdoor installation and indoor wet or dusty areas. This selection guide covers enclosure material, size, IP rating, cable entry configuration and internal mounting options.
UKW6 Terminal Junction Box Series Technical Specifications
Enclosure Material Selection: ABS vs Polycarbonate
The UKW6 ABS (Acrylonitrile Butadiene Styrene) version provides a good balance of mechanical strength, chemical resistance and cost for general indoor and sheltered outdoor applications. It has an impact resistance of IK07 (2 Joules) and a continuous operating temperature range of minus 25 to plus 60 degrees Celsius. The polycarbonate version provides superior impact resistance (IK08, 5 Joules), wider temperature range (minus 40 to plus 80 degrees Celsius), and better UV resistance (retains 90 percent of mechanical properties after 2000 hours of QUV accelerated weathering). Polycarbonate is recommended for: outdoor installations in direct sunlight, environments with risk of mechanical impact (forklift traffic, falling objects), locations with extreme temperature cycling, and applications requiring transparency (the polycarbonate cover is available in clear for visual inspection of internal components without opening the enclosure).
IP Protection Level: IP65 vs IP67
IP65 (dust-tight, protected against water jets) is suitable for most outdoor and industrial applications where the enclosure is mounted on a wall or structure and not subject to immersion. IP67 (dust-tight, protected against temporary immersion in water up to 1 meter depth for 30 minutes) provides an additional level of protection for installations where temporary flooding is possible: cable trenches, basement walls, outdoor ground-level mounting. The IP67 UKW6 uses a silicone foam gasket with a higher compression ratio and additional cover screws for increased sealing force. The cable entry glands must also be IP68 rated to maintain the overall enclosure IP rating. Note that IP67 does not imply the enclosure is suitable for continuous immersion; for underwater applications, a specialized submersible enclosure is required.
Cable Entry and Internal Mounting
The UKW6 enclosure base has pre-marked knockout positions on all four sides and the bottom face for cable entry. The knockouts are sized for standard metric cable glands: M12, M16, M20, M25, M32 and M40, with the specific knockout pattern depending on the enclosure size. The knockouts are removed using a screwdriver or knockout punch; alternatively, the gland holes can be drilled to size if a non-standard gland is required. Inside the enclosure, molded bosses with pre-drilled holes accept self-tapping screws for mounting a DIN-rail, a terminal block mounting plate or a metal backplate. The enclosure base includes external mounting lugs with pre-drilled holes for wall or surface mounting, and the lugs are positioned outside the enclosure seal area so that mounting does not compromise the IP rating.
Condensation Management and Venting
All sealed enclosures are subject to internal condensation as the internal air temperature and humidity change with the external ambient conditions. The UKW6 addresses this with an optional pressure equalization vent (Gore-Tex membrane) that allows air and water vapor to pass while blocking liquid water and dust. The vent equalizes the internal and external pressure, reducing the thermal pumping effect that draws moist air into the enclosure through imperfect seals. For enclosures in high-humidity environments, a desiccant pack can be placed inside the enclosure to absorb moisture, with the desiccant replaced during periodic maintenance. For enclosures that will be opened frequently, the vent is strongly recommended to reduce the time required for internal condensation to clear after the cover is replaced.
Specify Junction Boxes for Your Installation
- Box Selection: Provide your cable sizes, quantity and installation environment for a UKW6 model and material recommendation.
- Custom Machining: We can machine cable entry holes and mount DIN-rails at the factory for your specific configuration.
- Bulk Supply: Source UKW6 enclosures in volume for your electrical contracting or panel building business.
Cable Connection Protection for Outdoor, Industrial and Infrastructure Applications
KRIPAL UKW6 terminal junction boxes provide weatherproof enclosures for electrical connections in every sector of industry and infrastructure. From the small sensor connection box on a factory machine to the large distribution junction box on a street lighting circuit, the UKW6 protects electrical connections from water, dust and mechanical damage.
Industrial Sensor and Actuator Connection
Factory automation systems use compact UKW6 junction boxes to connect field sensors (proximity switches, photoelectric sensors, limit switches) and actuators (solenoid valves, indicator lights) to the control system. The box houses terminal blocks for connecting the field device cables to the multi-core control cable, with the IP65 enclosure protecting the connections from coolant, oil mist and dust on the machine.
Street and Area Lighting Circuit Junction
Street lighting circuits use UKW6 junction boxes at the base of each lighting column for connecting the supply cable to the luminaire cable. The IP67 polycarbonate box withstands ground-level exposure to rain, snow, road salt spray and occasional temporary immersion in flooded cable trenches. The box includes a fuse holder and terminal block for the luminaire connection.
Solar PV Array Cable Junction
Photovoltaic installations use UKW6 junction boxes for DC cable connections between string cables and the feeder cable to the inverter. The UV-stabilized polycarbonate enclosure withstands rooftop or ground-mount exposure, and the IP65 rating protects the DC connections from rain and dust. The box is sized to accommodate the required number of cable glands for string entry and feeder exit.
Building Services Cable Distribution
Commercial and industrial buildings use UKW6 boxes for cable junction and distribution in plant rooms, ceiling voids and external wall mounting. The boxes house terminal blocks for power and control cable terminations, with the IP65 enclosure protecting the connections in dusty plant rooms and outdoor wall locations. Clear-cover polycarbonate versions allow visual inspection of terminal connections without opening the box.
Water and Wastewater Plant Field Connections
Water treatment plants use UKW6 IP67 boxes for field instrument and actuator connections in wet wells, filter galleries and chemical dosing areas. The enclosure protects the connections from water spray, high humidity and occasional immersion during flooding or tank overflow events. The polycarbonate material resists the chemicals used in water treatment.
Specify Your Junction Box Requirements
- Application Review: Our engineers review your cable and environment specifications and recommend the UKW6 box size and material.
- Custom Machining: We can pre-machine cable entries and mount terminal blocks at the factory for your convenience.
- Bulk Supply: Source UKW6 enclosures in volume for your project or ongoing requirements.
KRIPAL Terminal Junction Box Manufacturing: Weatherproof Connection Protection
KRIPAL terminal junction boxes are manufactured in a dedicated enclosure fabrication and assembly facility where the IP66 ABS or polycarbonate enclosure is molded, the DIN-rail mounted terminal blocks are fitted, and cable gland entries are machined. Each junction box undergoes an IP integrity test and terminal torque verification for global cable connection and distribution applications in industrial and outdoor environments.
IP66 Enclosure Molding with Integrated Mounting Features
Enclosures are injection-molded from UV-stabilized ABS or polycarbonate with integrally molded external mounting feet, internal DIN-rail mounting bosses, and a tongue-and-groove sealing interface with a continuous EPDM gasket. Wall thickness is uniform within plus or minus 0.2mm verified by ultrasonic measurement on sample enclosures from each molding batch.
DIN-Rail Terminal Block Assembly and Torque Verification
Terminal blocks are mounted on standard 35mm DIN rail with end stops and partition plates as required. Each terminal screw is torque-verified to the manufacturer’s specified tightening torque using a calibrated torque screwdriver. Terminal identification markings are applied per the wiring schedule, and sample terminals undergo pull-force testing on connected conductors.
Cable Gland Entry Machining and Sealing
Cable entry holes are CNC-machined and fitted with nylon or metal cable glands with neoprene sealing gaskets. The gland size is selected for the specified cable diameter range. Each assembled junction box with glands and blanking plugs installed undergoes an IP66 water-jet test (100 liters per minute at 3 meters distance for 3 minutes) to verify complete sealing integrity.
Earth Continuity and Terminal Block Testing
Earth continuity is verified from each metal cable gland (if fitted) and from the enclosure earth terminal to a common earth point, with resistance below 0.1 ohms. Terminal block insulation resistance is measured between adjacent terminals and between terminals and the enclosure at 500V DC, with a minimum acceptable value of 5 megaohms for new, clean assemblies.
Distributor Stock Holding Programs for Junction Boxes
KRIPAL supports distributor inventory programs with agreed stock levels for popular enclosure sizes and terminal configurations. Empty enclosures, pre-fitted terminal rail assemblies, and custom-configured junction boxes with glands are all available for distributor fulfillment.
Private Label and OEM Branding for Junction Boxes
Custom enclosure labeling with your branding, OEM part numbering, and project-specific terminal schedules and wiring diagrams are available. Neutral-packaged supply is provided for private label programs.
Multi-Region Certification and Compliance Support
CE, UKCA, and IEC 60670-1 EN 60670-1 compliance documentation is provided according to target export markets. Glow-wire test reports (650 or 850 degrees Celsius per IEC 60695-2-11) and IP66 test certificates are available for regulatory submissions.
Direct Technical Access to KRIPAL Assembly Engineers
Your technical team communicates with the engineers who designed and assembled your terminal junction boxes. Application questions including terminal selection for specific cable sizes, enclosure material selection for chemical environments, and custom configuration requirements receive answers within 24 hours during China business hours.
Frequently Asked Questions
Explore FAQ >Calculate based on the terminal block length, number of cables entering the box and bending radius requirements. Allow 30% spare internal volume for future additions.
ABS is cost-effective for indoor and sheltered outdoor use. Polycarbonate offers better UV resistance and impact strength for direct outdoor sun-exposed installations.
Yes, enclosure walls are designed for field drilling of additional cable gland entries using standard hole saws. Ensure IP-rated cable glands are used to maintain the enclosure's IP66 rating.
