Switched Interlocked Industrial Sockets | CEE Mechanical Interlock Sockets
Industrial Plug and Socket - Switched Interlocked Socket
KRIPAL manufactures premium switched interlocked industrial sockets that integrate an IEC 60309 socket outlet, a rotary load-break switch, and a robust mechanical interlock inside a heavy-duty IP-rated enclosure. The mechanical interlock ensures fail-safe operation: the switch cannot be turned ON until a plug is fully inserted, and the plug cannot be withdrawn while the switch is in the ON position—eliminating arcing risks during make-and-break operations.Available in 16A, 32A, 63A, and 125A ratings with 3-pole, 4-pole, and 5-pole (2P+E, 3P+E, 3P+N+E) configurations. Built with IP44 or IP67 weatherproof protection, compact or modular enclosures with DIN rail options, KRIPAL switched interlocked sockets deliver maximum electrical safety for harsh industrial environments, power distribution boards, and heavy machinery.
Get A Quote

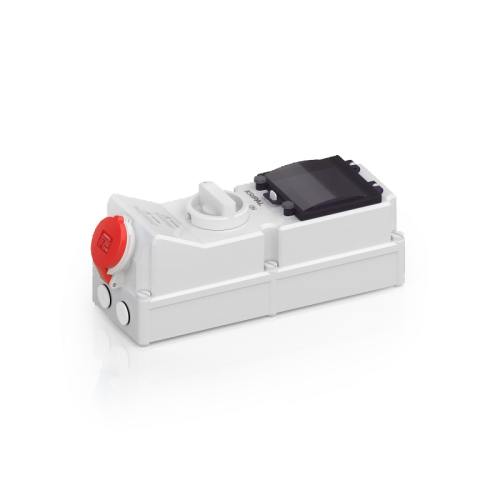

UKS-O IP44 CEE Switched Socket 3P/4P/5P Industrial Interlock Socket 16A/32A With DIN Rail
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

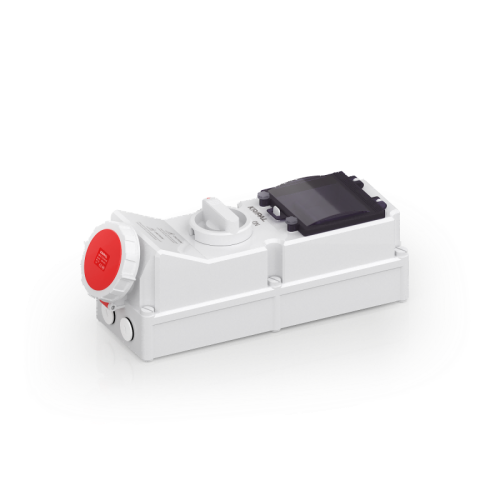

UKS-O IP67 CEE Switched Socket 3P/4P/5P Industrial Interlock Socket 16A/32A With DIN Rail
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

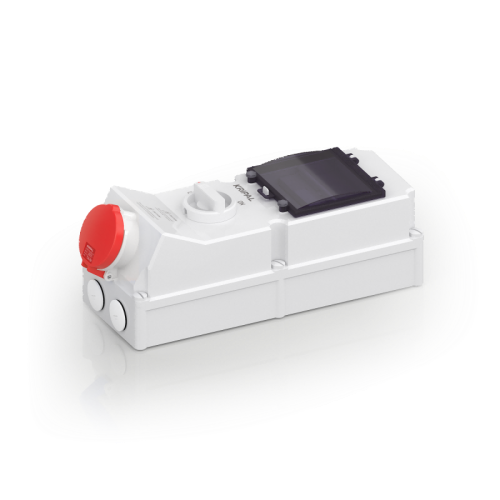

UKS-O IP44 CEE Switched Socket 3P/4P/5P Industrial Interlock Socket 63A With DIN Rail
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

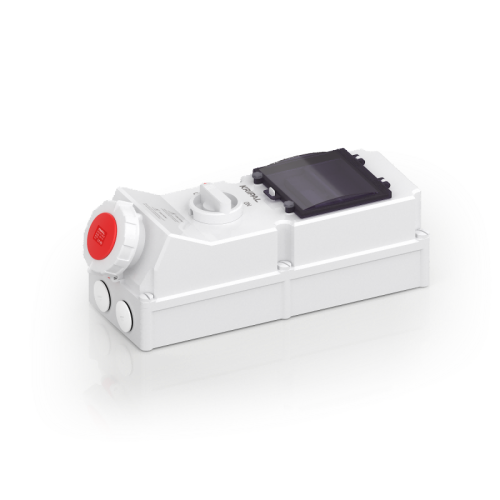

UKS-O IP67 CEE Switched Socket 3P/4P/5P Industrial Interlock Socket 63A With DIN Rail
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

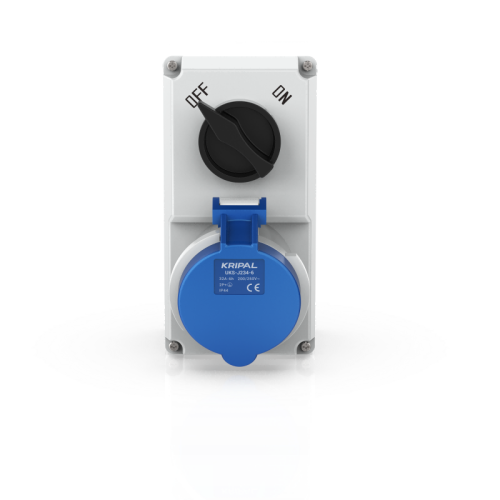

UKS-J IP44 CEE Switched Socket 3P/4P/5P Industrial Interlock Socket 16A/32A CE Certified
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

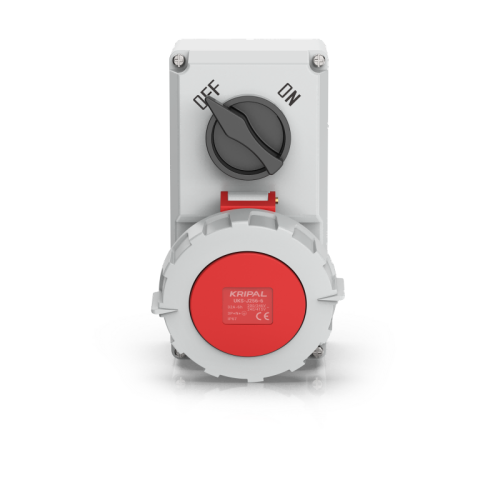

UKS-J IP67 CEE Switched Socket 3P/4P/5P Industrial Interlock Socket 16A/32A CE Certified
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

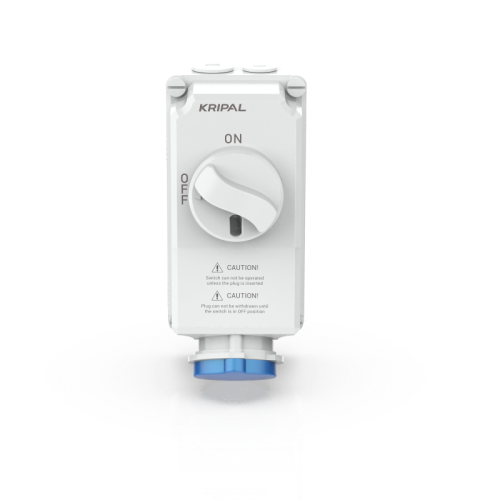

UKS-I IP44 CEE Switched Socket 3P/4P/5P Industrial Interlock Socket 16A/32A/63A CE Certified
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

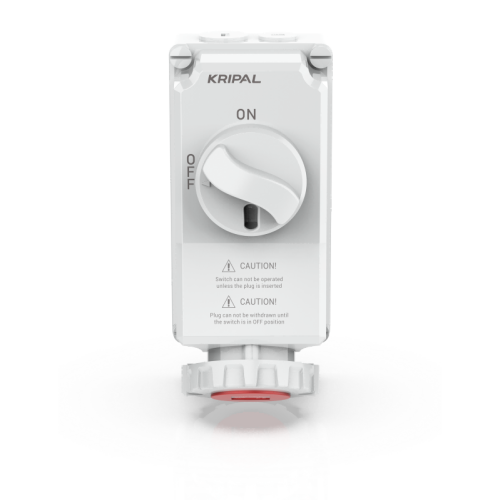

UKS-I IP67 CEE Switched Socket 3P/4P/5P Industrial Interlock Socket 16A/32A/63A CE Certified
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a QuoteSwitched Interlocked Socket Selection Guide

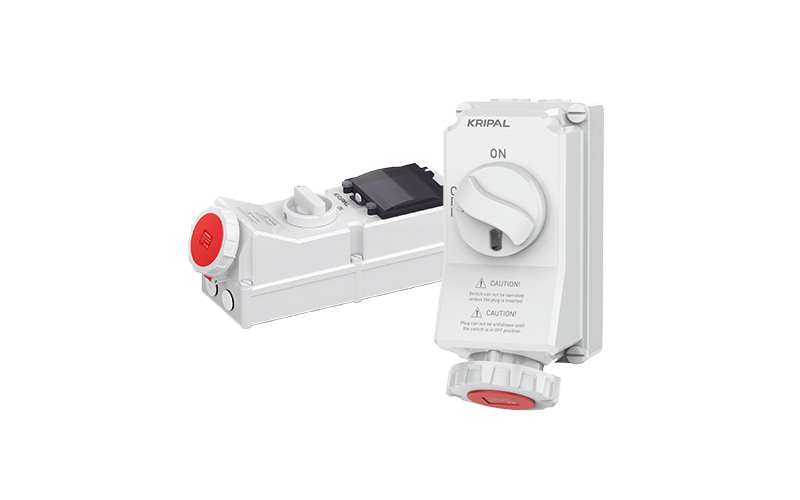

A switched interlocked socket integrates a rotary load-break switch with a mechanical interlock that physically blocks plug insertion and removal when the circuit is energized. This provides maximum operator safety for heavy equipment connections where making or breaking under load could create an arc flash hazard or damage connector contacts. KRIPAL manufactures the UKS series switched interlocked sockets for demanding industrial, commercial, and infrastructure applications.
Switch and Interlock Technical Specifications
Mechanical Interlock Operation Sequence
The interlock enforces a strict, fail-safe operating sequence: insert the plug with switch OFF, rotate handle to ON to energize, rotate handle back to OFF to de-energize, and finally remove the plug. The mechanism physically prevents the switch from turning ON without a fully seated plug, and locks the plug securely in place while the switch remains in the ON position.
Load-Break Switch Ratings and AC-23 Duty
The integrated rotary switch is engineered to AC-23A utilization category, making it fully capable of safely switching motor loads and highly inductive circuits at full rated current. Switch current ratings span from 16A to 125A, perfectly matched with the socket outlet capacity. The mechanism features a snap-action contact system that ensures rapid make-and-break performance independent of operator handle speed.
Enclosure Construction and IP Protection
The complete assembly is housed in a heavy-duty, impact-resistant thermoplastic enclosure rated for IP44 or IP67 ingress protection according to IEC 60309 standards. The rotary switch operates through a sealed shaft gland to maintain full weatherproofing. Flexible installation is made easy with threaded M-gland entries and pre-formed knockout ports located on the enclosure top, base, and sides.
Surface Mount and Modular DIN Rail Configurations
KRIPAL UKS switched interlocked sockets are primarily designed in surface-mount enclosures for wall, column, or equipment frame installation. Selected models feature extended enclosures with integrated DIN rails behind a transparent window, allowing direct integration of MCBs, RCCBs, or RCBOs right at the socket outlet for localized overcurrent and earth leakage protection.
Specify Your Switched Interlocked Socket Installation
- Download Technical Datasheets & 3D Models: Access complete technical documentation for your installation planning, including AC-23A switch rating curves, mechanical interlock operating diagrams, and detailed dimensional drawings (CAD/PDF) for seamless panel and wall-mount integration.
- Get an Application Safety Review: Our experienced electrical engineers will assess your equipment connection requirements, confirming the precise IP rating (IP44/IP67), current rating (16A–125A), and voltage configuration tailored to your specific load type and operating environment.
- Factory Direct Project Supply: Contact KRIPAL’s export engineering team for volume B2B pricing on multi-unit orders, with flexible production scheduling and delivery aligned to your project’s electrical installation timeline.
Switched Interlocked Socket Safety Applications
KRIPAL switched interlocked sockets deliver complete protection for operators and heavy equipment in environments where making or breaking an electrical connection under load could cause arc flash hazards, contact welding, or premature connector degradation.
Industrial Motor and Pump Connections
Switched interlocked sockets provide a safe, high-reliability power connection for portable pump sets, industrial ventilation fans, and heavy compressor units in manufacturing plants and water treatment facilities. Operators are physically prevented from disconnecting a running motor under load, completely eliminating arc flash risks and contact damage associated with standard non-interlocked connectors.
Food Processing & Chemical Wash-Down Areas
Engineered with IP67 heavy-duty, chemical-resistant thermoplastic enclosures, KRIPAL switched interlocked sockets safely supply conveyor drives, mixing vessels, and packaging machinery in high-hygiene food processing plants. The mechanical interlock ensures that processing equipment is fully isolated before wash-down crews disconnect cables, withstanding daily high-pressure water jets and ambient dampness.
Marina & Caravan Park Shore Power Pedestals
When integrated into marina power pedestals and caravan hook-up posts, switched interlocked sockets offer secure, weather-resistant power supply points for public and commercial spaces. The interlock mechanism ensures the socket remains unenergized until a plug is properly engaged, preventing users from inserting or pulling live plugs and dramatically reducing electric shock hazards in outdoor and wet environments.
Enhance Operator Safety with Interlocked Power Connections
- Safety & Compliance Assessment: Our application engineers evaluate your equipment connection points and recommend switched interlocked socket specifications that fully satisfy local electrical safety codes, OSHA standards, and operator hazard protection requirements.
- Complete Certification & Test Documentation: We provide full compliance documentation for your project files, including CE certification, IEC/EN 60309-2 test reports, AC-23A switch rating verification, and mechanical interlock longevity test documents.
- Project & Bulk Volume Supply: Contact KRIPAL’s export engineering team for tier-one bulk pricing on multi-unit orders, with phased delivery schedules coordinated precisely to your facility construction or plant renovation timeline.
Behind KRIPAL Switched Interlocked Socket Production
KRIPAL manufactures switched interlocked sockets as complete factory-assembled and 100% tested units, integrating the IEC 60309 socket, load-break switch, and mechanical interlock mechanism directly in our Zhejiang manufacturing facility. Every unit undergoes rigorous functional interlock verification before shipment, providing electrical contractors and equipment OEMs with ready-to-install, safety-rated power connection points.
Factory-Assembled and Functionally Tested Units
Every switched interlocked socket leaves our factory as a complete, pre-tested assembly. Functional verification confirms that the interlock physically prevents switch operation without a plug, and locks the plug in place while the switch is ON, before the unit is final-packed for shipment.
ISO 9001 Certified Quality with Mechanical Interlock Cycling
Sample units from each production batch undergo mechanical interlock endurance cycling, verifying seamless operation over thousands of plug insertion, switch rotation, and extraction sequences. Switch contact resistance and dielectric strength are measured before and after cycling to guarantee long-term electrical integrity.
In-House Switch & Socket Vertical Integration
Both the IEC 60309 socket outlet and the rotary load-break switch are manufactured completely in-house at KRIPAL, rather than sourced from separate vendors. This complete vertical integration ensures that the interlock geometry aligns precisely with the socket latch and switch cam profile, eliminating tolerance stack-up issues common in multi-vendor assemblies.
Space-Saving Compact Enclosure Design
The switch, socket, and mechanical interlock mechanism are engineered as a space-optimized assembly within a single heavy-duty IP-rated enclosure. This integrated design occupies significantly less wall space than a separate switch-disconnector and socket combination, completely eliminating the need for external interconnecting wiring.
Project Inventory & Phased Delivery Programs
We maintain agreed safety stock levels at our factory for your standard switched socket configurations. We offer flexible release programs against your project installation schedules, providing phased deliveries that match electrical contractor work packages and job site readiness milestones.
OEM/ODM Private Label & Custom Marking
KRIPAL offers custom part numbers, switch electrical ratings, and safety instruction schematics laser-marked or labeled directly on the enclosure. We also provide custom branded packaging and tailored instruction sheets aligned with your electrical contracting and end-user documentation requirements.
Pre-Shipment Test Documentation & Compliance
Every export shipment includes comprehensive compliance packages: interlock functional test reports, switch rating certificates, Certificates of Origin (CO), and customs-ready packing lists. This documentation directly supports contractor safety compliance and end-user safety file auditing.
Direct Application Engineering for Safety Circuits
Electrical designers and safety engineers communicate directly with KRIPAL technical specialists for interlocked socket selection, load switching duty assessment (AC-23A), and site-specific installation guidance. Eliminating distributor intermediaries ensures fast, accurate technical decisions for safety-critical installations.
