Single Pole Camlock Connectors | High-Current Power Connectors

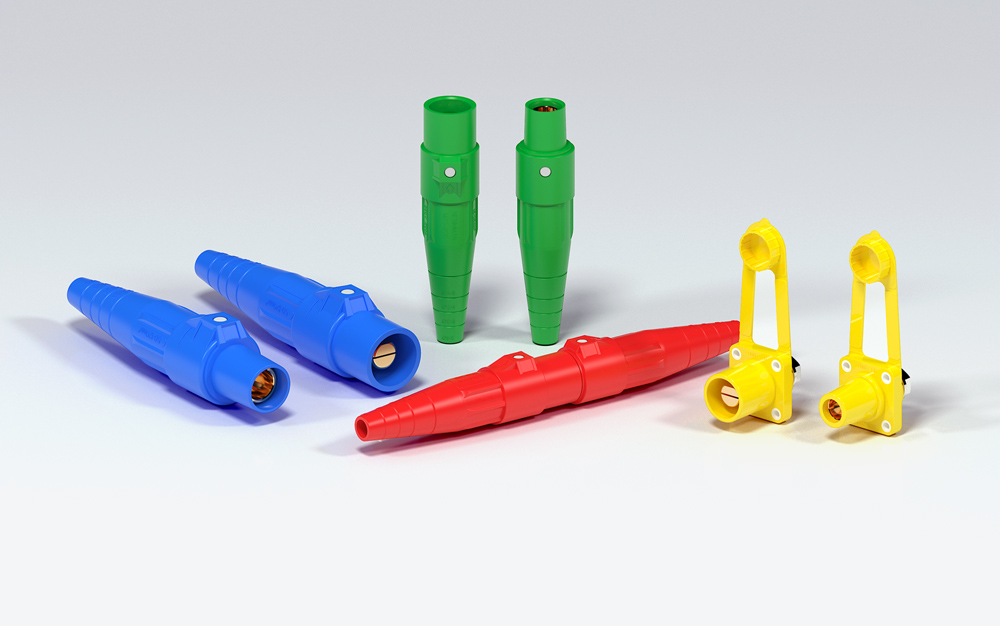

Industrial Plug and Socket - Camlock Connector Single Pole
KRIPAL manufactures heavy-duty single pole camlock connectors designed for secure, high-current temporary power distribution across generator hookups, entertainment stage lighting, and demanding industrial job sites. Built to American standards, these series are offered in 200A (380V) and 400A (600V) ratings with standardized color-coded sleeves (Green, Yellow, Blue, Black, Red) for immediate visual phase identification. Featuring a rugged cam-type locking mechanism, the quick quarter-turn engagement ensures a tight, high-conductivity connection that resists accidental disconnects. Precision-engineered contact terminals reliably accommodate high-capacity copper cables, delivering maximum electrical safety and minimal contact resistance under continuous load.
Get A Quote
Camlock Connector Single Pole 200A High Amper Industrial Plug 380V
UK series Camlock Connector Single Pole offers a robust cam-and-groove connection solution, ideal for a wide range of industrial power applications.
Ask a Quote
Camlock Connector Single Pole 400A High Amper Industrial Plug 600V
The UK series Camlock Connector Single Pole offers a robust cam-and-groove connection solution, ideal for a wide range of industrial power applications.
Ask a Quote
Camlock Connector Single Pole 200A High Amper Cam Receptacle 380V
The UK series Camlock Connector Single Pole offers a robust cam-and-groove connection solution, ideal for a wide range of industrial power applications.
Ask a Quote
Camlock Connector Single Pole 400A High Amper Cam Receptacle 600V
UK series Camlock Connector Single Pole offers a robust cam-and-groove connection solution, ideal for a wide range of industrial power applications.
Ask a QuoteCamlock Connector Selection Guide
A single pole camlock connector provides a reliable high-current connection for individual phase, neutral, or earth conductors in temporary power distribution systems where multi-pole connectors are impractical. Multiple single pole connectors are used in sets to form complete single-phase or three-phase power hookups. KRIPAL offers complete ranges of panel mount receptacles and inline cable connectors for generators, stage lighting, and industrial job sites.
Camlock Connector Technical Specifications
Current Ratings and Conductor Capacity
KRIPAL single pole camlock connectors are available in 200A (380V) and 400A (600V) continuous current ratings. The high-conductivity copper alloy contact body ensures minimal millivolt drop and low heat generation under heavy electrical loads. Heavy-duty contact terminals are precision-engineered to securely accommodate high-capacity copper cables, ensuring long-term contact stability and electrical safety.
Cam-Type Locking Mechanism Operation
Connection is established by mating the male pin into the female socket and completing a quick quarter-turn rotation. The eccentric cam profile pulls the contact interface together under high mechanical tension, delivering a high-conductivity, low-resistance connection that prevents accidental disconnects under vibration or cable pulling. The locked status can be instantly verified visually or by feel.
Color Coding and Phase Identification
Insulating sleeves are manufactured in standardized color-coded options—Green, Yellow, Blue, Black, and Red—conforming to American safety standards for immediate phase, neutral, and ground identification. The high-impact insulating sleeves protect contacts against mechanical wear and environmental exposure on field jobsites.
Panel Mount and Inline Configurations
Male and female panel mount receptacles (UKGZ / UKMZ series) mount securely into equipment cutouts on generator outputs, distribution boxes, and power inlets. Male and female inline cable connectors (UKG / UKM series) terminate flexible power cables for quick extension and interconnectivity. Following standard electrical safety conventions, insulated female sockets are deployed on live supply terminals to protect operators from accidental contact.
Specify Your Camlock Connector Requirements
- Complete Product Specifications: Download detailed dimensional drawings, current rating curves, and cable capacity tables for seamless integration into your system design and panel layouts.
- Application Engineering Support: Our technical engineering team provides expert guidance on single pole camlock connector selection, color-coding standards, and panel mounting configurations tailored to your specific industrial applications.
- Volume & OEM Supply Programs: Contact our export sales team for competitive OEM/bulk pricing, customized packaging, and scheduled supply programs for equipment manufacturers and rental fleet operators.
Camlock Connector Industry Applications
KRIPAL single pole camlock connectors serve as the heavy-duty standard interface for high-current temporary power distribution. Engineered to American standards, they enable rapid, secure connection and disconnection of individual phase, neutral, and ground conductors carrying up to 400 amperes in demanding field environments.
Entertainment Lighting and Stage Power Distribution
400A camlock connectors (600V) are the ultimate choice for connecting mobile generators to dimmer racks, power distribution panels, and stage motor controllers for live concerts, film production sets, and theatrical events. The reliable cam-type locking mechanism allows quick quarter-turn setup and teardown under tight production schedules.
Generator Docking and Load Bank Testing
Panel mount male and female receptacles (UKGZ / UKMZ series) installed on generator panels and transfer switches provide a standard interface for connecting temporary load banks during commissioning and routine maintenance testing. The single-pole configuration offers maximum flexibility when adapting to various generator voltage and phase requirements.
Industrial Temporary Power and Process Equipment Feeds
Both 200A (380V) and 400A (600V) inline connectors (UKG / UKM series) provide safe, flexible power feeds for heavy industrial machinery, portable chillers, and welding equipment during plant turnarounds, facility maintenance, and temporary power supply outages in demanding industrial environments.
Power Your Production with Factory Direct Camlock Supply
- Application-Specific Consultation: Share your high-current power connection requirements and industry application. Our engineering team will recommend the exact camlock ratings, configurations (panel mount or inline), and color-coding schemes tailored to your operational standards.
- Technical & Compliance Documentation: Get full access to detailed dimensional drawings, electrical contact resistance test reports, mechanical endurance data, and compliance documentation for your equipment technical files and certification requirements.
- Volume & OEM Supply Programs: Contact our export sales team for factory-direct volume pricing, custom OEM solutions, and scheduled supply programs optimized for equipment manufacturers and rental fleet operators.
Behind KRIPAL Camlock Connector Manufacturing
KRIPAL manufactures high-performance single pole camlock connectors through integrated CNC machining, specialized contact plating, and precision thermoplastic sleeve moulding at our state-of-the-art facility. Every connector unit undergoes strict contact resistance checks and mechanical locking verification before dispatch, supplying global generator manufacturers, event power equipment rental fleets, and industrial OEMs with long-term, high-current connection reliability.
Precision-Machined High-Conductivity Contacts
Cam pins and female socket bodies are precision CNC-machined from high-conductivity alloy for maximum dimensional tolerance and smooth surface contact. Durable electroplating is applied to ensure low contact resistance and long-lasting corrosion protection. The cam profile is machined to precise eccentric tolerances, delivering optimal mechanical clamping force and low millivolt drop under heavy continuous loads.
Rigorous Quality Control & Thermal Endurance Testing
Our ISO 9001-certified quality control process requires batch testing for contact resistance and full-load temperature rise performance. Cam locking mechanisms are repeatedly cycle-tested to guarantee consistent locking force, tactile engagement feedback, and uncompromised electrical integrity over their operating lifespan.
Replaceable Color Sleeve Design for Field Flexibility
The high-impact insulating color sleeve is a separate moulded component that can be easily replaced in the field without special tools. This modular design allows equipment rental houses and electrical contractors to quickly adapt phase color coding for specific job sites or replace worn sleeves while retaining the core conductor assembly.
Reliable Terminal Designs for Quick Installation
KRIPAL camlock connectors feature high-torque clamping terminal structures that accommodate flexible multi-strand copper cables securely. Precision-engineered screw and terminal arrangements prevent wire damage under thermal expansion, maintaining maximum electrical conductivity across full rated current capacities (200A/400A).
Rental Fleet Stock and Fleet Replacement Programs
To support power distribution rental operators and equipment hire fleets, KRIPAL maintains strategic buffer inventory across high-demand camlock connector configurations and standard color codes. Replacement units integrate seamlessly into existing equipment fleets, maintaining uniform connector mating performance across mixed-age inventories.
Private Label, Custom Branding & Color Matching
We provide tailored OEM services, including custom insulating sleeve colors beyond standard phase schemes, laser-engraved corporate branding on connector shells, customized packaging, and unique part numbering for streamlined rental fleet tracking and asset management.
Comprehensive Compliance & Export Documentation
All overseas shipments can be accompanied by factory quality inspection reports, current rating certificates, Certificates of Origin (CO), and customs-ready packing documentation. Our complete technical documentation package simplifies type-approval processes for generator OEMs and stage lighting distribution builders.
Direct Factory Technical Support
System engineers, panel builders, and fleet procurement managers communicate directly with KRIPAL application engineers. We offer direct factory support for product selection, panel cutout design guidance, and custom power distribution solutions without distributor delays.
Frequently Asked Questions
Explore FAQ >Recent Blog
Explore Blog >

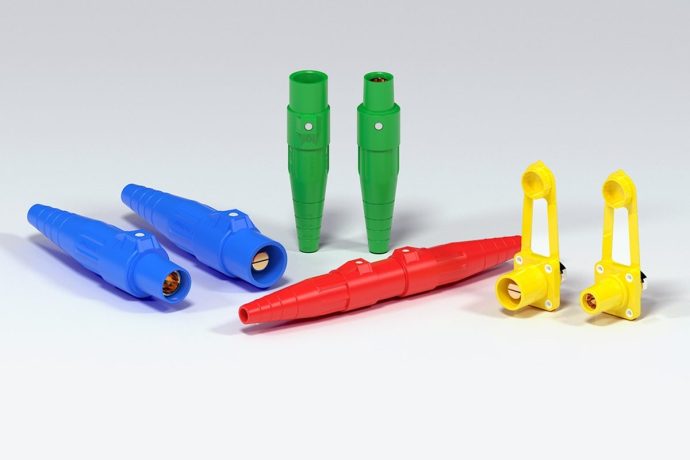

What Are Cam Lock Connectors? A 200A/400A Guide for Power Distribution
