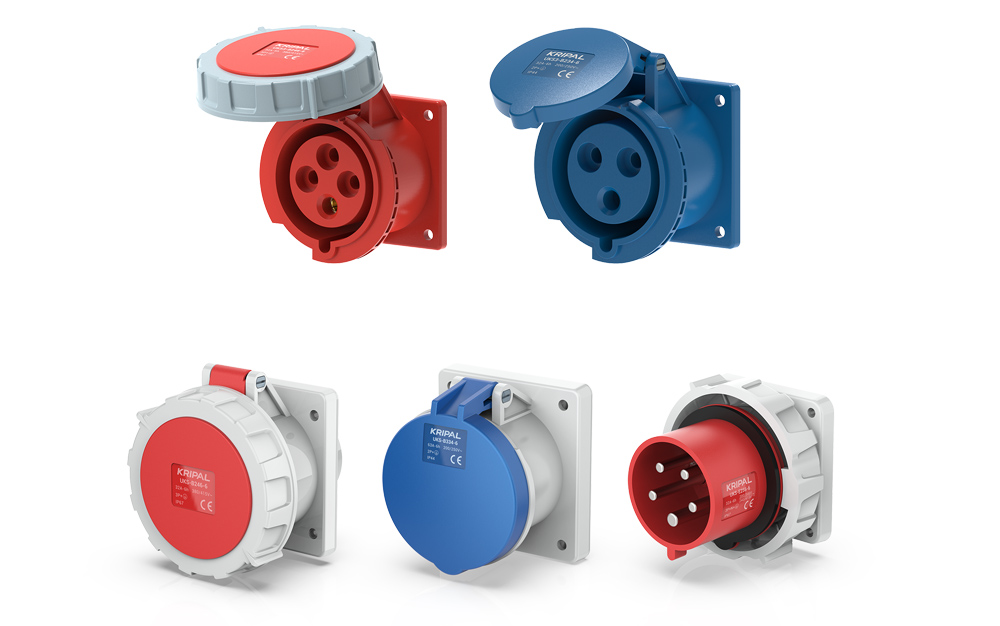

Industrial Plug and Socket-Panel Mounted Plug and Socket
KRIPAL manufactures panel mounted industrial plugs and sockets designed for integration into distribution boards, machinery control panels, generator housings and equipment enclosures. Available as flange mount plugs (male) and panel mount sockets (female) in 16A, 32A, 63A and 125A ratings with 3-pole, 4-pole and 5-pole configurations per IEC 60309. IP44 and IP67 enclosure options seal against dust and moisture at the panel cutout interface, providing a robust external power connection point while maintaining the enclosure environmental rating.
Get A Quote

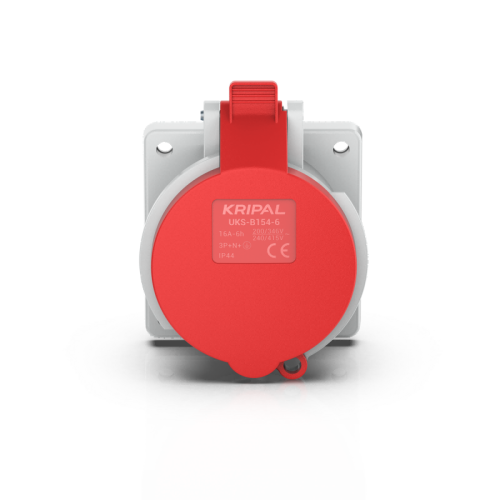

UKS-B IP44 Panel Mount 3P/4P/5P Industrial Power Socket 16A/32A/63A CEE Socket
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote
UKS-B IP67 Panel Mount 3P/4P/5P Industrial Power Socket 16A/32A/63A CEE Socket
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

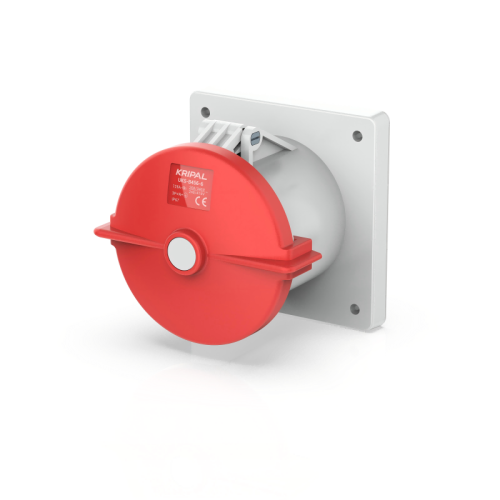

UKS-B IP67 Panel Mount 3P/4P/5P Industrial Power Socket 125A CEE Socket
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

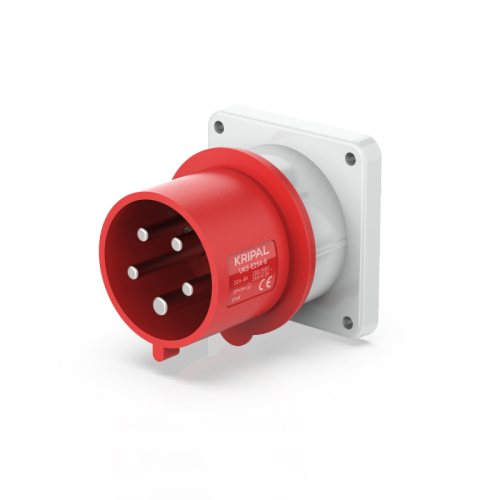

UKS-E IP44 Panel Mount 3P/4P/5P Industrial Power Plug 16A/32A CEE Plug
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

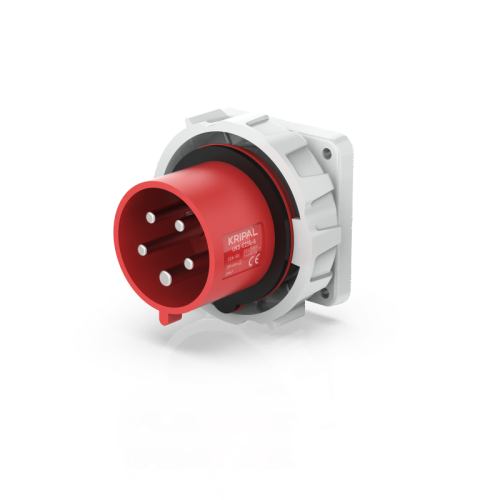

UKS-E IP67 Panel Mount 3P/4P/5P Industrial Power Plug 16A/32A CEE Plug
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

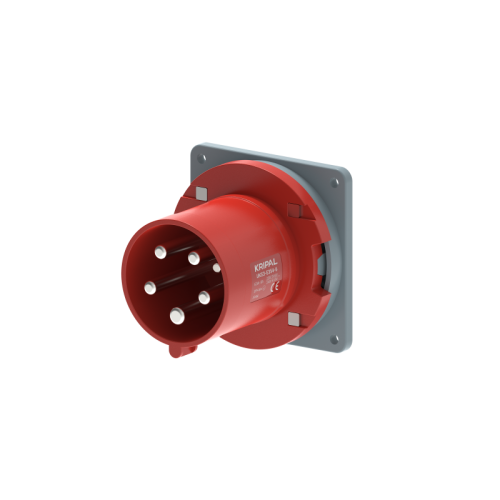

UKS3-E IP44 Panel Mount Industrial Power Plug 3P/4P/5P 63A CEE Plug
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

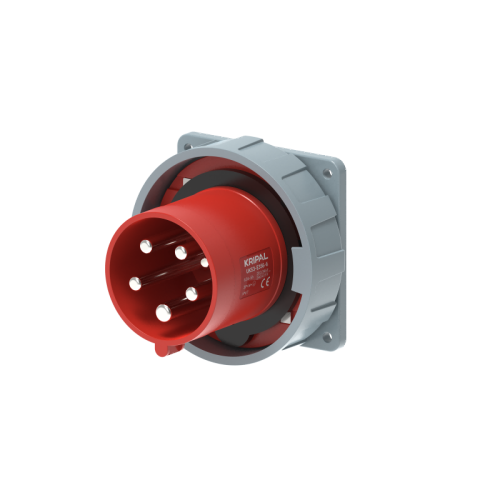

UKS3-E IP67 Panel Mount Industrial Power Plug 3P/4P/5P 63A CEE Plug
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

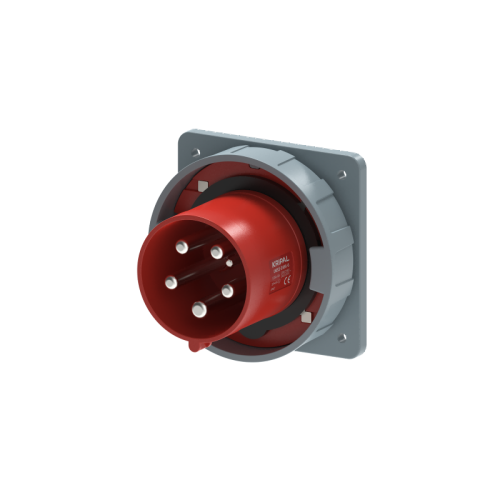

UKS3-E IP67 Panel Mount Industrial Power Plug 3P/4P/5P 125A CEE Plug
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a Quote

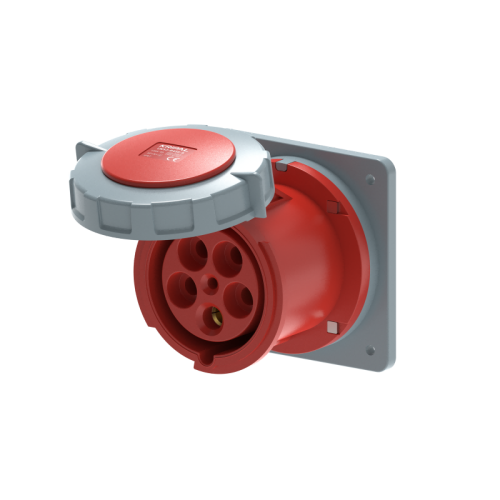

UKS3-B IP67 Panel Mount Industrial Power Socket 3P/4P/5P 125A CEE Socket
KRIPAL- Industrial Panel-mounted Socket ensures safety with colour-coded voltage, mistake-proof insertion, and high IP ratings.
Ask a QuotePanel Mounted Socket Selection Guide
A panel mounted industrial socket or plug integrates directly into an equipment enclosure, distribution board or machinery housing, providing an externally accessible IEC 60309 power interface while maintaining the enclosure IP protection rating. KRIPAL manufactures both flange mount plugs and panel mount sockets engineered for straightforward cutout installation and reliable long-term sealing at the panel interface.
Mounting and Configuration Options
Flange Mount Plug: Panel Feed-Through Input
The flange mount plug presents male pins on the external face of the panel, functioning as a power inlet point. A mating female connector from the supply cable connects from outside. The square or rectangular flange bolts to the panel interior with pre-drilled mounting holes and an integrated sealing gasket that compresses against the panel inner surface.
Panel Mount Socket: External Power Output
The panel mount socket presents female contacts on the external face, serving as a power outlet point integrated into the enclosure. Equipment operators connect a male plug from outside. Common applications include generator output panels, welding machine connections and site distribution board outgoing feeders.
Cutout Dimensions and Panel Preparation
Each panel mount connector requires a specific rectangular or circular cutout dimension in the enclosure wall. KRIPAL provides detailed 2D cutout drawings with tolerances for each current rating. Panel thickness must be between 1.5mm and 4mm for standard flange gaskets to achieve the rated IP seal. Thicker panels require a spacer gasket.
IP Sealing at the Panel Interface
The flange gasket compresses between the connector body and the inner panel surface when mounting bolts are torqued to specification. IP44 connectors achieve splash protection at the panel cutout; IP67 connectors maintain dust-tight and immersion-proof sealing. Proper gasket compression and clean, burr-free cutout edges are essential for maintaining the rated IP protection level.
Integrate Panel Mount Connectors into Your Design
- CAD Cutout Drawings: Download panel cutout dimensional drawings with tolerances for integration into your enclosure design in EPLAN, AutoCAD Electrical and SolidWorks.
- IP Sealing Verification: Our engineers review your panel material, thickness and cutout preparation method to confirm achievable IP protection level at the flange interface.
- OEM Integration Programs: Contact our export team for factory direct pricing on production volumes with delivery coordinated to your panel assembly schedule.
Panel Mounted Connector Integration Scenarios
KRIPAL panel mounted plugs and sockets provide externally accessible IEC 60309 power interfaces on equipment enclosures, distribution boards and generator housings, maintaining the enclosure environmental rating while enabling quick connect and disconnect of supply or load cables.
Generator Set Power Output Panels
Panel mount sockets integrated into diesel generator canopy doors provide the external power outlet interface. Site electricians connect a mating plug from the distribution cable without opening the generator enclosure, maintaining weather protection during outdoor generator operation.
Site Distribution Board Incoming and Outgoing Connections
Flange mount plugs serve as the incoming supply inlet on portable site distribution boards, while panel mount sockets provide outgoing feeder connections to downstream equipment. The panel integration keeps all cable connections external for rapid deployment and pack-up during site relocation.
Industrial Machinery and Welding Equipment Enclosures
Panel mount plugs on machine tool control cabinets and welding rectifier housings provide the power inlet point. The flange seal maintains the enclosure IP rating while the external connector interface allows quick disconnection for machine relocation or maintenance without opening sealed electrical compartments.
Design Your Panel with Integrated Power Interfaces
- Enclosure Integration Support: Send us your enclosure drawing and our engineers recommend the optimal connector type, cutout position and mounting method for each power interface point.
- IP Compliance Documentation: CE and IEC 60309 certificates plus panel interface sealing verification reports for your enclosure certification technical file.
- Production Volume Supply: Contact our export team for OEM pricing with just-in-time delivery scheduling aligned to your panel assembly production line.
Behind KRIPAL Panel Connector Manufacturing
KRIPAL manufactures panel mounted plugs and sockets in the same production facility as the complete UKS range, ensuring identical contact geometry and sealing performance whether the connector is surface mounted, panel mounted or in-line. This unified production supports panel builders and equipment OEMs with consistent quality and single-source logistics.
Identical Contact System Across All Mounting Types
Panel mount connectors share the exact same brass contact pins, sleeves and insertion geometry as wall mount and in-line versions. This ensures a plug from any KRIPAL product line mates correctly with a KRIPAL panel socket, providing procurement flexibility for electrical contractors servicing mixed installations.
ISO 9001 with Panel Interface Sealing Verification
Production batches include sample testing where connectors are mounted on representative panel plates and subjected to IP44 spray or IP67 immersion tests. Flange flatness and gasket compression force are verified to ensure the panel interface achieves the rated IP protection level in real installation conditions.
Complete Panel Cutout Documentation
Every panel mount connector is supplied with detailed 2D cutout drawings including tolerances for rectangular and circular panel openings. Documentation covers recommended panel thickness range, gasket compression specifications and mounting bolt torque values for achieving the rated IP seal.
Mixed Mounting Type Export Shipments
Combine panel mount plugs and sockets with wall mount sockets and in-line connectors on one purchase order. Consolidated container loading reduces per-unit freight costs and simplifies warehouse receiving compared to splitting mounting types across different supplier orders.
OEM Volume Stock Buffer Programs
Maintain agreed inventory levels at our Zhejiang facility for your standard panel connector configurations. Release against rolling production forecasts with guaranteed emergency stock access for sudden production line demand increases.
Private Label with Laser Marked Flange Housing
Custom part numbers, ratings and specifications laser marked on the connector flange body. Branded packaging configured for your panel assembly kitting workflow and spare parts identification system.
Export Documentation for Panel Builder Imports
Container shipments include functional test reports, certificates of origin and customs-ready packing lists. Documentation supports both panel builder production imports and electrical wholesaler distribution warehouse receiving.
Direct Panel Integration Engineering Support
Panel designers communicate directly with KRIPAL engineers for connector selection, cutout dimension verification and IP sealing method guidance specific to your enclosure material and wall thickness. No distributor intermediary delaying technical answers.
Frequently Asked Questions
Explore FAQ >A panel mounted industrial plug or socket is an IEC 60309 connector designed for integration into an equipment enclosure, distribution board or machinery housing panel. It mounts through a cutout with a flange and gasket seal, providing an externally accessible power interface while maintaining the enclosure IP protection rating. KRIPAL offers flange mount plugs (male, for power inlet) and panel mount sockets (female, for power outlet) from 16A to 125A.
A flange mount plug presents male contact pins on the external face of the panel, functioning as a power inlet where the supply cable with a female connector attaches from outside. A panel mount socket presents female contacts externally, serving as a power outlet where equipment with a male plug connects. Choose based on whether the panel interface receives power or delivers power.
Each panel mount connector requires a specific cutout dimension that varies by current rating. KRIPAL provides detailed 2D drawings with exact cutout sizes and tolerances. Standard panel thickness should be between 1.5mm and 4mm for the flange gasket to achieve the rated IP seal. Contact our engineering team for your specific connector cutout drawing.
The connector flange includes an integrated neoprene gasket that compresses against the inner panel surface when mounting bolts are tightened. Critical factors are a clean burr-free cutout edge, flat panel surface around the cutout, and correct mounting bolt torque applied evenly across all fixing points.
Yes. KRIPAL IP67 panel mount connectors maintain dust-tight and immersion-proof sealing at the panel interface when correctly installed. Specify IP67 versions for outdoor generator housings, site distribution boards and marine equipment exposed to rain and hose-down cleaning.
KRIPAL panel mount plugs and sockets are available in 16A, 32A, 63A and 125A ratings with 3-pole (2P+E), 4-pole (3P+E) and 5-pole (3P+N+E) configurations. IP44 and IP67 protection levels are available across all combinations.
Panel mount connectors have screw terminals on the rear face inside the enclosure. Wire according to terminal markings: L1, L2, L3 for phases, N for neutral (5-pole only) and the earth symbol. Use cable cross-sections appropriate for the connector current rating and tighten terminals to the specified torque.
Yes. KRIPAL provides private label panel mount connectors with your part numbers laser marked on the flange housing. Custom packaging with kitting configurations matched to your panel assembly workflow is standard for OEM programs. Contact our export team for minimum order quantities and lead time estimates.
Direct from Manufacturer
