Waterproof Sockets IP66 | 16A-63A | Industrial Outdoor Power Connection
Outdoor Waterproof Switch-Waterproof Socket
KRIPAL manufactures IP66 waterproof socket outlets in the UKW3 series for industrial and outdoor power connection applications. These single socket outlets accept standard IEC 60309 industrial plugs and provide a weatherproof power connection point rated for continuous outdoor service. Available in rated currents from 16A to 63A at 230/400V AC with 2P+E, 3P+E and 3P+N+E configurations, the UKW3 features an angled socket face that directs the connected cable downward, reducing water ingress along the cable and minimizing the bending radius at the plug entry. The enclosure is molded from UV-stabilized, impact-resistant engineering thermoplastic with a hinged cover that seals against the enclosure body when closed, maintaining the IP66 rating whether a plug is inserted or the socket is empty. Cable entry is via IP68 glands on the enclosure bottom face, and the enclosure includes integral mounting lugs for surface mounting. Certified to IEC 60309-1 and IEC 60309-2, KRIPAL waterproof sockets are installed on construction sites, at marinas and docks, in outdoor processing areas, at sports venues and in any location requiring a weatherproof single-outlet power connection point.
Get A Quote

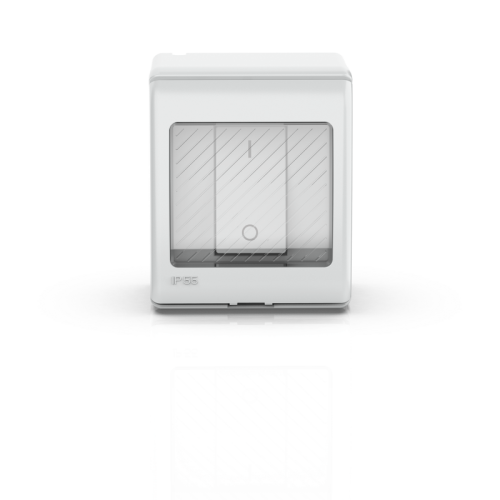

UKW IP55 Weatherproof Switch Socket 250V Electrical Outlet 1/2/3/4 Gang
KRIPAL UKW Series Switch and Socket Outlets offer versatile and robust electrical solutions for diverse installation requirements.
Ask a Quote
56SO Weatherproof Socket Outlet 250V 10A 3 Flat PIN IP66 Surface Mount
KRIPAL 56SO Series 250-500V Socket Outlets feature a patented transparent hinged cover that automatically snaps shut and locks securely when the plug is withdrawn
Ask a Quote

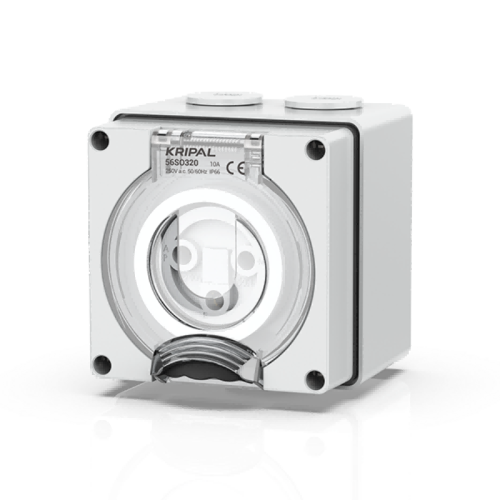

56SO Weatherproof Socket Outlet 250V 20A 3 Round PIN IP66 Surface Mount
This innovative design ensures complete protection against dust and high-pressure water jets.
Ask a Quote
56SO Weatherproof Socket Outlet 500V 50A 5 Round PIN IP66 Surface Mount
KRIPAL 56SO Series 250-500V Socket Outlets feature a patented transparent hinged cover that automatically snaps shut and locks securely when the plug is withdrawn
Ask a QuoteWaterproof Socket Selection for Outdoor Industrial Power
A waterproof socket outlet provides an IEC 60309 standard power connection point in an IP66 weatherproof enclosure, suitable for outdoor and wet-area applications where a standard indoor socket would not be adequately protected. Unlike a combination switched socket, a waterproof socket does not include an integral switch, making it suitable for circuits where the isolation point is elsewhere (for example, at the distribution board). The angled socket face design directs the cable downward, minimizing water ingress along the cable and reducing strain on the plug and cable. This selection guide covers current rating, pole configuration, enclosure protection and installation.
UKW3 Waterproof Socket Series Technical Specifications
IEC 60309 Socket Compatibility and Rating
The UKW3 socket conforms to IEC 60309-2, accepting standard industrial plugs in the matching current rating and voltage color code. The socket is available in blue (230V) and red (400V) with the standard 6h earth pin position for 50/60 Hz systems. The socket contacts are brass with a silver flash plating for low contact resistance and corrosion resistance. The contact spring system is designed to maintain the specified contact force (minimum 3 Newtons for 16A, 5 Newtons for 32A, 10 Newtons for 63A) throughout the socket’s rated mating cycles (5000 operations). The socket IP rating is IP66 when a correctly rated plug is fully inserted, with the plug-to-socket interface forming a labyrinth seal that prevents water ingress along the plug body.
Angled Socket Face and Cable Management
The UKW3 socket face is angled downward at approximately 20 degrees from the vertical, directing the connected cable downward and outward from the enclosure. This angle provides three benefits: water running down the cable jacket drips off at the lowest point rather than pooling at the plug-to-socket interface; the cable exits the socket with a gentle bend radius that minimizes strain on the plug contacts and cable conductors; and the enclosure cover can be partially closed over an inserted plug in some models, providing additional weather protection while the socket is in use. The socket is mounted in the enclosure with the contact tubes oriented slightly downward, so that any condensation inside the enclosure drains away from the contact area.
Cover Sealing and Weather Protection
The UKW3 enclosure cover is hinged at the top and closes against a silicone foam gasket around the enclosure opening. When closed (no plug inserted), the cover maintains the IP66 rating, and a captive screw secures the cover in the closed position. The cover can also be padlocked closed for security. When a plug is inserted, the cover rests against the plug body and provides partial weather protection from above. The enclosure includes a Gore-Tex pressure equalization vent that allows air pressure equalization as the enclosure heats and cools, preventing the thermal pumping effect that draws moist air into the enclosure through imperfect seals. The cable entry glands on the enclosure bottom face are IP68 rated when correctly tightened onto the supply cable.
Installation and Mounting Versatility
The UKW3 enclosure includes integral mounting lugs with pre-drilled holes for M6 or M8 fixings, suitable for wall, post, bollard or equipment frame mounting. The enclosure can be mounted in any orientation, though the recommended orientation is with the cable glands at the bottom to prevent water ingress along the supply cable. The supply cable enters through a gland on the enclosure bottom or rear face (a rear entry option with a gasket is available for mounting on a flat surface where bottom entry is not possible). The socket terminal connections accept copper conductors up to 16 sq mm (63A models), and the earth terminal is clearly identified with the IEC 60417 symbol for protective earth.
Specify Waterproof Sockets for Your Outdoor Power Needs
- Socket Specification: Provide your voltage, current and environmental requirements for a UKW3 model recommendation.
- Installation Planning: Request mounting dimensions and cable entry configurations for your site layout.
- Project Supply: Source UKW3 sockets in bulk for marina, construction and industrial projects.
Outdoor Power Connections for Industry, Construction and Events
KRIPAL UKW3 waterproof sockets provide standardized IEC 60309 power connection points for outdoor and harsh-environment applications, from the shore power socket on a marina pontoon to the equipment power socket at an outdoor processing plant. The IP66 enclosure and angled socket face design ensure reliable power connection in rain, spray and dusty conditions.
Marina Shore Power Outlets
Marinas use UKW3 16A and 32A 230V blue sockets on pontoons for vessel shore power. The IP66 enclosure withstands continuous salt spray and occasional wave overwash. The angled socket face directs the vessel’s shore power cable downward toward the pontoon deck, preventing water from running along the cable into the socket. The cover is closed when the socket is not in use.
Construction Site Equipment Power Points
Construction sites use UKW3 32A and 63A sockets on site distribution boards for equipment power. The IP66 enclosure protects the socket from rain, dust and concrete splatter, and the impact-resistant housing withstands the rough site environment. The socket cover is closed when not in use.
Outdoor Processing Plant Equipment Connections
Outdoor mineral processing, concrete batching and waste recycling plants use UKW3 sockets to provide power connections for portable equipment. The socket is mounted on a pedestal or wall bracket, with the supply cable protected by conduit from the distribution board. The IP66 enclosure protects against water from process sprays and rain, and against dust from crushing and screening operations.
Sports Venue and Stadium Power Outlets
Outdoor sports venues and stadiums install UKW3 sockets around the field, track and spectator areas for broadcast equipment, temporary lighting and catering power. The sockets are mounted in weatherproof bollards with lockable covers, providing secure power access points for event day use.
Agricultural and Horticultural Power Supply
Farms, nurseries and greenhouses use UKW3 sockets for irrigation pump, ventilation fan and heating equipment power connections. The IP66 enclosure protects against irrigation spray, condensation and the ammonia-rich atmosphere in livestock housing. The socket is mounted on a wall or post at a convenient height for equipment connection.
Specify Outdoor Power Connection Points
- Application Review: Our engineers review your outdoor power requirements and recommend UKW3 socket specifications.
- Site Layout: Request assistance with socket placement and cable routing for your outdoor power distribution scheme.
- Bulk Supply: Source UKW3 sockets in project quantities for marina, construction and industrial applications.
KRIPAL Waterproof Socket Manufacturing: Reliable Connections Outdoors
KRIPAL waterproof sockets are manufactured in a dedicated assembly facility where the IP66 enclosure is molded, the internal socket contacts are fitted, and the spring-loaded lid with captive gasket is assembled. Each socket undergoes a sealing integrity verification and contact resistance measurement for global outdoor, marina, caravan park, and industrial power supply applications.
IP66 Enclosure Molding and Lid Mechanism Assembly
Socket enclosures are injection-molded from UV-stabilized thermoplastic with a self-closing, spring-loaded lid. The lid incorporates a captive silicone gasket that seals against the enclosure body when closed. Lid opening angle is verified to allow full plug insertion, and the spring mechanism is tested for 10,000 open/close cycles without loss of closing force.
Internal Contact Tube Assembly and Retention Verification
Socket contact tubes are fabricated from phosphor bronze with silver-plated contact surfaces, designed to accept the mating plug pins with controlled insertion force. Contact retention force is verified on sample sockets from each production batch using a calibrated pin gauge, with minimum retention force specified per IEC 60309-1 for each pin diameter.
Terminal Block and Cable Connection Assembly
Internal terminal blocks are assembled with rising-clamp terminals accepting stranded copper conductors up to the specified cross-section. Terminal screws are captive type with anti-rotation washers. Each terminal connection is torque-verified, and a pull-force test is performed on sample connections to confirm conductor retention under thermal cycling.
Electrical Safety and Sealing Verification
Each socket undergoes a dielectric withstand test at 2500V AC between live contacts and the enclosure earth terminal. Contact resistance is measured from each socket contact tube to the corresponding terminal using a four-wire micro-ohmmeter at 1A test current. An IP66 water-jet test is performed on sample sockets from each production batch in both open-lid and closed-lid conditions.
Distributor Stock Holding Programs for Waterproof Sockets
KRIPAL supports distributor inventory programs with agreed stock levels for standard socket models: 16A, 32A, and 63A variants with popular pin configurations and voltage color codes. Angled and straight mounting variants are both stocked for distributor fulfillment.
Private Label and OEM Branding for Waterproof Sockets
Custom enclosure branding, OEM part numbers laser-marked on the lid, and distributor-specific packaging are available. Neutral-packaged supply is provided for private label programs.
Multi-Region Certification and Compliance Support
CE, UKCA, and IEC 60309-1/2 EN 60309-1/2 compliance documentation is provided according to target export markets. IP66 test certificates and glow-wire test reports (850 degrees Celsius per IEC 60695-2-11) are available for regulatory submissions.
Direct Technical Access to KRIPAL Production Engineers
Your technical team communicates with the engineers who designed and assembled your waterproof sockets. Application questions including socket selection for specific environmental conditions and plug compatibility across different manufacturers receive answers within 24 hours during China business hours.
Frequently Asked Questions
Explore FAQ >Use a waterproof socket when you need a simple power connection point and control switching is provided elsewhere. Use a combination switched socket when you need both local isolation and power connection in one unit.
No. IP66 protection applies when the socket cap is closed or a plug is fully inserted and latched. The socket should not be connected or disconnected during active rain as the open contact area is not protected.
