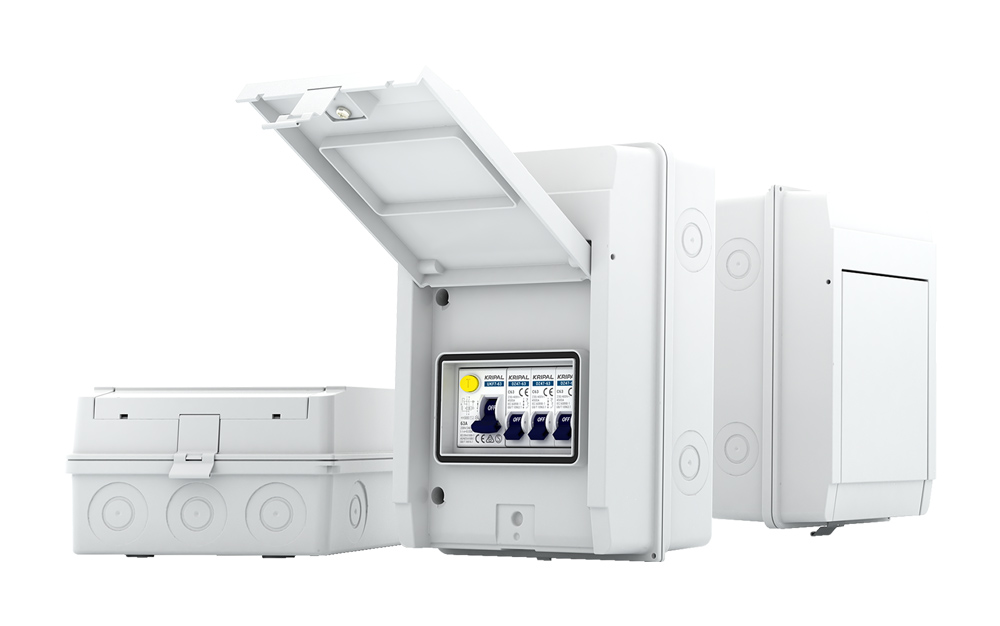

KRIPAL UKE5W Consumer Unit
KRIPAL manufactures consumer units and distribution boards in the UKE1 series for low-voltage power distribution in residential, commercial and light industrial installations. Available in IP40 indoor and IP65 weatherproof enclosures with configurations from 4 to 24 ways (modules), these consumer units accommodate KRIPAL’s full range of modular DIN-rail devices including MCBs, RCCBs, RCBOs, SPDs and main isolator switches. The enclosure is fabricated from 1.2mm powder-coated galvanized steel (IP40) or UV-stabilized ABS (IP65) with a hinged, removable front cover that provides full access to the device mounting rail and wiring space. The UKE1 includes a 100A rated copper busbar system with pin-type connections that accept up to 12 devices per row, a separate earth and neutral terminal bar with multiple tunnel terminals (up to 16 sq mm), and a removable chassis that allows the electrician to mount the empty enclosure, pull in the cables, and then fit the populated chassis. Certified to IEC 61439-3 for distribution boards intended for ordinary persons, KRIPAL consumer units are supplied to electrical wholesalers and housing developers as a complete ready-to-install assembly or as an empty enclosure for the electrician to populate on site.
Get A Quote
UKE5W Aluminum Enclosure & Consumer Unit – IP66 Rated Combination Box
UKE5W Aluminum Enclosure Combination box, a versatile all-metal enclosure, crafted from durable aluminum for superior protection.
Ask a QuoteConsumer Unit Selection Guide for Safe Circuit Distribution
A consumer unit (also called a consumer control unit or distribution board) is the metal or plastic enclosure that houses the protective devices (MCBs, RCCBs, RCBOs) for an electrical installation. It receives the incoming supply from the meter and distributes it to the final circuits through individual protective devices mounted on a DIN-rail and connected to a common busbar. The enclosure provides mechanical protection for the devices, containment of any internal arcing during a fault, and segregation between the supply-side (meter tails) and load-side (final circuit cables) wiring. This selection guide covers way count, enclosure material, IP rating and busbar configuration to match the installation requirements.
UKE1 Consumer Unit Series Technical Specifications
Way Count and Circuit Allocation
The number of ways (modules) required depends on the installation’s circuit count. A typical UK 3-bedroom house needs 10-14 ways: 2 for lighting circuits, 2 for socket ring mains, 1 for cooker, 1 for immersion heater, 1 for smoke alarms, 1 for EV charger, and 2-4 spare ways for future circuits. With RCBOs occupying 2 modules each (1 module for the device plus 1 for the switched neutral), a 14-way board can accommodate 7 RCBO-protected circuits plus a main switch. For installations with a split-load configuration (one RCCB protecting multiple MCBs), fewer modules are needed but discrimination is reduced. Always specify at least 20 percent spare ways for future circuit additions.
Busbar System and Device Compatibility
The UKE1 busbar is a solid copper bar with tin plating, rated at 100A continuous, with pre-punched pin positions at 18mm (1-module) intervals. The busbar is supplied in single-phase (L+N, 2 rows) or three-phase (L1+L2+L3+N, 4 rows) configurations, with each row feeding up to 12 single-module devices. KRIPAL MCBs, RCCBs and RCBOs are designed with a busbar-compatible bottom terminal that accepts the busbar pin directly, eliminating the need for a separate busbar connector or adapter. The busbar is supplied with insulating end caps and a continuous insulating cover that provides IP2X finger protection along the entire length, exposing only the pin positions where devices are installed. Blanking pieces are supplied to cover unused busbar positions.
Enclosure Material and Fire Containment
The UKE1 IP40 enclosure is fabricated from 1.2mm galvanized steel with a powder-coated finish, tested to contain an internal arc of 3kA for 0.1 seconds without ejecting molten particles or flames through the enclosure seams or the door gap. This arc containment is required by BS EN 61439-3 for consumer units in domestic premises, following concerns about plastic consumer units contributing to house fires. The steel enclosure also provides a Faraday cage effect that reduces electromagnetic interference from the switching arcs of protective devices, potentially reducing nuisance tripping of RCCBs in adjacent enclosures. The IP65 weatherproof variant uses a UV-stabilized ABS enclosure with a hinged transparent door that allows visual inspection of the device status indicators without opening the door.
Cable Entry and Wiring Space
The UKE1 enclosure provides cable entry knockouts on the top, bottom and rear faces, with sizes to accommodate meter tails (25-35 sq mm) through dedicated large knockouts and final circuit cables through multiple 20mm and 25mm knockouts. The wiring space behind the DIN-rail provides a minimum 50mm depth for cable routing, sufficient for looping the final circuit cables and dressing them to the device terminals without excessive bending radius. The enclosure includes a cable clamp bar near the top entry to secure the meter tails against mechanical stress from movement of the supply cable. Rubber grommets are supplied to protect cable insulation where cables pass through knockout holes, and the enclosure includes a label schedule inside the door for the electrician to record the circuit descriptions against each device position.
Specify Consumer Units for Your Project
- Board Configuration: Provide your circuit schedule and we design the UKE1 layout with the correct way count, busbar type and device placement.
- Pre-Populated Option: Order UKE1 boards complete with KRIPAL protective devices factory-installed, wired and tested, ready for site connection.
- OEM Wholesale Supply: Source UKE1 enclosures and devices in bulk for your electrical wholesale business.
Consumer Units for Homes, Commercial Buildings and Outdoor Installations
KRIPAL UKE1 consumer units and distribution boards are the central distribution point for electrical power in buildings of all types, from a 10-way domestic consumer unit in a new-build house to a 24-way distribution board in a small commercial unit. The enclosure protects the protective devices from mechanical damage and environmental ingress, provides segregation between supply and load wiring, and contains any internal arcing during a fault.
New-Build Housing Development Standard Consumer Unit
A UK housebuilder’s standard specification for a 3-bedroom home uses a UKE1 14-way IP40 steel consumer unit populated with a 100A main isolator switch and 10 RCBOs (covering lighting, sockets, cooker, heat pump, EV charger, smoke alarms). The unit is delivered to site pre-populated and tested by KRIPAL, with the electrician only needing to terminate the meter tails, the final circuit cables and the main earth conductor. The pre-populated approach reduces on-site electrical labor by approximately 4 hours per house (compared to building the unit from individual components on site) and ensures that every consumer unit in the development has consistent device placement and labeling, simplifying the NHBC inspection and the homeowner’s understanding of their electrical installation.
Small Commercial Unit Distribution Board
A small shop, cafe or office uses a UKE1 20-way IP40 steel distribution board with a 125A 4P main isolator, a 300mA Type S RCCB as the sub-main earth leakage protection, and a mix of MCBs and 30mA RCBOs for final circuits. The board includes a UKD1 Type 2 SPD on the incoming side of the main isolator, protecting the entire installation against power-line surges. The distribution board is surface-mounted on the wall in a utility room or back office, with the front cover locked to prevent unauthorized access to live parts. The circuit schedule is completed in permanent marker on the label inside the door, and a copy is kept with the building’s electrical installation certificate.
Outdoor Weatherproof Consumer Unit
Outdoor installations (caravan parks, marinas, construction sites, agricultural buildings) use a UKE1 IP65 weatherproof enclosure with a transparent door that allows visual inspection of device status indicators. The enclosure is UV-stabilized for outdoor service in direct sunlight without yellowing or embrittlement, and the door gasket is a closed-cell neoprene foam that maintains its sealing performance across the temperature range from minus 25 to plus 60 degrees Celsius. Cable entry is through IP68 cable glands fitted to the enclosure bottom face, maintaining the overall IP rating. The enclosure is mounted on a wall or post at a height accessible for operation but protected from mechanical damage by vehicles or livestock.
Garage and Workshop Sub-Distribution Board
A detached garage or home workshop with a 40A sub-main feed from the house consumer unit uses a UKE1 8-way IP40 enclosure with a 40A main isolator and individual MCBs for lighting (6A), socket outlets (16A), welder supply (32A D-curve) and air compressor (20A C-curve). The sub-main cable from the house is protected by a 40A MCB at the house consumer unit, with discrimination between the two MCBs achieved by the cable impedance limiting the fault current at the garage end to below the house MCB’s instantaneous trip threshold. The board is labeled “Garage Consumer Unit” and the circuit schedule is completed for the homeowner’s reference.
Retrofit Consumer Unit Upgrade
Electrical contractors performing consumer unit upgrades in existing homes (typically replacing a rewireable fuse board with a modern consumer unit) use a UKE1 14-way enclosure populated with RCBOs to provide per-circuit earth leakage protection, satisfying BS 7671 Amendment 2 requirements for new and altered installations. The contractor orders the board pre-populated with the specified device schedule, reducing the on-site labor to mounting the enclosure, terminating the cables and testing the installation. The split busbar design allows the contractor to energize the circuits in groups during testing, rather than all at once, reducing the time the household supply is disconnected.
Configure Your Consumer Unit
- Board Design Service: Our engineers design the UKE1 board layout from your circuit schedule, with a 3D CAD drawing showing device positions and cable routing.
- Pre-Populated Boards: Order UKE1 enclosures complete with all protective devices factory-installed and tested, shipped with an individual FAT certificate.
- Housebuilder Programs: Dedicated production scheduling and JIT delivery for housing developments with standardized consumer unit specifications.
KRIPAL Consumer Unit Manufacturing: Quality Enclosures
KRIPAL consumer units and distribution boards are manufactured in a panel-building workshop where the DIN-rail chassis is assembled, the busbar system is fabricated from tinned copper, and the enclosure is fitted with a hinged door and blanking plates. Each consumer unit undergoes a dielectric test and visual inspection for global residential and commercial electrical installation markets.
Enclosure Fabrication and IP Rating Verification
Sheet steel enclosures are CNC-punched, formed, and powder-coated with epoxy-polyester finish. IP40 rating is verified on sample enclosures using an IP test dust chamber. The hinged door, latch mechanism, and blanking plates are assembled and checked for smooth operation and positive closure on every unit.
Tinned Copper Busbar and Neutral/Earth Bar Fabrication
The main busbar comb is fabricated from high-conductivity copper with tinned finish, punched to align with MCB terminal positions. Neutral and earth terminal bars are fabricated with tunnel-type terminals accepting 25 sq mm incoming cable. Busbar short-circuit withstand is verified at the rated conditional short-circuit current (typically 10kA or 16kA).
Pre-Configured Circuit Arrangements
Consumer units are assembled in standard configurations (4-way, 6-way, 8-way, 12-way, etc.) with or without pre-installed main switch and MCBs. Split-load configurations with separate RCD-protected ways are available. Each configuration is tested for busbar alignment and DIN-rail engagement before packaging.
Final Dielectric Test and Visual Inspection
Each completed consumer unit undergoes a dielectric withstand test at 2500V AC between live busbars and the metallic enclosure, and between separate busbar sections. A visual inspection checklist covering door alignment, labeling, terminal torque, and earth continuity is completed for every unit before packaging.
Distributor Stock Holding Programs for Consumer Units
KRIPAL supports distributor inventory programs with agreed stock levels for standard consumer unit configurations. Empty enclosures and pre-populated units are available, with shipments planned based on demand data and scheduled replenishment.
Private Label and OEM Branding for Consumer Units
Custom front cover branding, door labels, circuit identification schedules, and OEM packaging are available. KRIPAL supports the supply of consumer units configured to local market standards with appropriate terminal arrangements and labeling.
Multi-Region Certification and Compliance Support
CE, UKCA, and IEC 61439-3 compliance documentation is provided according to target export markets. Technical documentation files are maintained and updated in line with evolving wiring regulation requirements including BS 7671 and local equivalents.
Direct Technical Access to KRIPAL Production Engineers
Your technical team communicates with the engineers who designed and assembled your consumer units, not a distributor’s sales engineer reading from a catalog. Application questions including 18th Edition compliance receive answers within 24 hours during China business hours.
