Push Button Control Stations IP65 IP66 | 1-6 Holes | Start Stop Emergency
Outdoor Waterproof Switch-Push Button Control Station
KRIPAL manufactures IP65 push button control stations in the UKW5 series for manual control of industrial machinery, motor starters and process equipment in harsh environments. These weatherproof control stations house push buttons, selector switches, pilot lights and emergency stop buttons in a robust thermoplastic enclosure rated IP65 for protection against water jets and dust ingress. Available in configurations from 1 to 6 control elements, the UKW5 can be factory-configured with the customer’s choice of momentary or latching push buttons (flush, extended or mushroom head, in green, red, black, yellow and blue), 2-position or 3-position selector switches (maintained or spring-return), LED pilot lights (230V AC, 24V AC/DC), and emergency stop buttons (mushroom head, push-to-stop, pull-to-release or key-release). The enclosure is molded from UV-stabilized, glass-fiber reinforced polyamide with a hinged cover secured by captive stainless steel screws, and the cable entry is via IP68 glands on the enclosure bottom face. Certified to IEC 60947-5-1 for control circuit devices with utilization category AC-15, KRIPAL UKW5 control stations are installed on machine tools, conveyor systems, pump control panels and process equipment in food processing, wastewater treatment, mining and general manufacturing environments.
Get A Quote

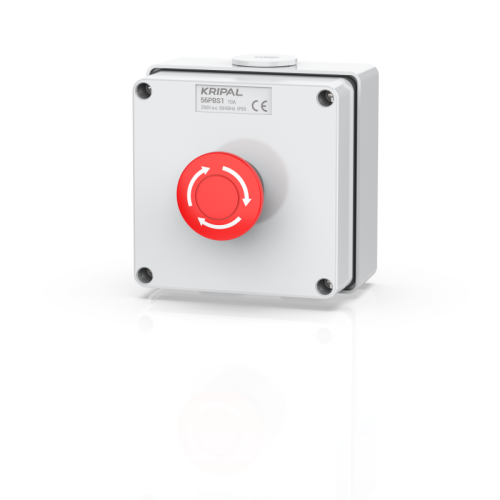

56PS1 Push-button Control Station 10A Emergency stop station with mushroom head IP66 Weatherproof Switch
This comprehensive range of industrial button control stations provides reliable motor control solutions for demanding environments.
Ask a Quote
56-2PB Push-button Control Station 10A Start/Stop IP66 Weatherproof Switch
This comprehensive range of industrial button control stations provides reliable motor control solutions for demanding environments.

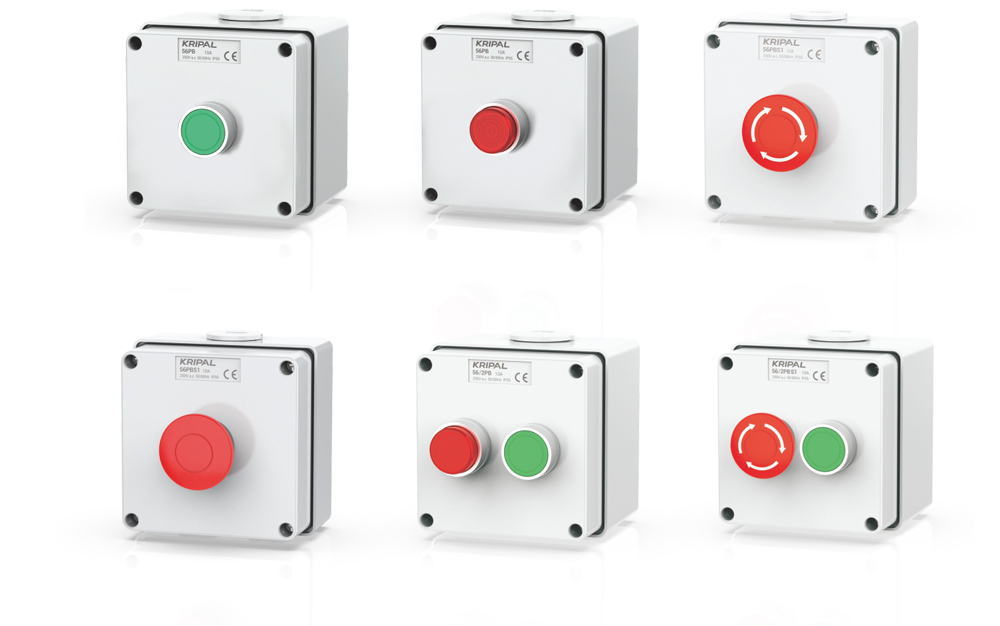

Ask a QuotePush Button Control Station Selection for Industrial Equipment Control
A push button control station is an enclosure housing control devices (push buttons, selector switches, indicator lights) that provides the local operator interface for machine and process control. The operator presses a START button to initiate a machine cycle, an emergency STOP button to halt the machine in a hazardous situation, and a selector switch to choose between automatic and manual modes. The IP65 enclosure protects the control devices and wiring terminations from water, dust, impact and chemicals, making the station suitable for direct mounting on machinery in wash-down, outdoor and dirty industrial environments without an additional protective cabinet. This selection guide covers control element types, configuration, enclosure rating and application.
UKW5 Push Button Control Station Technical Specifications
Control Element Types and Selection
Momentary push buttons (spring-return) are used for START, JOG and INCH functions, where the button must be held to maintain the action. Latching push buttons (push-on/push-off) are used for ON/OFF control where a maintained signal is required. Mushroom head push buttons (40mm diameter) are used for STOP and emergency stop functions, with the large head providing easy operation in an emergency. Selector switches provide maintained position selection (AUTO-OFF-MANUAL, LOCAL-REMOTE, FWD-OFF-REV) with 2 or 3 positions, available as maintained (stays in position) or spring-return (returns to center). LED pilot lights indicate the machine or process status: green for RUN, red for FAULT/STOP, yellow for WARNING, blue for auxiliary functions. All control elements have contact blocks rated for AC-15 (electromagnetic loads, 230V AC 3A making, 0.5A breaking).
Emergency Stop Function and Safety Compliance
The UKW5 emergency stop button complies with IEC 60947-5-5 and ISO 13850 for emergency stop devices. The button is a red mushroom head on a yellow background, with a positive-opening normally-closed contact that forces the contacts apart mechanically (not relying on spring force). The button latches in the STOP position when pressed and is reset by pulling (standard) or by a key (for security applications where only authorized personnel can reset the emergency stop). The emergency stop button should be wired into the machine’s safety circuit (safety relay or safety PLC) to achieve the required safety integrity level (SIL) or performance level (PL) per ISO 13849-1. The UKW5 enclosure provides a clear, accessible and protected location for the emergency stop button, with a yellow background plate to identify the emergency stop function.
Enclosure Protection and Environmental Sealing
The UKW5 enclosure is molded from glass-fiber reinforced polyamide (PA6-GF30) with a silicone gasket between the cover and the base, achieving an IP65 rating per IEC 60529 when the cover screws are tightened to the specified torque. The IP65 rating means the enclosure is dust-tight and protected against low-pressure water jets, suitable for hose-down cleaning in food processing and pharmaceutical facilities. Each control element is individually sealed to the enclosure cover with an O-ring gasket. The cable entry is via IP68 glands on the enclosure bottom face, and the enclosure includes a separate earth terminal for the supply earth conductor with continuity to the metal parts of the control devices. Unused cable entry holes are sealed with blanking plugs.
Factory Configuration and Wiring
KRIPAL UKW5 control stations are factory-configured to the customer’s specification: the required control elements are assembled into the enclosure cover, the contact blocks are fitted, and the wiring is pre-terminated to a terminal strip inside the enclosure base. The customer specifies the control element arrangement (from left to right on a single-row station, or in a matrix for multi-row stations), the contact configuration for each element (1NO, 1NC, 1NO+1NC), and the labeling (laser-engraved legend plates with text such as START, STOP, AUTO, MANUAL). A wiring diagram is supplied inside the enclosure and a copy is shipped with the unit. Pre-wired control stations reduce on-site installation time by eliminating the need to wire individual control elements and reducing the risk of wiring errors.
Configure Your Control Station
- Custom Configuration: Specify your control elements and labeling, and we assemble a factory-wired UKW5 control station ready for installation.
- Safety Integration: Our engineers review your safety circuit design and confirm UKW5 emergency stop compliance with ISO 13850.
- OEM Supply: Source UKW5 control stations in bulk with your standard configurations for your machine building operation.
Local Motor and Equipment Control in Industrial Environments
KRIPAL UKW5 push button control stations provide the local operator interface for machines and processes in environments where a standard control panel would not survive. From the conveyor START/STOP station in a quarry to the pump control station in a wastewater treatment plant, the IP65 enclosure and robust control elements ensure reliable operation in harsh industrial conditions.
Conveyor System Local Control
Quarry and mining conveyor systems use UKW5 stations with START, STOP and EMERGENCY STOP buttons at each conveyor drive, transfer point and tail end. The IP65 enclosure protects against rock dust, water spray from dust suppression systems, and impacts from falling material. The emergency stop button is wired into the conveyor safety circuit to provide the E-stop function required by AS 4024 in Australia or ISO 13850 internationally.
Pump Control Station in Water Treatment
Water and wastewater treatment plants use UKW5 stations with AUTO-OFF-HAND selector switches and RUN/FAULT pilot lights for pump local control. The AUTO position enables remote control from the SCADA system, OFF disables the pump for maintenance, and HAND starts the pump locally for testing. The IP65 enclosure withstands the high humidity and occasional spray in pump stations.
Food Processing Equipment Control
Food processing machines use UKW5 stations with stainless steel legend plates and silicone-sealed buttons for wash-down areas. The IP65 enclosure withstands daily cleaning with hot water and detergent, and the smooth enclosure surfaces prevent food particle accumulation. The control elements are color-coded: green START, red STOP, yellow RESET.
Machine Tool Operator Station
CNC machines, presses and fabrication equipment use UKW5 stations with START, CYCLE START, FEED HOLD and EMERGENCY STOP buttons. The large mushroom-head emergency stop button is the most prominent element, positioned for rapid operation by the machine operator in an emergency. The station is mounted on the machine frame at a convenient height for the operator.
Agricultural Equipment Control
Grain handling, feed milling and irrigation systems use UKW5 stations for equipment control in dusty, high-humidity agricultural environments. The station provides the local START/STOP and emergency stop function required by agricultural machinery safety regulations.
Specify Your Machine Control Station
- Configuration Support: Describe your control functions and our engineers specify the UKW5 control elements and wiring.
- Safety Compliance: Obtain documentation for your machine safety file per ISO 13849.
- OEM Supply: Source UKW5 stations with your standard configurations for your machinery production.
KRIPAL Control Station Manufacturing: Built for Industrial Endurance
KRIPAL push button control stations are manufactured in a dedicated assembly cell where the IP65/IP66 enclosure, control elements (push buttons, selector switches, pilot lights), and internal wiring are configured to customer specifications. Each control station passes an 8-point quality inspection including wiring continuity, dielectric test, and actuator function verification for global industrial machine control and conveyor system applications.
Enclosure Machining for Control Element Mounting
Enclosures are CNC-machined for standard 22mm control element mounting holes with precise center-to-center spacing. The drilled holes are deburred and the sealing surface is verified flat to within 0.1mm to ensure the control element’s O-ring seal achieves IP65 or IP66 rating. The number of holes (1 to 6 stations) is configured per customer order.
Control Element Assembly and Sealing Verification
Push buttons, emergency stop mushrooms, selector switches, and pilot lights are fitted with their individual sealing gaskets and torqued to the manufacturer’s specified mounting nut torque. Each mounted control element is tested for its IP sealing integrity at the element-to-enclosure interface using a localized water-spray test on sample assemblies.
Internal Wiring and Terminal Block Assembly
Control stations are wired with color-coded flexible copper conductors (1.5 sq mm minimum), terminated with crimped ferrule connectors. Each wire termination is identified with a numbered sleeve corresponding to the wiring diagram. The terminal block is Din-rail mounted with adequate wiring space per IEC 60947-1 requirements for bend radius and access.
8-Point Quality Inspection and Functional Test
Every control station undergoes: (1) visual inspection of enclosure and labeling, (2) wiring continuity test per the circuit diagram, (3) dielectric withstand at 2500V AC, (4) actuator mechanical function test, (5) emergency stop positive opening mechanism verification, (6) contact block electrical function, (7) earth continuity test, and (8) IP rating sealing verification on the assembled unit.
Distributor Stock Holding Programs for Control Stations
KRIPAL supports distributor inventory programs with agreed stock levels for popular control station configurations: START/STOP, START/STOP/EMERGENCY STOP, and FORWARD/STOP/REVERSE in common enclosure sizes. Custom-configured stations are built to order with defined lead times.
Private Label and OEM Branding for Control Stations
Custom enclosure branding, legend plate engraving with your standard text and symbols, and OEM wiring diagrams are available. KRIPAL supports the supply of control stations built to customer-specific wiring standards and with customer-approved component brands.
Multi-Region Certification and Compliance Support
CE, UKCA, and IEC 60947-5-1 EN 60947-5-1 compliance documentation is provided. Emergency stop devices are certified to IEC 60947-5-5 and EN ISO 13850. Technical documentation files are maintained for machinery directive compliance.
Direct Technical Access to KRIPAL Control Station Engineers
Your technical team communicates with the engineers who designed and wired your control stations. Application questions including emergency stop circuit design to SIL/PL requirements and control station specification for specific environmental conditions receive answers within 24 hours during China business hours.
Frequently Asked Questions
Explore FAQ >Standard enclosures accommodate 1 to 6 operator devices (push buttons, selector switches, pilot lights) in 22mm mounting holes. Larger custom configurations are available for OEM requirements.
IP65 protects against low-pressure water jets from any direction. IP66 protects against powerful water jets. For food processing washdown areas, IP66 is recommended.
