How to Wire an Isolator Switch: Single Phase and Three Phase Guide
Step-by-step guide to wiring single-phase and three-phase isolator switches. Terminal identification, safety precautions, and common mistakes to avoid.
June 26, 2026
Wiring an isolator switch correctly is a fundamental task for any electrical installation. Whether you are working on a residential distribution board or a three-phase industrial motor circuit, the isolator serves as the primary means of disconnecting power for safe maintenance. KRIPAL manufactures a range of isolator switches including the UKF, UKX, and UKP series, built to meet EN 60947-3 standards. This guide covers wiring procedures for both single-phase and three-phase configurations, common mistakes to avoid, and product recommendations.
Understanding Isolator Switch Basics
What Is an Isolator Switch
An isolator switch is a mechanical switching device designed to disconnect a circuit from the electrical supply by opening its contacts. Depending on the design, it may disconnect one or multiple poles. Unlike a circuit breaker, an isolator does not provide overcurrent or short-circuit protection. Its sole function is to provide a visible isolation gap, ensuring that maintenance personnel can work on downstream equipment without risk of electric shock. Isolators are used in distribution boards, motor control centers, and at the supply inlet of machinery.
EN 60947-3 Key Standards
EN 60947-3 is the harmonized European standard covering switches, disconnectors, switch-disconnectors, and fuse-combination units for low-voltage applications up to 1000 V AC. KRIPAL isolator switches are manufactured according to EN 60947-3 requirements. Compliance with EN 60947-3 means the device has been verified for rated operational current, making and breaking capacity, and dielectric strength. When wiring an isolator, always confirm that the device rating matches the circuit parameters, and that the installation environment falls within the switch’s specified temperature and pollution degree limits.
Tools and Preparation Before Wiring
Required Tools
Before starting the wiring process, gather the following tools:
- Insulated flathead and Phillips screwdrivers
- Wire stripper and cutter
- Torque screwdriver or torque wrench (for terminal screws)
- Multimeter or voltage tester
- Cable lug crimping tool (if using ferrules or lugs)
- Personal protective equipment: insulated gloves, safety glasses
Safety Precautions
Confirm that all upstream power is disconnected and locked out before touching any terminals. Use a voltage tester to verify zero voltage on all conductors, including the neutral, before proceeding. Never assume a circuit is dead based on a switch position alone. Always follow local electrical codes and regulations, and if you are not a qualified electrician, engage a licensed professional.

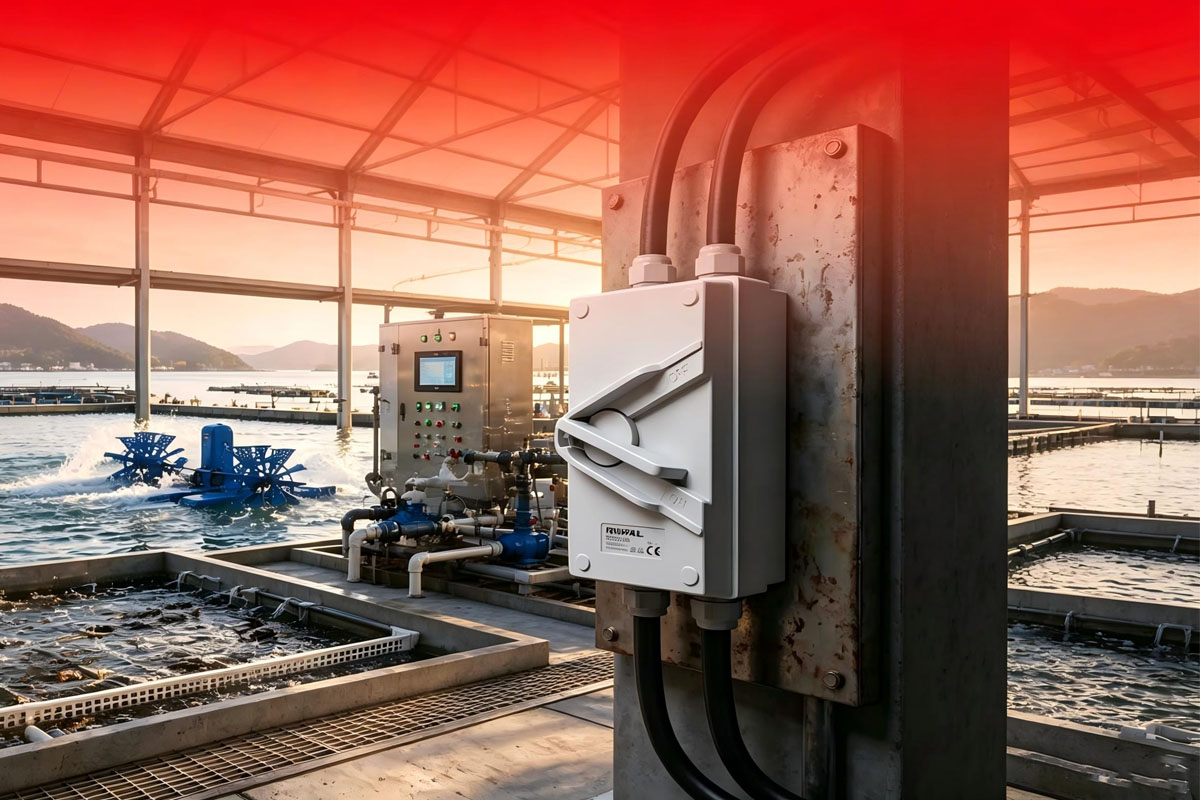

Single Phase Isolator Switch Wiring
Identifying Line and Load Terminals
Single-phase isolator switches are commonly available as 1-pole or 2-pole designs. A 2-pole isolator normally includes four power terminals for switching both live and neutral conductors. The terminals are marked on the switch body. Line-side terminals are often labeled “1” and “3,” or “L IN” and “N IN.” Load-side terminals are labeled “2” and “4,” or “L OUT” and “N OUT.” On KRIPAL UKF single-phase models, the terminal markings are clearly visible on the front face of the device. Always wire from supply to line terminals and from load terminals to the equipment.
Step-by-Step Single Phase Wiring
Strip approximately 10-12 mm of insulation from each conductor using a wire stripper.
If using flexible cable, fit ferrules to prevent strand separation under the terminal screw.
Connect the incoming live (brown or red) wire to the line-side live terminal marked “1” or “L IN.”
Connect the incoming neutral (blue or black) wire to the line-side neutral terminal marked “3” or “N IN.”
Connect the outgoing live wire to the load-side live terminal marked “2” or “L OUT.”
Connect the outgoing neutral wire to the load-side neutral terminal marked “4” or “N OUT.”
Connect the earth/ground conductors to the earth terminal block (not switched).
Tighten all terminal screws to the manufacturer’s recommended torque. Under-tightening causes overheating; over-tightening can strip threads.
Double-check all connections and close the switch enclosure.
Restore power and test the circuit with a multimeter.
Three Phase Isolator Switch Wiring
Three Phase Terminal Layout
A three-phase isolator normally has six main terminals for three phases. A four-pole version includes additional neutral terminals. The terminals are numbered sequentially: line terminals L1, L2, L3 (often marked 1, 3, 5) and load terminals T1, T2, T3 (marked 2, 4, 6). A 4-pole isolator adds a switched neutral: N-line (7) and N-load (8). KRIPAL UKX and UKP three-phase isolators are available in 3-pole and 4-pole configurations.
Step-by-Step Three Phase Wiring
For motor applications, verify phase rotation after wiring and before commissioning. Incorrect phase rotation can cause motors to run in reverse.
Strip conductors and fit ferrules as in the single-phase procedure.
Connect L1 supply to line terminal 1, L1 load to load terminal 2.
Connect L2 supply to line terminal 3, L2 load to load terminal 4.
Connect L3 supply to line terminal 5, L3 load to load terminal 6.
For 4-pole switches, connect the neutral supply to terminal 7 and neutral load to terminal 8.
Connect the earth conductor to the dedicated earth terminal.
Torque all terminals to specification.
Before energizing, use a multimeter to check that no short circuits exist between phases or between phase and earth.
Energize and verify correct phase-to-phase and phase-to-neutral voltages at the load terminals in the ON position, and zero voltage in the OFF position.
Common Wiring Mistakes to Avoid
Reversing Line and Load
One of the most frequent wiring errors is swapping the line and load sides of the isolator. This can cause two problems. First, when the switch is in the OFF position, the load-side terminals remain live, creating a shock hazard for anyone who assumes the downstream equipment is de-energized. Second, some isolator designs include auxiliary contacts or shunt trips that depend on correct supply-side orientation. Always check terminal markings before connecting conductors.
Loose Terminal Connections
Loose connections generate heat through increased contact resistance. Over time, thermal cycling can degrade the connection further, potentially leading to insulation damage or fire. Use a calibrated torque driver and follow the torque values printed on the device or in the manufacturer’s documentation. After tightening, tug each conductor gently to confirm it is secure. Re-torque connections after the first few thermal cycles as part of commissioning.

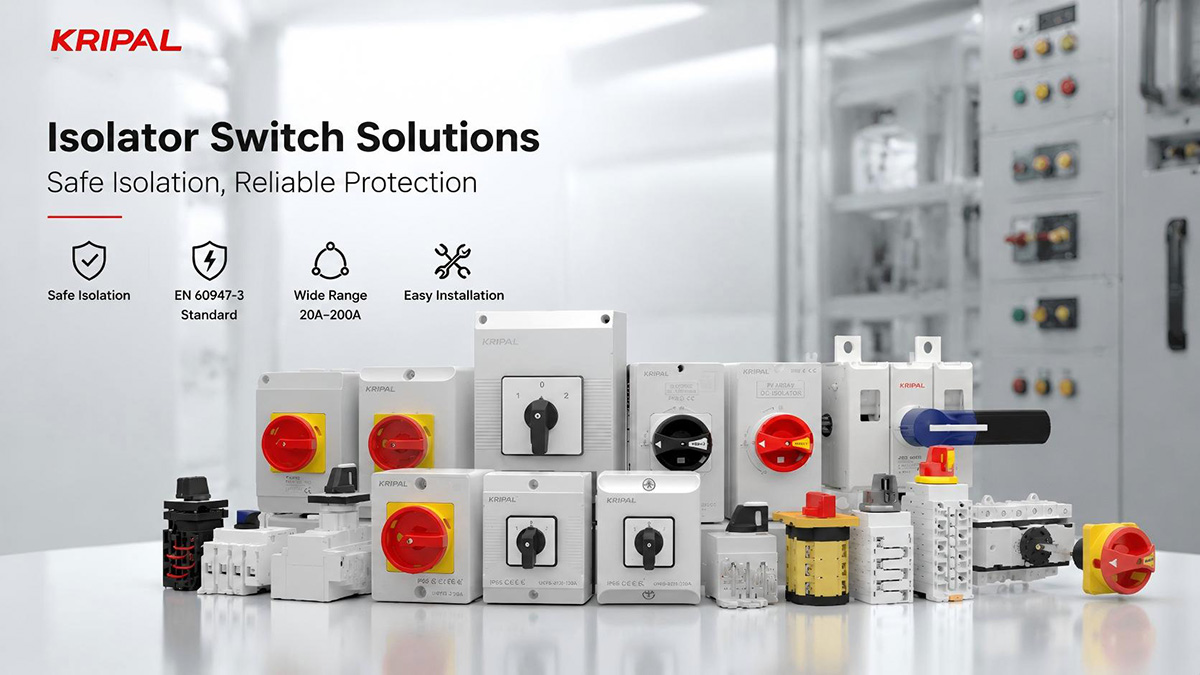

KRIPAL Isolator Switches for Your Project
KRIPAL offers three main series of isolator switches, each suited to different applications:
| Series | Rated Current | Poles | Key Feature |
|---|---|---|---|
| UKF | 20 A to 125 A | 1P, 2P, 3P, 4P | Compact design for residential and light commercial use |
| UKX | 32 A to 160 A | 3P, 4P | Door interlock option, DIN rail and panel mount |
| UKP | 40 A to 200 A | 3P, 4P | High breaking capacity, industrial-grade construction |
All KRIPAL isolator switches comply with EN 60947-3. Learn more about the full product range on our isolator switch category page or browse our AC isolator switch range. For outdoor applications, see the UKF series weatherproof isolating switches.
Frequently Asked Questions
Q: Can I use an isolator switch as a circuit breaker?
No. An isolator switch is designed only for disconnection under no-load or low-load conditions. It does not trip on overcurrent or short circuit. For overcurrent protection, you must install a separate circuit breaker or fuse upstream.
Q: What is the difference between a 3-pole and 4-pole isolator?
A 3-pole isolator switches the three phase conductors only. The neutral passes through unswitched or is connected to a separate neutral busbar. A 4-pole isolator is often selected where complete isolation of both phases and neutral is required, depending on local electrical regulations.
Q: Do I need an isolator switch for a residential solar PV system?
Yes. Most grid codes require a lockable AC isolator between the inverter and the distribution board. This allows firefighters and maintenance personnel to isolate the PV system from the grid supply. A DC isolator on the panel side is also typically required.
Q: What cable size should I use with an isolator switch?
Cable sizing depends on the circuit current rating, installation method, and ambient temperature. The isolator’s terminal capacity determines the maximum conductor cross-section it can accept. Check the KRIPAL datasheet for your specific model. As a general guide, UKF 63 A models accept up to 25 mm squared conductors, while UKP 200 A models accept up to 70 mm squared.
Q: Can I mount an isolator switch outdoors?
KRIPAL isolator switches have an IP20 rating as standard that is suitable for indoor enclosures. For outdoor installation, the switch must be housed in a weatherproof enclosure with an appropriate IP rating, typically IP65 or higher. The enclosure must also provide UV protection and adequate ventilation. The UKF5 weatherproof isolating switch is designed for outdoor use.
Q: How do I know if my isolator switch is compliant with EN 60947-3?
Look for the EN 60947-3 marking on the device nameplate. KRIPAL products carry this marking along with the rated operational current, voltage, and utilization category (typically AC-21A or AC-22A). You can also request the Declaration of Conformity from our contact page.
Get Expert Support for Your Isolator Installation
For technical support or product selection assistance, visit www.kripal.net or contact our team. Explore our full range of isolator switches and low-voltage electrical products.
