UKF1
Full-range base-mount isolator for general outdoor power distribution.
- Poles: 1P / 2P / 3P / 4P
- Current: 20A / 35A / 63A
- Voltage: 250 to 500V AC
KRIPAL
UKF IP65/IP66 Weatherproof Isolating Switches
Factory-direct outdoor isolators for distributors, OEMs and project buyers. UKF1 to UKF5, MOQ from 100 pcs.
IP65/IP66 Rated
IEC 60947-3
1P to 4P | 10A to 63A
MOQ 100+
OEM / Private Label

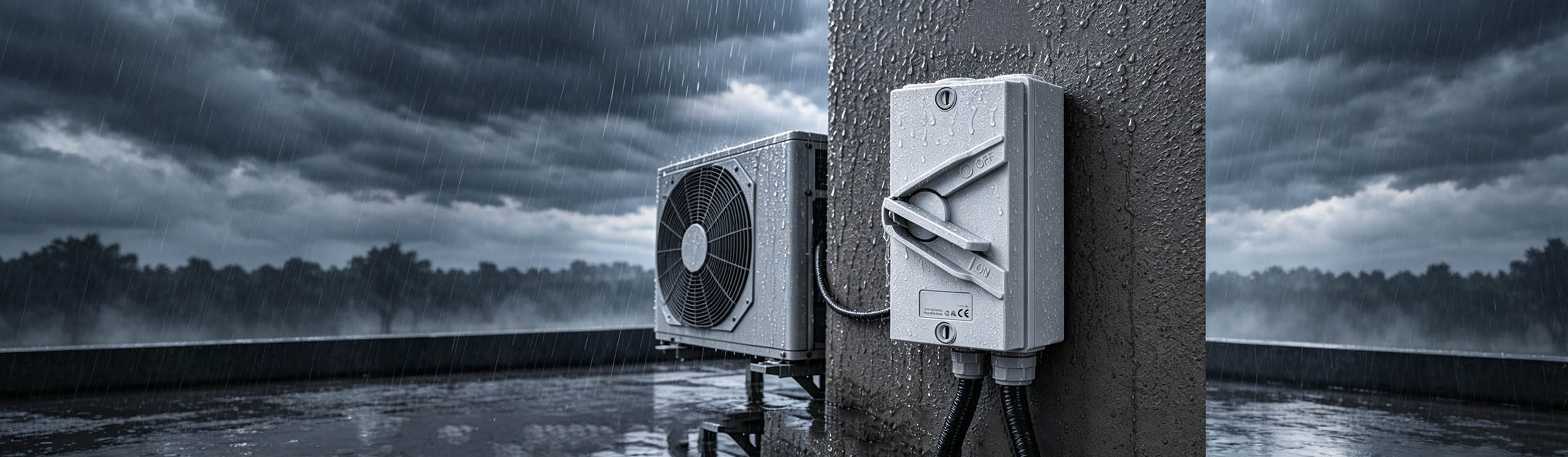

Built For Extreme Outdoor Circuit Isolation
The UKF Series delivers reliable outdoor load isolation with IP65/IP66 protection, a padlockable OFF position for LOTO safety, and durable performance in rain, dust and harsh outdoor environments.
- IP65/IP66 Weatherproof Enclosure Dust-tight and water-resistant housing designed for reliable outdoor installation in rain, dust and harsh environments.
- UV-Resistant PC Housing Flame-retardant PC enclosure with UV resistance, anti-aging performance and corrosion protection for long outdoor service life.
- Safe Termination Fixed Earth and Neutral bars with dual-clamp tunnels, 5 to 6 mm bore, and insulating caps on base screws to protect from live cables.
- Padlockable OFF Position 7mm padlock hole enables LOTO safety procedures and prevents accidental operation during maintenance.

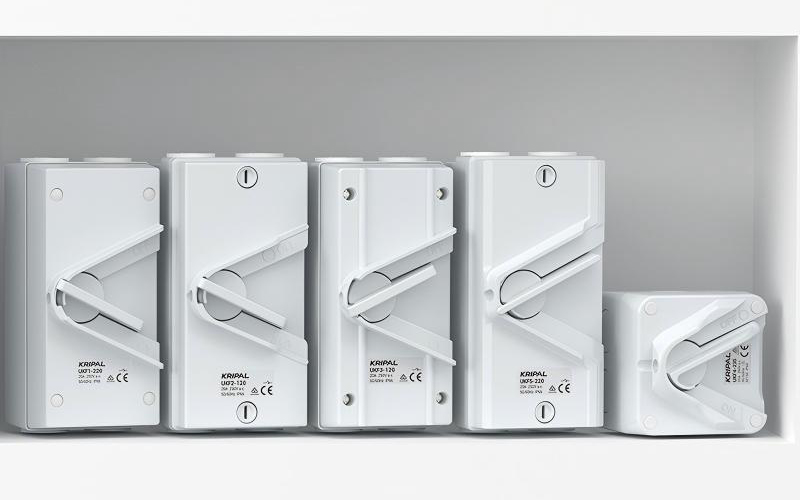

UKF1 To UKF5 Series Lineup
One platform, five form factors. Select by poles, current and installation space. Grey or white finish, IEC 60947-3 compliant.
UKF2
Same electrical range as UKF1 with alternate enclosure and terminal layout.
- Poles: 1P / 2P / 3P / 4P
- Current: 20A / 35A / 63A
- Voltage: 250 to 500V AC
UKF3
Industrial workhorse with intermediate 45A option alongside 20/35/63A.
- Poles: 1P / 2P / 3P / 4P
- Current: 20 / 35 / 45 / 63A
- Voltage: 250 to 500V AC
UKF4
Compact 1P/2P isolator for light-duty outdoor and HVAC branch circuits.
- Poles: 1P / 2P
- Current: 10 / 16 / 20 / 35A
- Voltage: 250V AC
UKF5
Versatile base-mount isolator for specialized installation requirements. (Plastic screws)
- Poles: 1P / 2P / 3P / 4P
- Current: 20A / 35A / 63A
- Voltage: 250 to 500V AC
Need A Wholesale Quote?
Share your model, poles, current rating and quantity. MOQ 100+. Reply within one business day.

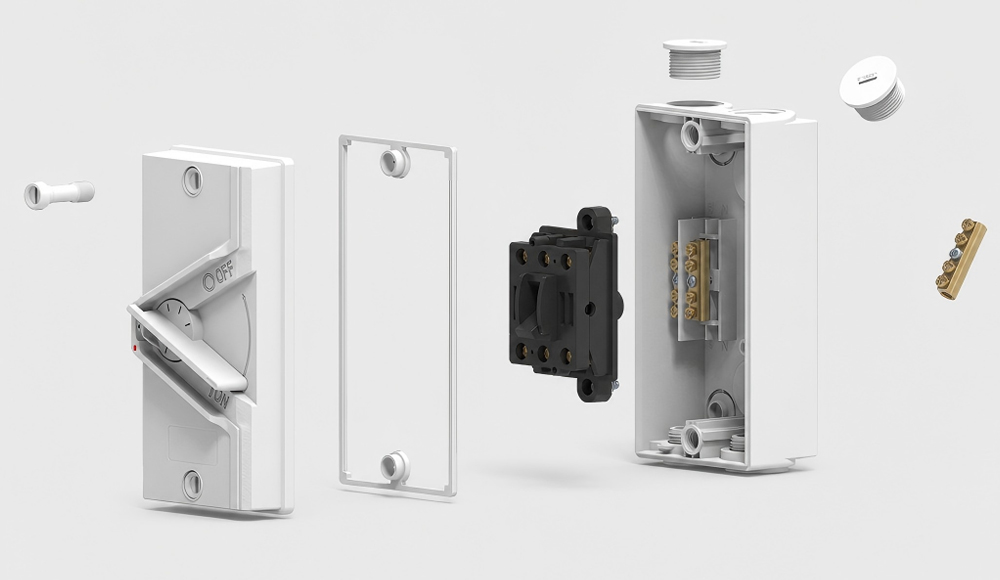

Enclosure Materials & Construction
Every critical part is specified for weather, wash-down and marine exposure, not just painted plastic.
Body & Cover
PA6-GF30 / PC
UV-resistant, flame-retardant enclosure materials for long outdoor service life.
Transparent Cover
UV Polycarbonate
Clear position confirmation. Hinged with captive screw; padlockable for maintenance lockout.
Gasket
Food-Grade Silicone
Weather seal that holds compression after repeated opening, suitable for hose-down process areas.
Contacts
Silver-Nickel AgNi10
Arc-erosion resistant with low contact resistance. Rated 10,000 mechanical operations.
Terminals
Silver-Plated Copper
Captive screws with rising clamp washers. Torque-verified per IEC 60947-1. Bore 5 to 6 mm.
Glands & Fasteners
Ni-Brass / SS316
Nickel-plated brass glands for 20/25 mm conduit. Stainless 316 fasteners, salt-spray ready.
Quick Model Comparison
Share this table with your purchasing team when requesting a quote.
| Model | Poles | Current (A) | Voltage (V AC) | IP | Standard | Best For |
|---|---|---|---|---|---|---|
| UKF1 | 1P / 2P / 3P / 4P | 20 / 35 / 63 | 250 to 500 | IP65/IP66 | IEC 60947-3 | General outdoor isolation |
| UKF2 | 1P / 2P / 3P / 4P | 20 / 35 / 63 | 250 to 500 | IP65/IP66 | IEC 60947-3 | Alternate layout / stock fit |
| UKF3 | 1P / 2P / 3P / 4P | 20 / 35 / 45 / 63 | 250 to 500 | IP65/IP66 | IEC 60947-3 | Projects needing 45A step |
| UKF4 | 1P / 2P | 10 / 16 / 20 / 35 | 250 | IP65/IP66 | IEC 60947-3 | Compact / light-duty outdoor |
| UKF5 | 1P / 2P / 3P / 4P | 20 / 35 / 63 | 250 to 500 | IP65/IP66 | IEC 60947-3 | Specialized install (plastic screws) |
Full part-number matrices available on request or in the UKF Series Datasheet (PDF).

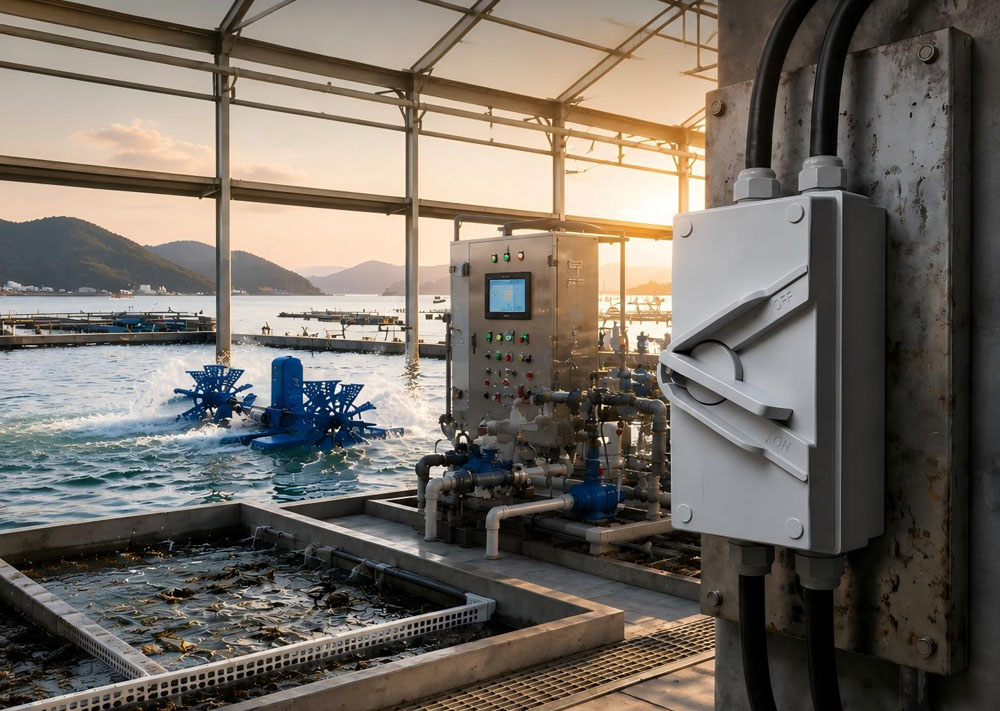

Where Buyers Specify UKF
Typical outdoor and wash-down projects where distributors and procurement teams specify weatherproof isolation.
-
01
Industrial Outdoor Power
Local isolation for pumps, conveyors, fans and temporary site distribution under weather exposure.
-
02
Food & Wash-Down Plants
Hose-down cleaning with detergents. Silicone gasket and padlockable OFF for shift safety.
-
03
Marine & Coastal
Deck and quay equipment. Corrosion-minded glands and fasteners for salt-air environments.
-
04
Infrastructure & Utilities
Public lighting, water treatment and outdoor panels needing reliable visible isolation.
-
05
Agriculture & HVAC
Ventilation, irrigation and rooftop equipment. Glove-operable lever, IP65/IP66 enclosure.
-
06
Mining & Construction
Impact-resistant housing and lockout capability for maintenance LOTO procedures.
30+Years Factory
32+Production Lines
100+MOQ Units
24hQuote Response
Why Source UKF From KRIPAL
We manufacture for wholesale partners, not one-off retail carts. Direct factory access for distributors, OEMs and project buyers.
Talk To Sales
-
Vertically Integrated Factory
In-house production and CNAS-capable testing for stable batch quality and export consistency.
-
Wholesale MOQ Programs
Minimum 100 units per model, with stock-holding options for distributors and project pipelines.
-
OEM / Private Label Ready
Custom labeling, laser-marked part numbers and neutral packaging for your brand channel.
-
Global Certifications
IEC 60947-3, CE, UKCA, CB, SEMKO, SAA, CQC, CCS, RoHS. Test documents available on request.
-
Engineer Access & Shipping
Application support from the team that builds the switch, plus export packing for worldwide delivery.
B2B Inquiry
Request A Wholesale Quote
Tell us your model, poles, current rating and quantity. Factory pricing and lead time within one business day.
- MOQ 100+
- OEM / Private Label
- UKF1 to UKF5
- 1 Business Day Reply
FAQ For B2B Buyers
Straight answers for purchasing and engineering teams.
What Is The Difference Between UKF1, UKF2, UKF3, UKF4 And UKF5?
UKF1 to UKF3 and UKF5 cover 1P to 4P at 20 to 63A (UKF3 also offers 45A). They differ mainly in enclosure form, terminal layout and fastener type. UKF5 uses plastic screws for specialized installs. UKF4 is the compact 1P/2P range at 10 to 35A / 250V AC.
What Does IP65/IP66 Mean On Site?
Dust-tight protection with water resistance for rain and harsh outdoor conditions. IP66 adds protection against powerful water jets. Suitable for unsheltered outdoor mounting when conduit entries are correctly sealed.
What Is The Minimum Order Quantity?
MOQ is 100 units per model. We supply distributors, OEMs and project procurement, not single-piece retail orders.
Can We Order OEM / Private Label?
Yes. Custom enclosure branding, laser-marked part numbers and neutral packaging are available for qualified wholesale programs.
Which Standards And Certificates Apply?
All UKF switches comply with IEC 60947-3. Available marks include CE, UKCA, CB, SEMKO, SAA, CQC, CCS and RoHS. IP test certificates can be provided for project files.
