IEC 60309 Industrial Plugs and Connectors | UKS Pin and Sleeve Devices

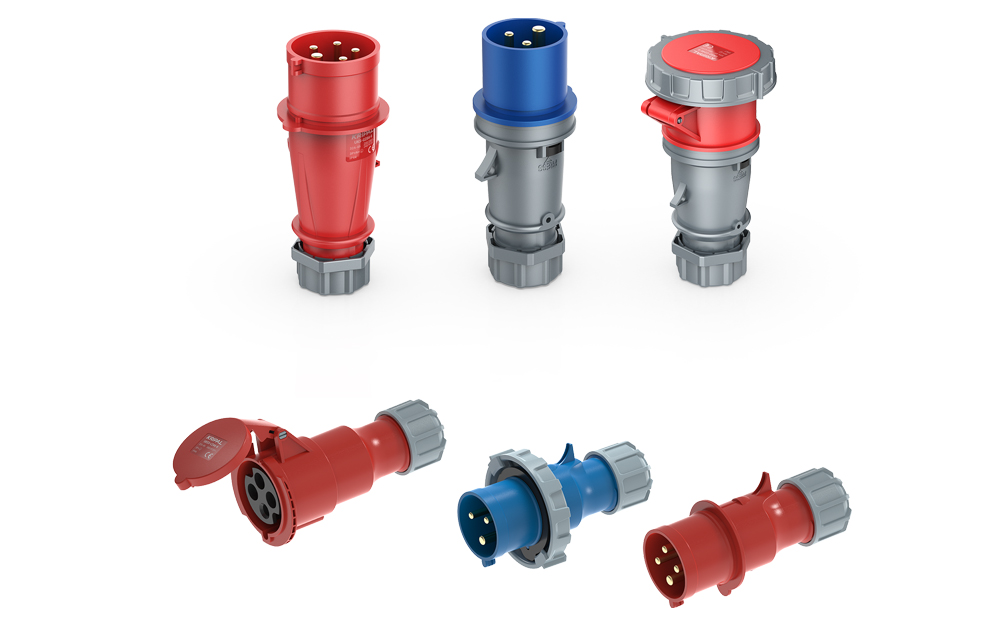

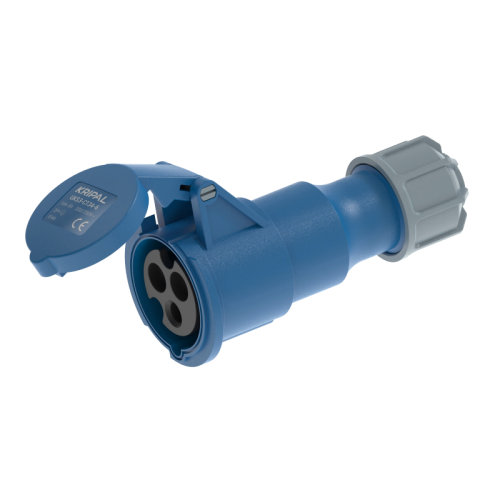

An industrial plug and connector, commonly called a pin and sleeve device, is a heavy-duty power connection interface built to IEC 60309 international standards. It features a rugged thermoplastic housing with color-coded voltage identification (blue equals 230V, red equals 400V, yellow equals 110V), a keyed clock position that prevents mismating of incompatible voltages, and an extended earth pin for first-make last-break operator safety. KRIPAL UKS series covers 16A to 125A with IP44 and IP67 environmental protection.

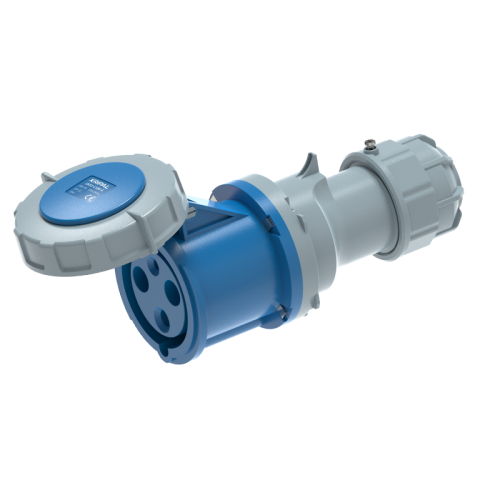

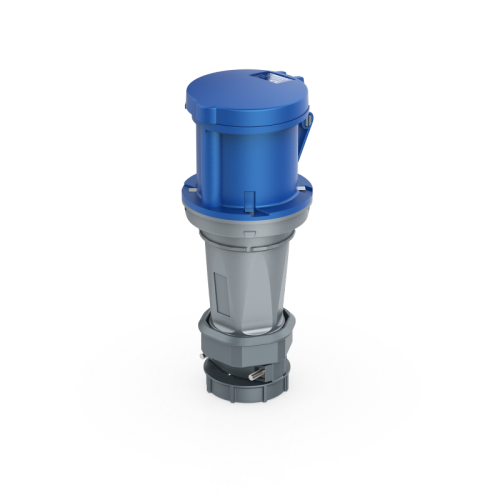

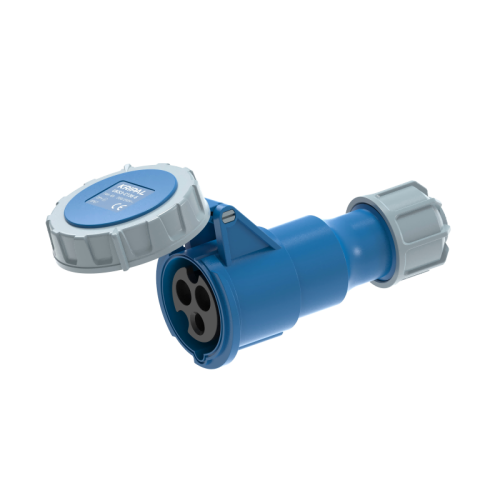

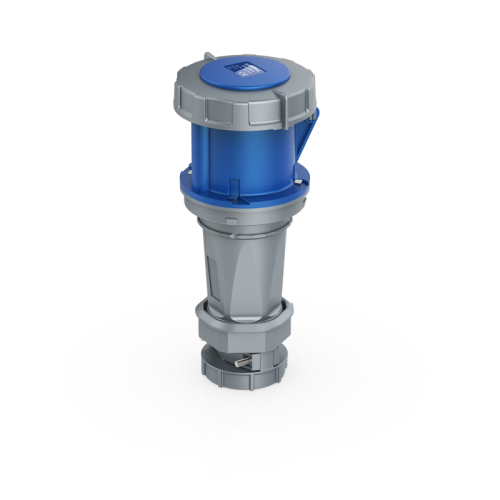

IP44 connectors protect against solid objects larger than 1mm and splashing water from any direction, suitable for covered outdoor areas and interior industrial environments. IP67 connectors are fully dust-tight and withstand temporary immersion in 1 meter of water for 30 minutes. IP67 is the mandatory requirement for construction sites, underground mining operations, marine deck installations and food processing wash-down areas. KRIPAL manufactures both protection levels across all current ratings in the UKS series.

Blue equals 200-250V range (commonly 230V single-phase, clock position 6h). Red equals 380-480V range (commonly 400V three-phase, clock position 6h). Yellow equals 100-130V range (110V UK construction reduced low voltage, clock position 4h). Within each color category, the ground sleeve clock position varies by voltage, so a blue 230V plug physically cannot be inserted into a red 400V socket. This provides intrinsic mis-mating prevention that does not rely on operator training or warning labels.

3-pole (2P+E) for single-phase 230V equipment including portable tools, lighting circuits and small pumps. 4-pole (3P+E) for three-phase 400V balanced motor loads where a neutral conductor is not required. 5-pole (3P+N+E) for three-phase 400/230V systems where both three-phase 400V and single-phase 230V power are drawn from the same outlet. The 5-pole configuration provides maximum flexibility for mixed-load power distribution boards.

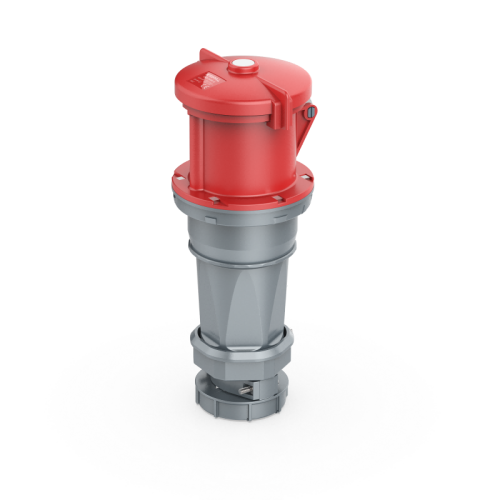

Select a connector rated at minimum 20 percent above your equipment full-load current to provide thermal headroom. 16A suits portable power tools, site lighting and small pumps. 32A handles medium machinery, welding equipment and sub-distribution boards. 63A serves heavy industrial equipment, main distribution panels and generator set outputs. 125A is designed for main incoming supply connections and large generator sets. Always verify that your supply cable cross-sectional area is adequate for the selected current rating over your installation cable length.

Housings use UV-stabilized PA6 polyamide or PC polycarbonate injection moulded in-house, rated for continuous outdoor operation from minus 25 degrees C to plus 40 degrees C. Brass contact pins and sleeves are machined from solid bar stock with nickel electroplating for corrosion resistance and consistent low contact resistance. Neoprene cable gland sealing grommets maintain the enclosure IP rating on round cable diameters from 6mm to 48mm. All materials are halogen-free and RoHS compliant.

All UKS series plugs and connectors carry CE marking supported by comprehensive IEC 60309-1 and IEC 60309-2 compliance test reports. Testing protocols cover dielectric strength verification, temperature rise measurement under rated continuous current, mechanical endurance exceeding 5000 mating cycles, cable pull-out force and IP protection level verification. Complete test documentation is available for customer quality audits and export shipment inclusion.

Yes. KRIPAL offers private label production programs where your company part numbers, voltage ratings and current specifications are laser marked directly onto the connector housing body. Custom packaging with your brand design and carton quantities configured for your electrical wholesale distribution workflow is standard. Contact our export team with your annual volume forecast to discuss minimum order quantities, production lead times and specific marking requirements.
