| Current Range (A) | Phase-failure Protection Type | Standard Type |
| 65-100 | UKK-220 100 | UKH-220/3 100 |
| 85-125 | UKK-220 125 | UKH-220/3 125 |
| 100-160 | UKK-220 160 | UKH-220/3 160 |
| 120-180 | UKK-220 180 | UKH-220/3 180 |
| 160-240 | UKK-220 240 | UKH-220/3 240 |

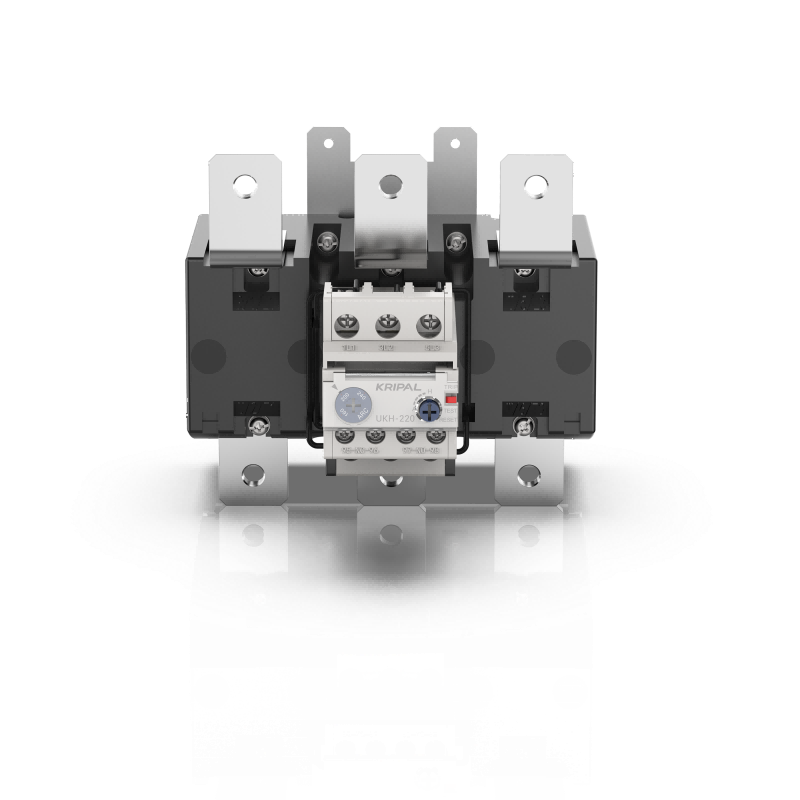

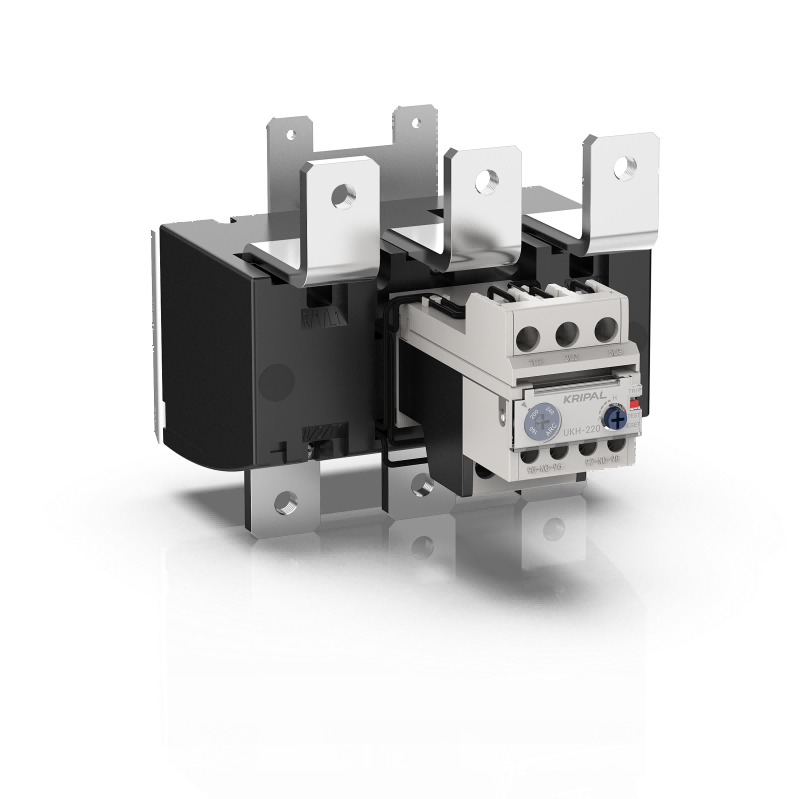

UKH-220 Thermal Overload Relay 65-240A Contact Rating 3P 1NO + 1NC
UKH Thermal Overload Relay is designed for circuits up to 660V, 50/60Hz, with a maximum rated operational current of 800A at 380V under the AC-3 duty category.
It is used for the remote switching of circuits and, when combined with a suitable AC contactor or electronic protector, forms a reliable motor starter.
This setup provides effective protection against potential overloads and is well-suited for the frequent starting and control of AC motors. This product is manufactured in compliance with the GB/T 14048.4 standard.
Get A Free Quote
WhatsApp
Share quantity, voltage and destination — we reply with MOQ, lead time and OEM options.
Key Features
- Direct Mounting with UK-9, 12, 18, and 22 series contactors for easy installation.
- Flexible Installation Options can be mounted on a standard DIN rail or via screws using the optional mounting support (AZ-22H).
- Compact Design with a slim width of only 44mm, saving valuable control panel space.
- 1NO + 1NC Tripping Contact provides reliable signalling for circuit status.
- Precise Tripping Characteristics with Class 10A tripping for the UKH-22 standard type and Class 20A for the UKK-22/L phase-failure protection type.
- Two Versions Available: the standard UKH model and the UKK model with built-in phase-failure protection.
- Wide Operating Temperature Range from -5°C to 40°C for reliable performance in various environments.
- Selectable Reset Mode allows configuration for either manual or automatic reset after tripping.
- Trip-Free Mechanism ensures the contacts remain open during an overload condition, even if the reset button is held, for maximum safety.
- Bimetal Element provides robust and reliable overload protection through a time-proven thermal operating principle.
Application
- Protects industrial motors (e.g., pumps, compressors, conveyors) from overload damage, ensuring continuous operation.
- Safeguards motors in machinery like stamping presses and injection molding machines, reducing downtime and maintenance costs.
- Ensures safe and reliable elevator operation by protecting drive motors from overload-related failures.
- Safeguards motors in generators and pumps at power plants, enhancing operational efficiency and reliability.
- Prevents overload-related failures in substations and distribution networks, ensuring grid stability and safety.
Specifications & Drawings
Need this model for a project?
Send the pole configuration, current rating and order quantity. A KRIPAL engineer will come back with pricing and lead time.
