| Model | UKGD-800 | UKGD-1000 |
| Poles | 4‑pole (paralleled to 2P‑equivalent) | 4‑pole (paralleled to 2P‑equivalent) |
| Rated Current (Ie) | 700‑800A | 1000A |
| Rated Insulation Voltage (Ui/Ue) DC‑20 | 1500V | 1500V |
| Dielectric Strength | 10kV | 10kV |
| Rated Impulse Withstand Voltage | 12kV | 12kV |
| Conductor Cross‑section (Cu/mm²) | 2×240 | 60×5×2 |
| Rated Making Capacity (A) | 8000 | |
| Rated Breaking Capacity (A) | 6400 | |
| Utilization Category | DC‑21B/PV2 | DC‑21B/PV2 |
| Mechanical Life (operations) | 10,000 | 10,000 |
| Degree of Protection | IP20/IP66 (outside enclosure) | IP20/IP66 (outside enclosure) |

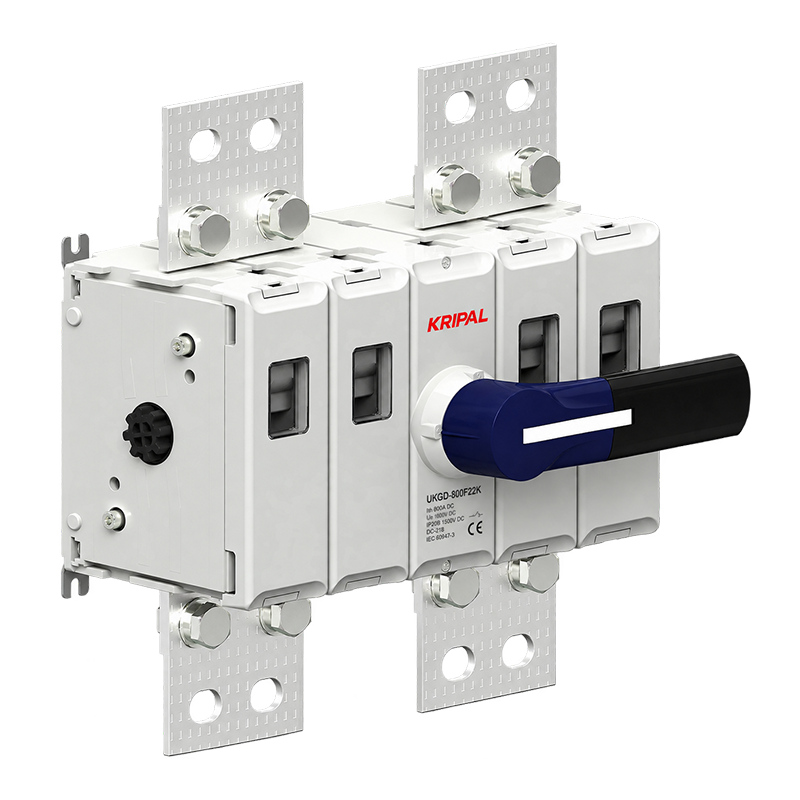

UKGD-800F22K 800A DC1500V Parallel-Pole Switch Disconnector for Large-Scale Energy Storage Systems
The UKGD-800F22K reaches 800A at DC1500V using a parallel-pole capacity-boosting design (4 poles internally paralleled to function as 2 poles), improving current-carrying capacity and heat dissipation compared to a standard 2-pole build.
It carries CE certification and is intended for high-current main disconnects in large PV plants, grid-scale storage, and heavy industrial DC systems where compact footprint and strong thermal performance both matter.
Get A Free Quote
WhatsApp
Share quantity, voltage and destination — we reply with MOQ, lead time and OEM options.
Key Features
- 800A high-capacity DC switch disconnector, rated for systems up to DC1500V
- Four-pole structure connected in parallel for use as a two-pole circuit
- Parallel-pole design increases conductive capacity and supports improved heat dissipation
- Utilization category DC-21B/PV2 for on-load switching duty
- Visible contact window for safe visual verification of switch position
- Independent arc-quenching chamber enables on-load switching and longer electrical life
- Built-in permanent magnet for polarity-free magnetic arc blow-out and fast arc extinction
- Modular design (operating mechanism, handle, contact block)
- Lockable handle for maintenance safety (LOTO compatible)
Application
- 800A battery bus isolation in containerized energy storage
- Main manual disconnect for high-power PCS cabinets
- Utility photovoltaic inverter stations
- High-current DC charging power cabinets
- Data center HVDC main distribution
- Heavy industrial DC bus systems
- Rail transit DC power distribution
- Marine and shipboard DC power equipment
Specifications & Drawings
Need this model for a project?
Send the pole configuration, current rating and order quantity. A KRIPAL engineer will come back with pricing and lead time.
