| Model | UKGD-400 | UKGD-630 |
| Poles | 2P/4P | 2P/4P |
| Rated Current (Ie) | 250-400A | 400-630A |
| Rated Insulation Voltage (Ui/Ue) DC-20 | 1500V | 1500V |
| Dielectric Strength | 10kV | 10kV |
| Rated Impulse Withstand Voltage | 12kV | 12kV |
| Conductor Cross‑section (Cu/mm²) | 120‑240 | 2×185 |
| Rated Making Capacity (A) | 4000 | 6300 |
| Rated Breaking Capacity (A) | 3200 | 5040 |
| Rated Short‑Time Withstand Current (kA) | 8kA (1s) 10kA (0.05s) 20kA (0.15s) |
8kA (1s) 10kA (0.05s) 20kA (0.15s) |
| Rated Short‑Circuit Making Capacity (kA) | 30 | 40 |
| Utilization Category | DC‑21B/PV2 | DC‑21B/PV2 |
| Mechanical Life (operations) | 10,000 | 10,000 |
| Degree of Protection | IP20/IP66 (outside enclosure) | IP20/IP66 (outside enclosure) |

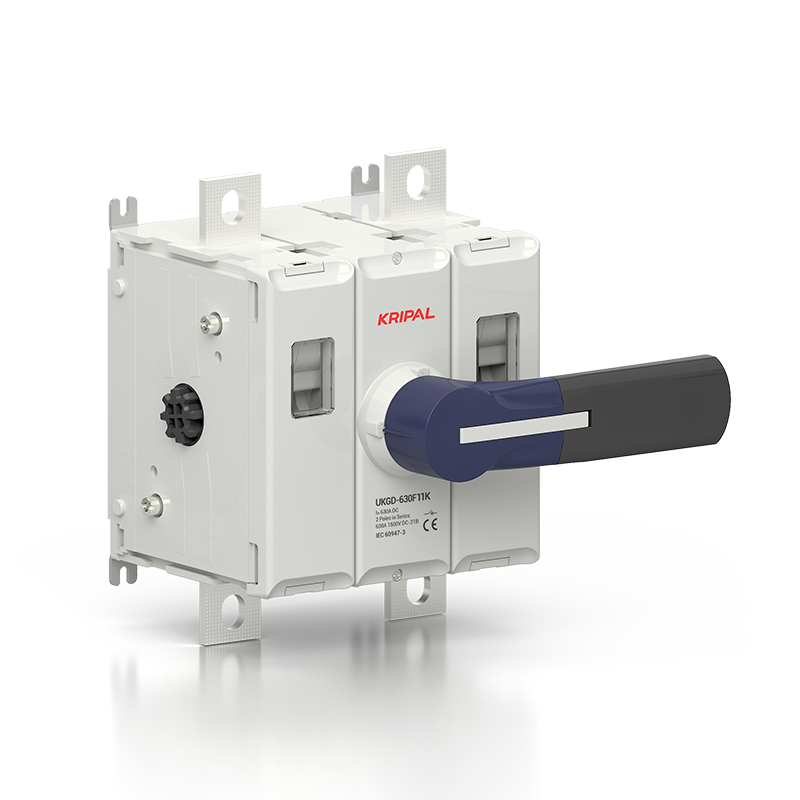

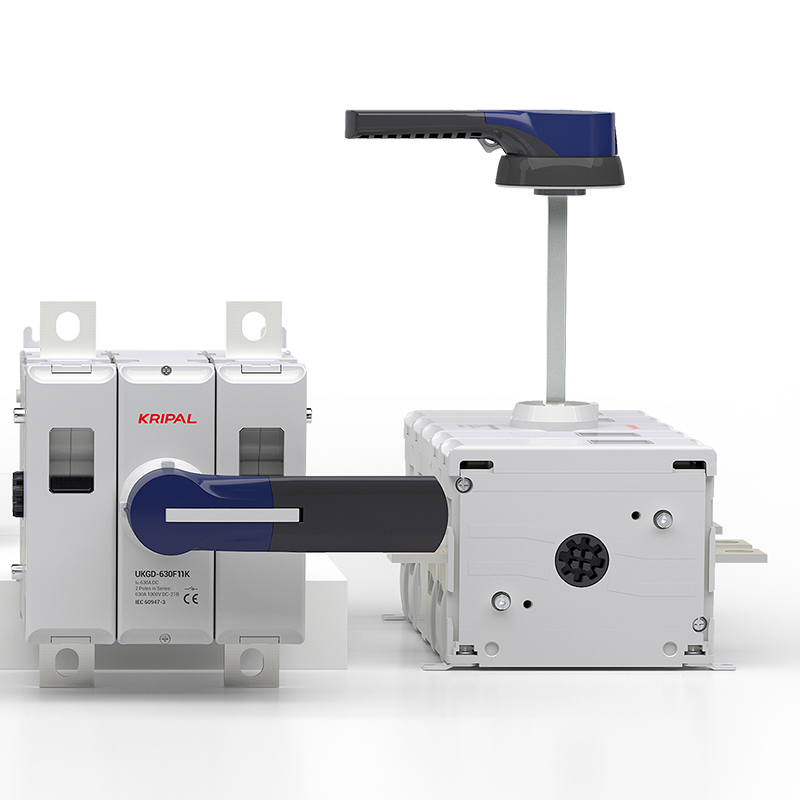

UKGD-630F11K 630A High-Current DC1500V Switch Disconnector for Battery PCS and Solar Power Stations
The KRIPAL UKGD-630F11K is a 2-pole high-current DC switch disconnector rated from 400A to 630A and engineered for DC1500V power systems.
It provides a manual load-switching and visible-isolation solution for utility-scale photovoltaic stations, battery energy storage systems, power conversion equipment, DC charging infrastructure, and industrial high-current DC distribution.
Free Quote NowKey Features
- 2-pole switch disconnector for DC1500V systems
- CE, CB, and TÜV certified, designed for DC-21B/PV2 utilization categories
- Visible contact window for safe visual verification of switch position
- Independent arc-quenching chamber enables on-load switching and longer electrical life
- Built-in permanent magnet for polarity-free magnetic arc blow-out and fast arc extinction
- Modular design (operating mechanism, handle, contact block)
- Lockable handle for maintenance safety (LOTO compatible)
Application
- Main DC bus isolation in battery energy storage containers
- High-current disconnect on the PCS DC side
- Utility-scale solar power station inverter inputs
- Central photovoltaic combiner and recombiner panels
- DC charging station power cabinets
- High-voltage DC data center distribution
- Rail transit DC traction power maintenance sections
- Heavy industrial DC distribution and marine power systems
