| Type | Ith (A) | UI (V) | Number of Pins (including earth) | Conductor Term. Size in mm² | Cable Nominal Diameter in mm² | IP Rating | Matching Plug Straight | Matching Plug Angle | Gland Nut Thread | ||
| Min. | Max. | Min. | Max. | ||||||||
| 56CSC310 | 10 | 250 | 3 Flat | 1.0 | 6 | 6 | 12.5 | 66 | 56P310 | 56PA310 | 20mm |
| 56CSC315 | 15 | 250 | 3 Flat | 1.0 | 6 | 6 | 12.5 | 66 | 56P315 | 56PA315 | 20mm |
| 56CSC320 | 20 | 500 | 3 Round | 2.5 | 16 | 9 | 28 | 66 | 56P320 | 56PA320 | 23mm |
| 56CSC332 | 32 | 500 | 3 Round | 2.5 | 16 | 9 | 28 | 66 | 56P332 | 56PA332 | 37mm |
| 56CSC410 | 10 | 500 | 4 Round | 1.0 | 6 | 6 | 16 | 66 | 56P410 | 56PA410 | 23mm |
| 56CSC420 | 20 | 500 | 4 Round | 1.0 | 6 | 6 | 16 | 66 | 56P420 | 56PA420 | 23mm |
| 56CSC432 | 32 | 500 | 4 Round | 2.5 | 16 | 9 | 28 | 66 | 56P432 | 56PA432 | 37mm |
| 56CSC440 | 40 | 500 | 4 Round | 2.5 | 16 | 9 | 28 | 66 | 56P440 | 56PA440 | 37mm |
| 56CSC450 | 50 | 500 | 4 Round | 2.5 | 25 | 9 | 28 | 66 | 56P450 | 56PA450 | 37mm |
| 56CSC510 | 10 | 500 | 5 Round | 1.0 | 6 | 6 | 16 | 66 | 56P510 | 56PA510 | 23mm |
| 56CSC520 | 20 | 500 | 5 Round | 1.0 | 6 | 6 | 16 | 66 | 56P520 | 56PA520 | 23mm |
| 56CSC532 | 32 | 500 | 5 Round | 2.5 | 16 | 9 | 28 | 66 | 56P532 | 56PA532 | 37mm |
| 56CSC540 | 40 | 500 | 5 Round | 2.5 | 16 | 9 | 28 | 66 | 56P540 | 56PA540 | 37mm |
| 56CSC550 | 50 | 500 | 5 Round | 2.5 | 25 | 9 | 28 | 66 | 56P550 | 56PA550 | 37mm |

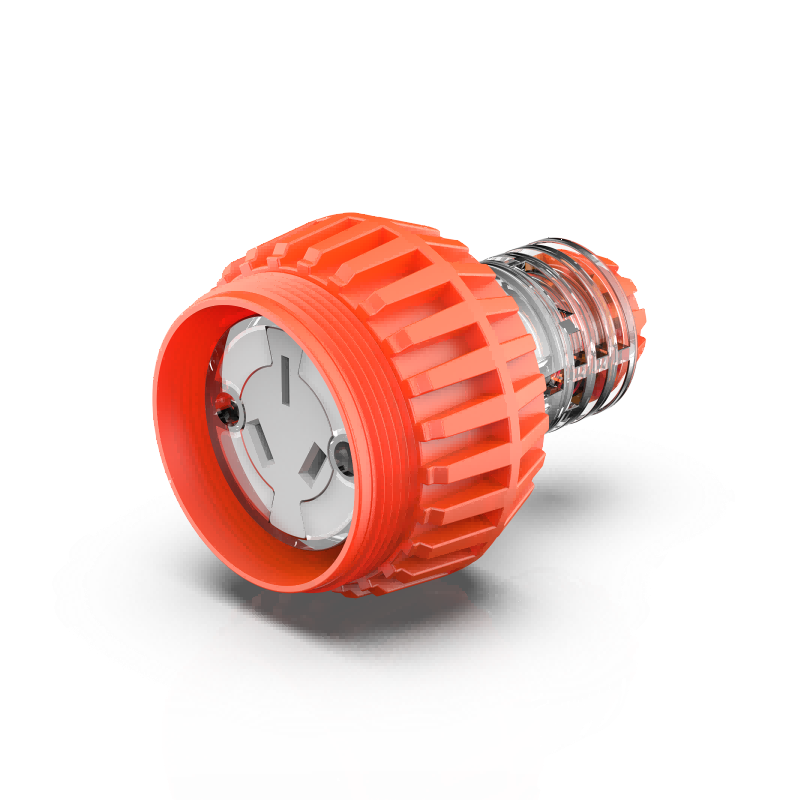

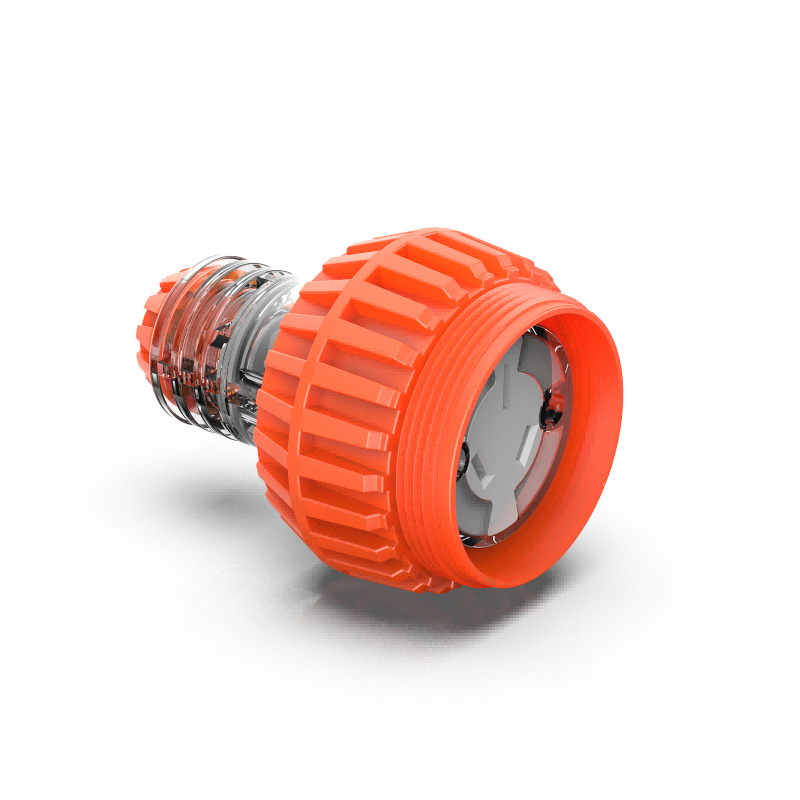

56CSC Plug Connector 3 Flat PIN 15A 250V IP66 Weatherproof Socket Outlet
The Kripal 56CSC is a heavy-duty extension socket connector featuring 3 flat pins, rated at 15A and 250V. Designed to establish robust industrial connections, this unit is perfect for creating durable extension cords used in harsh environments.
Achieves a full IP66 weatherproof rating when mated with compatible 56 Series plugs (56P/56PA), preventing dust ingress and withstanding high-pressure water jets.
Constructed from high-impact, UV-stabilised materials, ensuring structural integrity even under intense sunlight and rough handling. Equipped with an integrated hose-proof flap cap that automatically protects the socket when not in use, maintaining its IP rating. Choose the 56CSC for reliable, safe, and waterproof power extension in any industrial setting.
Free Quote NowKey Features
- Advanced three-phase connector design for versatile industrial applications
- Unified unit design suitable for multiple cord extension scenarios
- Impact-resistant and UV-stabilised construction for maximum durability
- Complete IP66 protection when used with compatible 56 Series accessories
- Integrated hose-proof cap maintains IP rating during accessory non-use
- Available in high-visibility Resistant Orange option for safety applications
- Compatible with 56P, 56PA Plugs and 56AI Appliance Inlets
Application
- Industrial control panels and machinery
- Outdoor and hazardous environment installations
- Commercial buildings and public facilities
- Data centers and communication cabinets
- Marine, agricultural, and manufacturing settings
- Any application requiring reliable, secure, and durable electrical modules
