| Type | Ith (A) | UI (V) | Number of Pins (including earth) | Conductor Term. Size in mm² | Cable Nominal Diameter in mm² | IP Rating | Matching Plug Straight | Matching Plug Angle | Gland Nut Thread | ||
| Min. | Max. | Min. | Max. | ||||||||
| 56CSC310 | 10 | 250 | 3 Flat | 1.0 | 6 | 6 | 12.5 | 66 | 56P310 | 56PA310 | 20mm |
| 56CSC315 | 15 | 250 | 3 Flat | 1.0 | 6 | 6 | 12.5 | 66 | 56P315 | 56PA315 | 20mm |
| 56CSC320 | 20 | 500 | 3 Round | 2.5 | 16 | 9 | 28 | 66 | 56P320 | 56PA320 | 23mm |
| 56CSC332 | 32 | 500 | 3 Round | 2.5 | 16 | 9 | 28 | 66 | 56P332 | 56PA332 | 37mm |
| 56CSC410 | 10 | 500 | 4 Round | 1.0 | 6 | 6 | 16 | 66 | 56P410 | 56PA410 | 23mm |
| 56CSC420 | 20 | 500 | 4 Round | 1.0 | 6 | 6 | 16 | 66 | 56P420 | 56PA420 | 23mm |
| 56CSC432 | 32 | 500 | 4 Round | 2.5 | 16 | 9 | 28 | 66 | 56P432 | 56PA432 | 37mm |
| 56CSC440 | 40 | 500 | 4 Round | 2.5 | 16 | 9 | 28 | 66 | 56P440 | 56PA440 | 37mm |
| 56CSC450 | 50 | 500 | 4 Round | 2.5 | 25 | 9 | 28 | 66 | 56P450 | 56PA450 | 37mm |
| 56CSC510 | 10 | 500 | 5 Round | 1.0 | 6 | 6 | 16 | 66 | 56P510 | 56PA510 | 23mm |
| 56CSC520 | 20 | 500 | 5 Round | 1.0 | 6 | 6 | 16 | 66 | 56P520 | 56PA520 | 23mm |
| 56CSC532 | 32 | 500 | 5 Round | 2.5 | 16 | 9 | 28 | 66 | 56P532 | 56PA532 | 37mm |
| 56CSC540 | 40 | 500 | 5 Round | 2.5 | 16 | 9 | 28 | 66 | 56P540 | 56PA540 | 37mm |
| 56CSC550 | 50 | 500 | 5 Round | 2.5 | 25 | 9 | 28 | 66 | 56P550 | 56PA550 | 37mm |

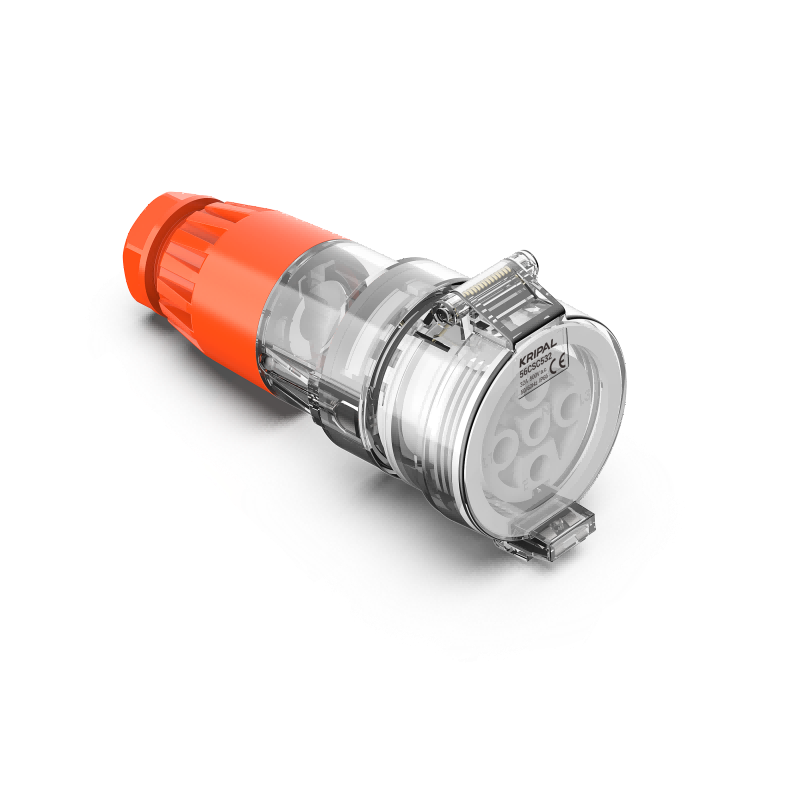

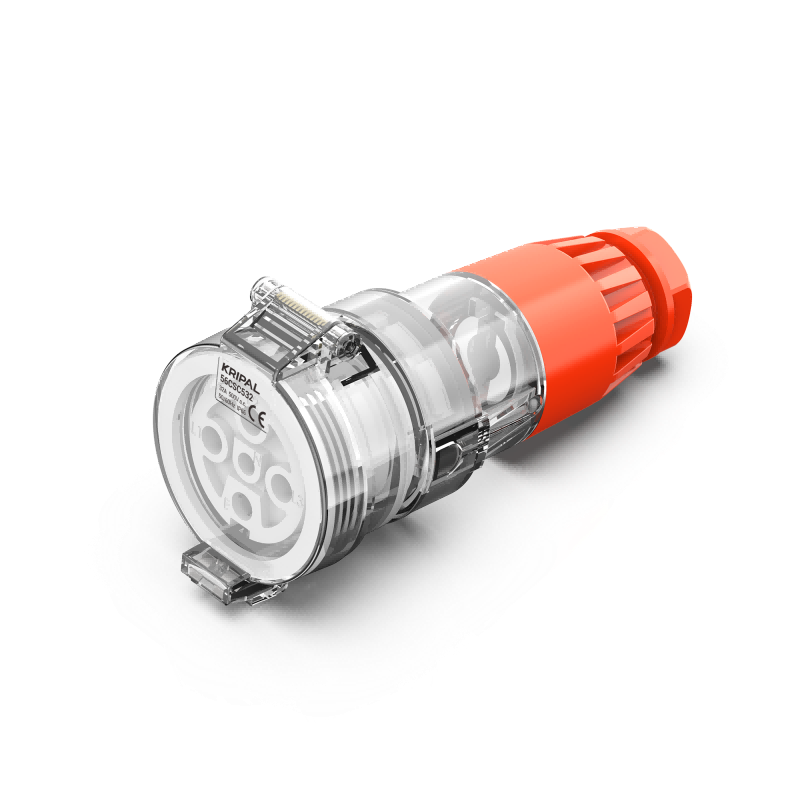

56CSC Plug Connector 5 Round PIN 32A 500V IP66 Weatherproof Socket Outlet
The Kripal 56CSC is a robust industrial connector designed to function as a reliable Weatherproof Socket Outlet for extension cord applications. Featuring a 5-round-pin configuration and rated for 32A at 500V, this unit is engineered for heavy-duty three-phase power connections in the most demanding environments.
When mated with compatible 56 Series plugs, this Weatherproof Socket Outlet offers complete protection against dust ingress and high-pressure water jets. Built from high-impact, UV-stabilised materials, ensuring longevity even under intense sunlight and rough handling.
Equipped with an integrated hose-proof flap cap that seals the socket when not in use, maintaining its environmental rating. Trust the 56CSC for secure, durable, and waterproof power distribution in any industrial setting.
Free Quote NowKey Features
- Advanced three-phase connector design for versatile industrial applications
- Unified unit design suitable for multiple cord extension scenarios
- Impact-resistant and UV-stabilised construction for maximum durability
- Complete IP66 protection when used with compatible 56 Series accessories
- Integrated hose-proof cap maintains IP rating during accessory non-use
- Available in high-visibility Resistant Orange option for safety applications
- Compatible with 56P, 56PA Plugs and 56AI Appliance Inlets
Application
- Industrial control panels and machinery
- Outdoor and hazardous environment installations
- Commercial buildings and public facilities
- Data centres and communication cabinets
- Marine, agricultural, and manufacturing settings
- Any application requiring reliable, secure, and durable electrical modules
