Wall Mounted Industrial Plugs and Sockets | CEE Surface Mount Plugs & Fixed Wall Sockets
Industrial Plug and Socket - Wall Mounted Plug and Socket
KRIPAL manufactures heavy-duty wall mounted industrial plugs and sockets designed for permanent surface-mount electrical installations in factories, workshops, construction sites, and commercial infrastructure. Available in both Standard (S) and Hexie (S3) series, our wall-mounted inlet plugs (Code D) and fixed wall sockets (Code F) offer high-impact surface mounting configurations rated at 16A, 32A, 63A, and 125A across 3-pole, 4-pole, and 5-pole (2P+E, 3P+E, 3P+N+E) layouts per IEC 60309-2 and DIN VDE 0623 standards.Engineered with high heat-resistant contact carriers, nickel-plated pins, and dual cable entry (top and bottom), these IP44 splash-proof and IP67 waterproof enclosures deliver safe, long-lasting power connection points in wet, dusty, and heavy-industrial environments.
Get A Quote

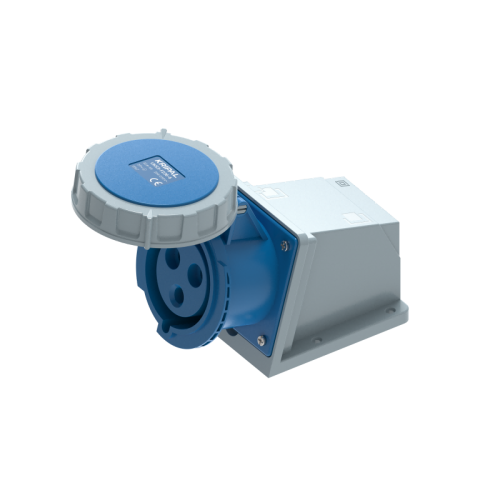

UKS3-F IP67 Wall Mount Industrial Power Socket 3P/4P/5P 32A CEE Socket
Compliant with German Industrial Standard DIN VDE 0623 and European/International Standard EN/IEC 60309-2.
Ask a Quote

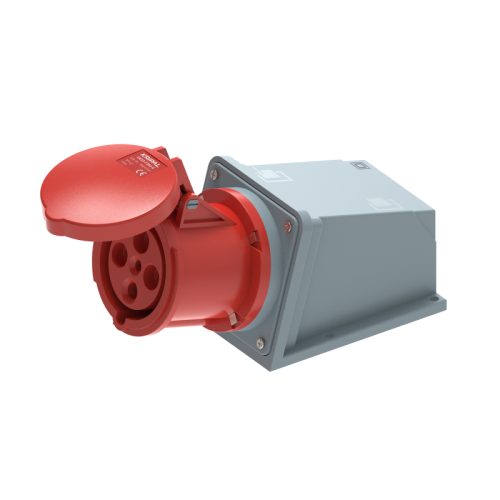

UKS3-F IP44 Wall Mount Industrial Power Socket 3P/4P/5P 63A CEE Socket
Compliant with German Industrial Standard DIN VDE 0623 and European/International Standard EN/IEC 60309-2.
Ask a Quote
UKS3-F IP67 Wall Mount Industrial Power Socket 3P/4P/5P 63A CEE Socket
Compliant with German Industrial Standard DIN VDE 0623 and European/International Standard EN/IEC 60309-2.
Ask a Quote

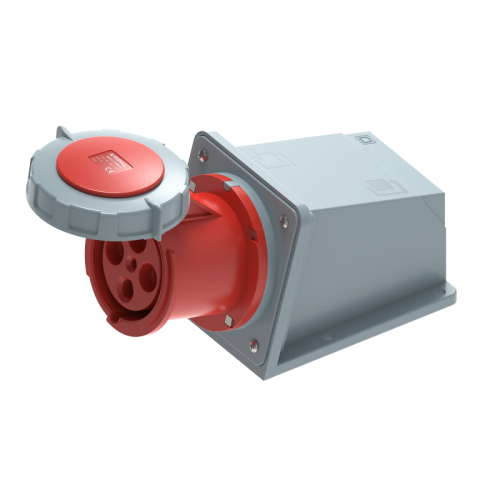

UKS3-F IP67 Wall Mount Industrial Power Socket 3P/4P/5P 125A CEE Socket
Compliant with German Industrial Standard DIN VDE 0623 and European/International Standard EN/IEC 60309-2.
Ask a QuoteWall Mounted Socket Selection Guide
A wall mounted industrial socket functions as a fixed power access point permanently installed on a wall, structure, or equipment base, providing a standardized IEC 60309 interface where machinery can connect safely. KRIPAL manufactures two primary wall-socket design architectures within the UKS series—the Standard Series (S/S2) and the Hexie Series (S3)—offering reliable surface mount configurations tailored to factory plants, outdoor infrastructure, and power distribution systems.
Mounting Configurations & Series Options of UKS Wall Sockets
Standard Wall Mounted Socket: Ergonomic Cable Routing
Features an outlet angled at 25 degrees downward from the mounting surface, naturally routing the connected cable toward the floor. This design minimizes mechanical bending stress at the cable entry, reduces strain on internal terminals, and prevents water pooling around the connector seal in outdoor or washdown environments. It includes dual cable entries (top and bottom with M25–M50 threads) for flexible conduit or gland wiring.
Hexie Series (S3) Wall Mounted Socket: Modern Compact Footprint
Designed with a 15-degree forward tilt and a streamlined enclosure footprint for modern industrial machinery and architectural installations. The Hexie Series (S3) features unified base dimensions (80mm and 109mm widths) for quick alignment, optimized internal wiring space, and enhanced aesthetics without compromising on robust mechanical impact resistance.
High-Current Heavy Duty Options: Soft-Touch & Thermal Resilience
For high-capacity power distribution, 63A and 125A UKS wall mounted sockets incorporate soft-touch contact technology for easy insertion and extraction forces. Built with highly heat-resistant contact carriers and nickel-plated brass contacts, these heavy-duty units prevent contact oxidation and withstand high-temperature operation under continuous full-load conditions.
Current Ratings and Material Construction
Available in 16A, 32A, 63A, and 125A ratings with 3P, 4P, and 5P (2P+E, 3P+E, 3P+N+E) configurations in both IP44 splash-proof and IP67 waterproof ratings. Housings are crafted from high-impact UV-stabilized engineered polymers, equipped with neoprene sealing gaskets and removable threaded knockouts to handle conductor cross-sections up to 35mm².
Specify Your Wall Mounted Socket Installation
- CAD and Dimensional Documentation: Download 2D mounting hole pattern drawings, 3D STEP files, and dual cable entry position data (M25–M50 threaded knockouts) for panel layout integration in EPLAN, AutoCAD Electrical, and SolidWorks.
- Installation Engineering Support: Our technical team provides wiring guidance, grounding position (clock hour) verification, and terminal cross-section sizing (1.5mm² to 35mm²) along with IP44/IP67 sealing protocols for your specific mounting surface, conduit orientation, and environmental exposure classification.
- Factory Direct Project Programs: Contact our export team for volume pricing, OEM/ODM customization, and coordinated delivery scheduling across multi-site electrical infrastructure projects.
Wall Mounted Socket Installation Environments
KRIPAL wall mounted industrial sockets create permanent power access points in industrial and commercial facilities where heavy-duty equipment connects to the fixed electrical infrastructure through a standardized, sealed IEC 60309 interface.
Factory Production Floor Machine Supply Points
IP67 angled wall sockets installed at regular intervals along factory walls provide 32A and 63A power connections for portable welding machines, conveyor drive systems, and assembly line test stations. The 25-degree downward-angled socket design prevents coolant splash and cleaning fluid ingress during end-of-shift wash-down procedures.
CCommercial Kitchen & Food Processing Power Supply
IP67 surface mount wall sockets supply 16A and 32A connections for combination ovens, industrial dishwashers, and walk-in freezer compressor units. The sealed enclosure withstands high-pressure washdowns, moisture, and temperature fluctuations, preventing grease vapor ingress into internal electrical contact assemblies.
Construction Site Outgoing Feeder & Distribution Sockets
Heavy-duty 63A and 125A wall mounted sockets installed on site distribution enclosures provide main outgoing feeder connections to sub-distribution units across construction zones. Engineered with soft-touch contact technology and high heat-resistant contact carriers, these rugged IP67 enclosures ensure smooth insertion/extraction and prevent overheating during continuous full-load operations.
Equip Your Facility with Wall Mounted Power Points
- Site Layout Planning Support: Send us your facility floor plan and our engineers will recommend exact socket positions, current ratings (16A–125A), pin layouts (3P/4P/5P), clock position (e.g. 6h), and IP44/IP67 protection levels tailored to connected equipment specifications and local environmental conditions.
- Compliance Documentation Package: Complete CE, IEC 60309-1/-2, DIN VDE 0623, and RoHS certification packages prepared for your electrical installation compliance file and periodic authority inspection submission requirements.
- Project Volume Sourcing: Contact our export team for bulk project pricing, custom labeling/OEM options, and phased delivery timing coordinated to your multi-site electrical installation program schedule.
Behind KRIPAL Wall Socket Production
KRIPAL manufactures wall mounted industrial sockets on the same integrated production campus as plugs and connectors, ensuring matched contact geometry, consistent sealing performance, and single-source logistics for electrical wholesalers, panel builders, and installation contractors across global markets.
Co-Engineered Plug and Socket Compatibility
Wall sockets and their mating plugs share identical contact pin geometry, sealing ring dimensions, and latch engagement profiles. This co-engineered system ensures verified contact insertion depth, uniform IP seal compression force, and mechanical latching as a fully tested mating assembly.
ISO 9001 Quality Control & Mounting Integrity Testing
Every production batch undergoes strict sample testing for mounting base flatness, fixing hole positional accuracy, and gasket compression consistency. IP44 splash-proof and IP67 immersion verifications are performed on socket assemblies bolted to standard mounting plates, replicating real-world installation conditions.
Complete Series Coverage from a Single Manufacturer
Source both Standard (S/S2) and Hexie (S3) wall mounted socket series directly from KRIPAL across all current ratings (16A, 32A, 63A, and 125A) and pole layouts (3P, 4P, 5P). This single-vendor approach simplifies procurement, reduces qualification workload, and standardizes installation dimensions across entire projects.
Bundled Socket and Plug Export Shipments
Combine wall mounted sockets with mating plugs, in-line connectors, and switchgear enclosures on a single purchase order and bill of lading. Consolidated container loading reduces customs clearance fees and ocean freight costs compared to splitting orders across multiple suppliers.
Wholesaler Buffer Stock & Inventory Programs
Maintain agreed buffer stock levels at our Zhejiang manufacturing facility for fast-moving socket configurations. Supply contracts can be managed against rolling 12-week demand forecasts with guaranteed access to emergency stock for urgent contractor project schedules.
Private Label & Laser-Marked Customization
Custom part numbers, company logos, voltage ratings, and wiring diagrams can be permanently laser-marked on socket enclosures. OEM/ODM packaging options are fully tailored to your warehouse logistics and distributor shelf display requirements.
Complete Export Documentation Package
Every export container includes factory test reports, CE / IEC 60309 test certificates, and Certificates of Origin (CO) formatted for smooth destination customs clearance and local authority compliance filing.
Direct Engineering Communication Without Intermediaries
Contractors and panel builders communicate directly with KRIPAL application engineers for socket selection, mounting compatibility, and IP performance advice in harsh industrial environments—eliminating multi-layered queues for technical support.
