| Parameter | ABE 100 | ABE 250 |
| Rated current at 40°C (A) | 10, 15, 20, 30, 40, 50, 60, 75, 100, 125 | 100, 125, 150, 175, 200, 225, 250 |
| Poles | 1, 2, 3, 4 | 1, 2*, 3, 4 |
| Rated insulation voltage Ui (50/60Hz) (V) | 690 | 690 |
| Max rated service voltage (Um) – AC (V) | 600 | 600 |
| Rated impulse withstand voltage (Uimp) (kV) | 6 | 6 |
| Ultimate breaking capacity Icu (kA) | AC 600V: 5
AC 480V/500V: 7.5 AC 440V/460V: 10 AC 415V: 10 AC 380V: 14 AC 220V/240V: 25 |
AC 600V: 7.5
AC 480V/500V: 10 AC 440V/460V: 18 AC 415V: 18 AC 380V: 18 AC 220V/240V: 35 |
| Service breaking capacity Ics (% of Icu) | 50% | 50% |
| Connection method | Pressed terminal | Pressed terminal |

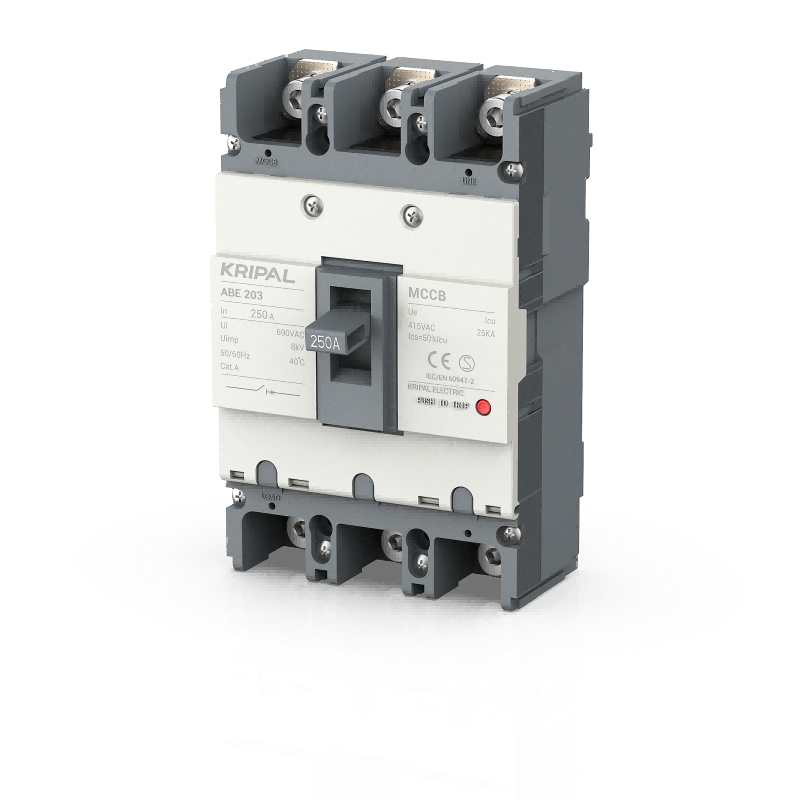

ABE-203 MCCB 3 Pole 250A Moulded Case Circuit Breaker CE Certified
ABE Series Plastic Case Circuit Breakers represent cutting-edge technology designed for the 21st century. These breakers feature advanced engineering and high-performance specifications, with a compact and aesthetically pleasing design. Select models incorporate microelectronic technology, delivering intelligent control capabilities.
Compliant with GB/T 14048.2 “Low-voltage switchgear and controlgear – Low-voltage circuit breakers” and IEC 60947-2 “Low-voltage switchgear and controlgear – Part 2: Circuit-breakers” standards.
Free Quote NowKey Features
- Rated for voltages up to 690V and currents up to 1600A in 50Hz AC systems.
- Delivers reliable protection against overload, short-circuit, and under-voltage faults.
- Select models feature intelligent control with advanced microelectronics technology.
- Compact and aesthetically pleasing design to save valuable panel space.
- Built for harsh conditions, rated for Pollution Degree 3 and Installation Category III.
- Wide operating temperature range from -5°C to +40°C, suitable for altitudes up to 2000m.
- Clear power source (1,3,5,N1) and load (2,4,6,N2) terminal markings prevent incorrect wiring.
Applications
- Protects industrial power systems from electrical faults like overloads and short-circuits.
- Controls the infrequent starting and stopping of motors in various applications.
- Provides reliable circuit protection for commercial and industrial distribution systems.
