| Type | Rated Operational Voltage Ue(-50Hz) | Rated-enclosed Thermal current (A) | Number of Pins (including earth) | Cable entry diameter | Terminal Capacity | ||
| Min. | Max. | Min. | Max. | ||||
| 56P410 Straight | 500 | 10 | 4 | 6 | 16 | 2.5 | 4 |
| 56P420 Straight | 500 | 20 | 4 | 6 | 16 | 2.5 | 4 |
| 56P432 Straight | 500 | 32 | 4 | 9 | 28 | 2.5 | 16 |
| 56P440 Straight | 500 | 40 | 4 | 9 | 28 | 2.5 | 16 |
| 56P450 Straight | 500 | 50 | 4 | 9 | 28 | 2.5 | 25 |
| 56P510 Straight | 500 | 10 | 5 | 6 | 16 | 2.5 | 4 |
| 56P520 Straight | 500 | 20 | 5 | 6 | 16 | 2.5 | 4 |
| 56P532 Straight | 500 | 32 | 5 | 9 | 28 | 2.5 | 16 |
| 56P540 Straight | 500 | 40 | 5 | 9 | 28 | 2.5 | 16 |
| 56P550 Straight | 500 | 50 | 5 | 9 | 28 | 2.5 | 25 |
| 56P610 Straight | 500 | 10 | 6 | 6 | 16 | 2.5 | 4 |
| 56P710 Straight | 500 | 10 | 7 | 6 | 16 | 2.5 | 4 |
| 56P720 Straight | 500 | 20 | 7 | 6 | 16 | 2.5 | 4 |

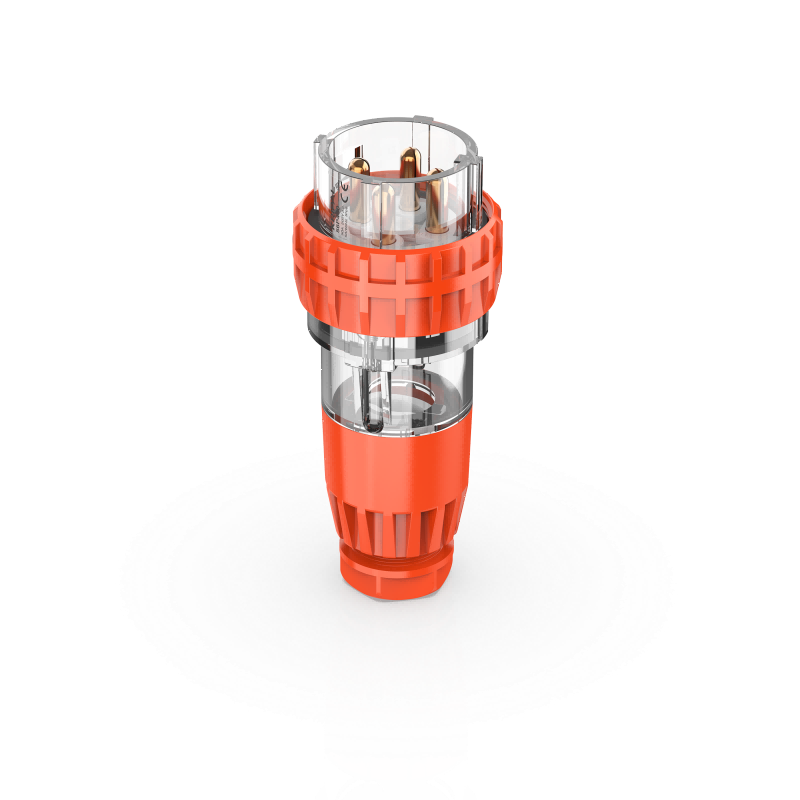

56P450 Plug Top Straight 4 Round PIN 50A 500V IP66
KRIPAL 56 Series industrial plugs deliver robust performance with complete IP66-rated protection, ensuring exceptional resistance against dust and high-pressure water jets.
Engineered for seamless compatibility with the entire 56 Series cord connectors and socket outlets, these plugs feature an innovative transparent housing that enables instant visual inspection of terminal connections and cable entry points without requiring disassembly.
Available in versatile 4 to 7-pin configurations with current ratings spanning from 10A to 50A, this comprehensive product line offers adaptable solutions for diverse industrial power connection requirements across multiple applications and environments.
Free Quote NowKey Features
- IP66-rated construction for complete dust and water jet protection
- Transparent housing for instant visual inspection of terminals and cable entry
- Wide current range from 10A to 50A, suitable for various power requirements
- Multiple pin configurations (4 to 7 pins) for versatile application compatibility
- Maintenance-friendly design enabling quick checks without disassembly
- Durable construction ensures reliability in harsh industrial environments
Application
- Industrial control panels and machinery
- Outdoor and hazardous environment installations
- Commercial buildings and public facilities
- Data centers and communication cabinets
- Marine, agricultural, and manufacturing settings
- Any application requiring reliable, secure, and durable electrical modules
