| Type | Switch Description | Rated Thermal Current Enclose (A) | Rated Operational Voltage Ue(-50Hz) (V) | Utilization Categories | M Rating | Cable Cross Section Solid or Stranded mm² | Number of Socket Pins (Including Earth) | IP Protection class | |||
| AC21A | AC22A | AC23A | Min | Max | |||||||
| 56CV410 | 3 P | 10A | 500V | 10 | 10 | 10 | M100 | 1.5 | 6 | 4 | IP66 |
| 56CV420 | 3 P | 20A | 500V | 20 | 20 | 20 | M150 | 2.5 | 6 | 4 | IP66 |
| 56CV432 | 3 P | 32A | 500V | 32 | 32 | 28 | M180 | 4 | 16 | 4 | IP66 |
| 56CV440 | 3 P | 40A | 500V | 40 | 40 | 35 | M200 | 10 | 16 | 4 | IP66 |
| 56CV450 | 3 P | 50A | 500V | 50 | 50 | 40 | M250 | 10 | 25 | 4 | IP66 |
| 56CV510 | 3 P | 10A | 500V | 10 | 10 | 10 | M100 | 1.5 | 6 | 5 | IP66 |
| 56CV520 | 3 P | 20A | 500V | 20 | 20 | 20 | M150 | 2.5 | 6 | 5 | IP66 |
| 56CV532 | 3 P | 32A | 500V | 32 | 32 | 28 | M180 | 4 | 16 | 5 | IP66 |
| 56CV540 | 3 P | 40A | 500V | 40 | 40 | 35 | M200 | 10 | 16 | 5 | IP66 |
| 56CV550 | 3 P | 50A | 500V | 50 | 50 | 40 | M250 | 10 | 25 | 5 | IP66 |
| 56CV610 | 3 P | 10A | 500V | 10 | 10 | 10 | M100 | 1.5 | 6/2.5 | 6 | IP66 |
| 56CV710 | 3 P | 10A | 500V | 10 | 10 | 10 | M100 | 1.5 | 6/2.5 | 7 | IP66 |
| 56CV720 | 3 P | 20A | 500V | 20 | 20 | 20 | M150 | 2.5 | 6/2.5 | 7 | IP66 |

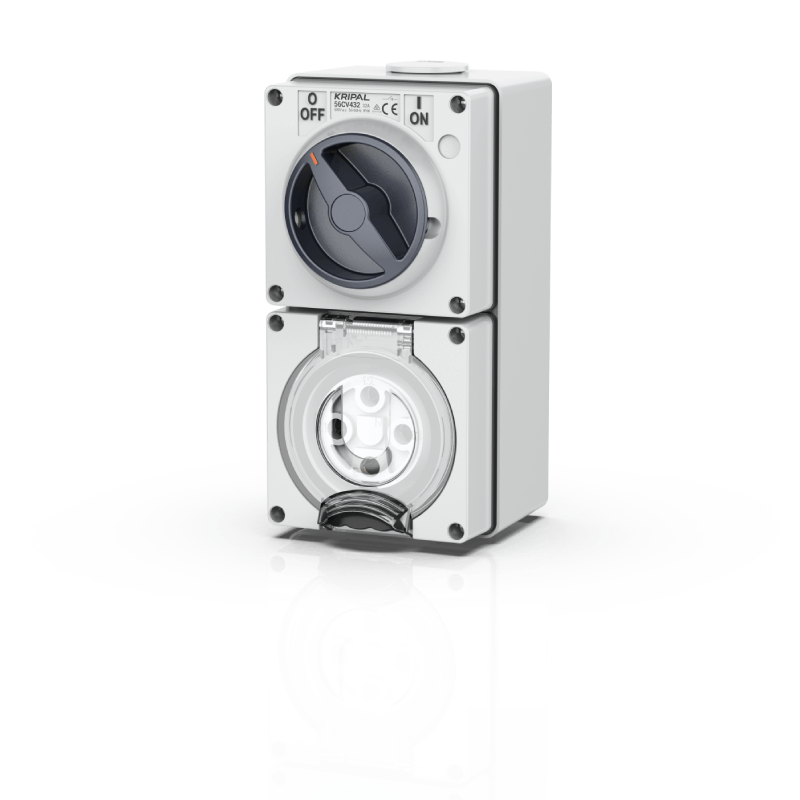

56CV Combination Switched Socket Outlet 3P 500V 10A-50A IP66 Waterproof Isolator Switch
KRIPAL 56CV Series waterproof combination switch socket integrates two modular units within a compact housing, offering a versatile and reliable solution for various electrical needs. The system combines selectable 56SW waterproof isolating switches and 56SO Series sockets, designed to work in seamless coordination. Its thoughtfully engineered structure ensures minimal space usage while maintaining excellent sealing performance.
All internal connections are pre-wired at the factory, eliminating the need for on-site terminal box wiring. This streamlined design significantly reduces installation time and minimizes potential wiring errors during setup.
The IP66-rated socket outlet features a patented transparent hinged flap that automatically snaps shut and locks securely when the plug is removed, creating an instant IP66 seal. The transparent design allows for quick identification of pin configuration without needing to open the cover, combining convenience with complete protection.
Free Quote NowKey Features
- Waterproof, Dustproof & Chemical-Resistant
- Permanent Laser-Engraved Ratings
- Dirt-Reducing Screw Caps & Contoured Profile
- Visible Sealing Gasket & Stainless Steel Screws
- 8mm Padlock-Compatible ON/OFF Switch
- Redesigned Transparent Cover for Better Visibility
- Automatic Cover Closure to Maintain IP Rating
Application
- Industrial control panels and machinery
- Outdoor and hazardous environment installations
- Commercial buildings and public facilities
- Data centers and communication cabinets
- Marine, agricultural, and manufacturing settings
- Any application requiring reliable, secure, and durable electrical modules
