| Type | UI (50Hz) Insulation voltage | Ue (50Hz) Working Voltage | Power frequency voltage (KV) | Rated irregular load (A)
|
Rated working system: uninterrupted | Number of poles | Single strand cable cross-section | Cable shares many cross-section | En60947-3-1 | AC23
Use of categories |
Sec
Short-term rated voltage (A)/Sec |
Breaking capacity | ||
| Min | Max | Min | Max | |||||||||||
| UKF4-110 | 250 | 250 | 1.5 | 10 | Yes | 1P | 2.5 | 16 | 2.5 | 10 | 250 | 10 | 240 | 0.5 |
| UKF4-116 | 250 | 250 | 1.5 | 16 | Yes | 1P | 2.5 | 16 | 2.5 | 10 | 250 | 16 | 240 | 0.5 |
| UKF4-120 | 250 | 250 | 1.5 | 20 | Yes | 1P | 2.5 | 16 | 2.5 | 10 | 250 | 20 | 240 | 0.5 |
| UKF4-216 | 250 | 250 | 1.5 | 16 | Yes | 1P | 2.5 | 16 | 2.5 | 10 | 250 | 16 | 240 | 0.5 |
| UKF4-220 | 250 | 250 | 1.5 | 20 | Yes | 2P | 2.5 | 16 | 2.5 | 10 | 250 | 20 | 240 | 0.5 |
| UKF4-235 | 250 | 250 | 1.5 | 35 | Yes | 2P | 2.5 | 16 | 2.5 | 10 | 250 | 20 | 240 | 0.5 |

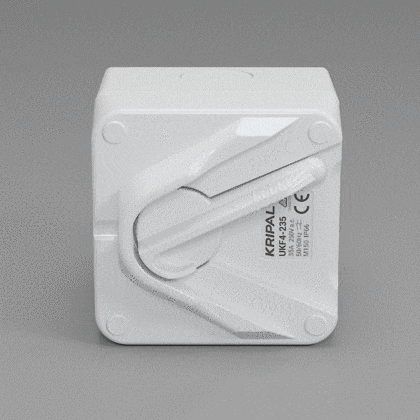

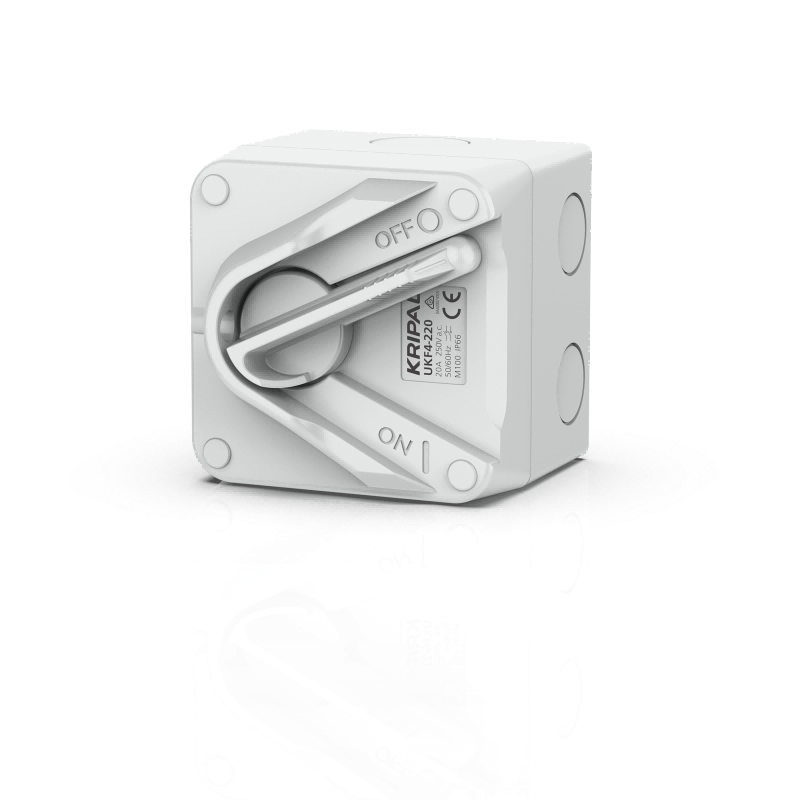

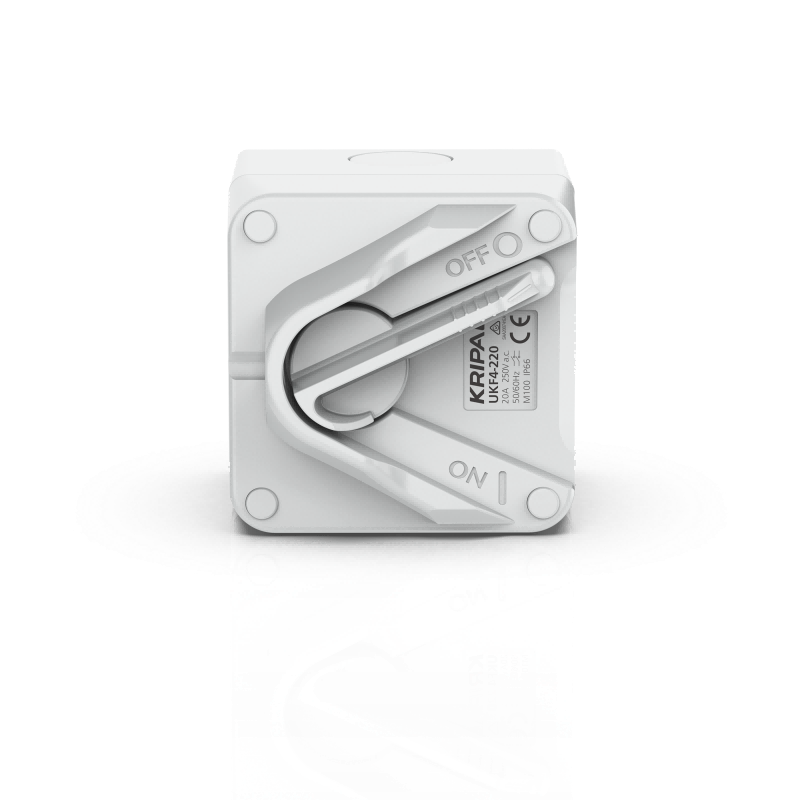

UKF4 Weatherproof Isolating Switch 1P/2P 10A 20A 35A Outdoor Isolator Switch IP66
KRIPAL UKF Series Weather-Resistant Isolating Switches are engineered for reliable performance in diverse outdoor conditions.
This comprehensive range includes single, double, and triple-pole switches with current ratings from 20A to 63A.
Designed for durability and safety, these base-mounted switches facilitate easier termination and offer greater wiring space within compact dimensions.
Each unit comes complete with essential conduit accessories and complies with the IEC60947-3 standard, available in standard grey and white finishes.
Free Quote NowKey Features
- Robust Weatherproof Construction: Built with impact-resistant base and cover components, sealed by a weather-resistant gasket to withstand harsh environmental conditions and physical impact.
- Secure & Efficient Termination: Features fixed Earth and Neutral connector bars with dual clamping screws per tunnel, ensuring consistent cable stripping lengths and secure connections. Terminal bore size is 5-6mm.
- Enhanced Safety Design: Includes insulating caps that cover base mounting screws for safe installation on metal structures, preventing contact with live cables. A 7mm diameter hole allows for padlocking the lever in the OFF position.
- Protected Lever Operation: Deep-mounted barriers safeguard the operating lever against accidental switching or physical damage.
- Complete Conduit Connectivity: Supplied with screwed conduit plugs and reducers for easy and secure connection to standard 25mm or 20mm conduits (screw caps must be installed to ensure IP Rating).
Application
- Industrial and Commercial Outdoor Power Distribution
- Infrastructure and Public Utility Installations
- Marine and Offshore Environments
- Construction Sites and Temporary Installations
- Agricultural and HVAC Systems
