| Type | Rated current | AC3(IEC60947) | AC1 Ith | Aux. Contacts | |||
| 220~240V | 380~440V | 500~550V | 690V | ||||
| UKC1–6M | 6A | 1.5KW (7A) | 2.2KW (6A) | 3KW (5A) | 3KW (4A) | 20A | 1NO or 1NC |
| UKC1–9M | 9A | 2.2KW (9A) | 4KW (9A) | 3.7KW (6A) | 4KW (5A) | 20A | 1NO or 1NC |
| UKC1–12M | 12A | 3KW (12A) | 5.5KW (12A) | 4KW (7A) | 4KW (5A) | 20A | 1NO or 1NC |
| UKC1–16M | 16A | 4KW (15A) | 7.5KW (16A) | 5.5KW (9A) | 4KW (5A) | 20A | 1NO or 1NC |

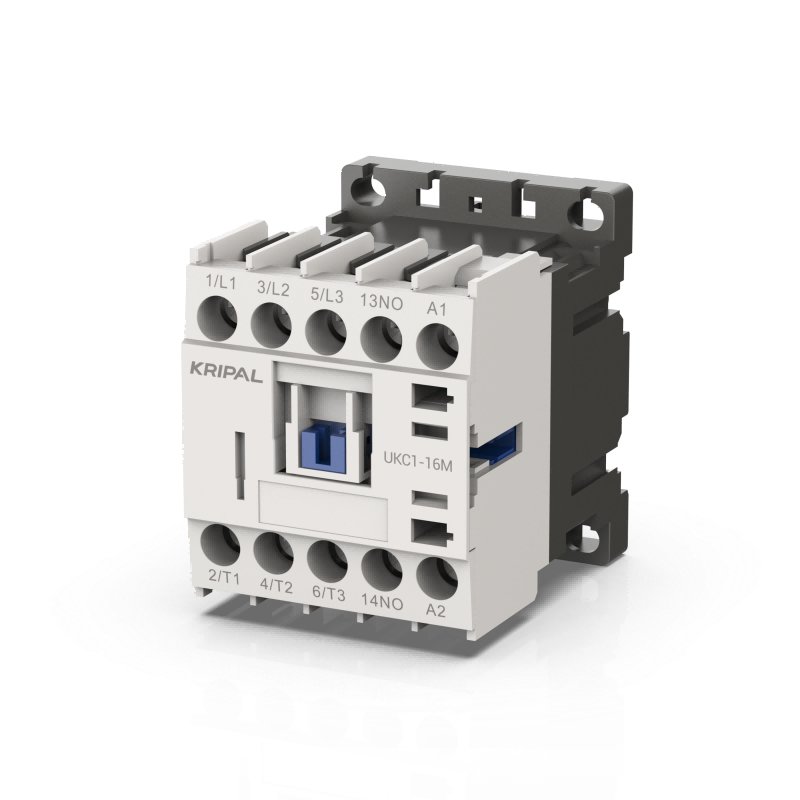

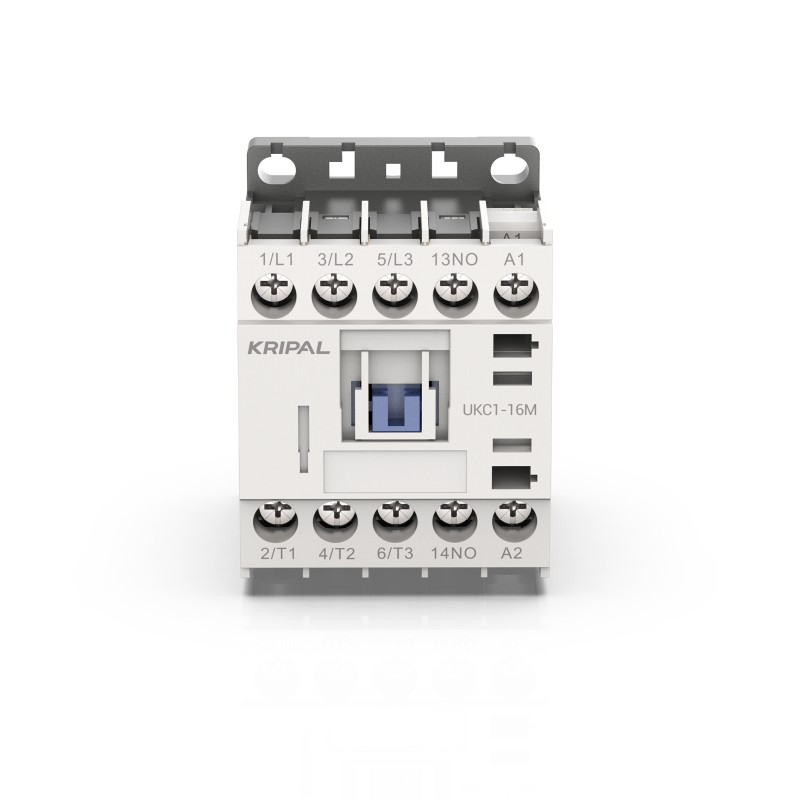

UKC1 Mini Contactor 6/9/12/16A 3-Pole 24V 110V 220V 380V AC Coil
UKC1 Mini Contactor is an electrical component used for circuit switching. With its compact size, it effectively saves installation space, making it ideal for applications with limited space. It supports a variety of control voltages. For AC operation, the voltage range is typically from 24V to 600V, with frequencies of 50Hz or 60Hz.
Designed for exceptional durability, it boasts a compact and robust structure that integrates key components such as the coil, main contacts, and auxiliary contacts.
This solid construction guarantees a long service life and superior performance, even under demanding operating conditions. The product complies with industry standards and electrical safety regulations, including IEC 60947-5-1 and IEC 60947-4-1.
Free Quote NowKey Features
- Designed for motor control applications
- 3 main contact pairs plus 1 auxiliary contact
- AC Coil voltage, 50/60 Hz Optional:
24, 36, 42, 48, 110, 115, 120, 127, 200/208, 220, 220/230, 230/240, 256, 277, 380/400, 400, 440, 480, 500, 550V AC
Application
- Industrial Automation: For motor control in machinery (e.g., injection molding, conveyors).
- Home Appliances: Powering and controlling devices like AC units and compressors.
- Transportation: Used in small vehicles for engine starting and hydraulic systems.
- Suitable for various motor types (e.g., three-phase asynchronous motors).
- Enables motor forward/reverse control and speed regulation, ensuring safe and stable motor operation.
