| Model | Type | Rated Current and Voltage | Pipe connection (inserted type) | Dimension (mm) | Protection grade | Raw materials | Color |
| D9020Z | Without Terminal | – | 4 x ESM20 applicable conductor Φ6-13mm | 88x88x53 | IP54/IP65 | PC | Grey, RAL7035 |
| D9025Z | With Terminal |
2.5mm²,20A,AC400V 3~ 4mm²,25A,AC250V 1~ |
IP54/IP65 | PC | Grey, RAL7035 | ||
| D9040Z | Without Terminal | – | 4 x ESM25 applicable conductor Φ9-17mm | 98x98x61 | IP54/IP65 | PC | Grey, RAL7035 |
| D9045Z | With Terminal |
4mm²,25A,AC400V 3~ 6mm²,32A,AC250V 1~ |
IP54/IP65 | PC | Grey, RAL7035 | ||

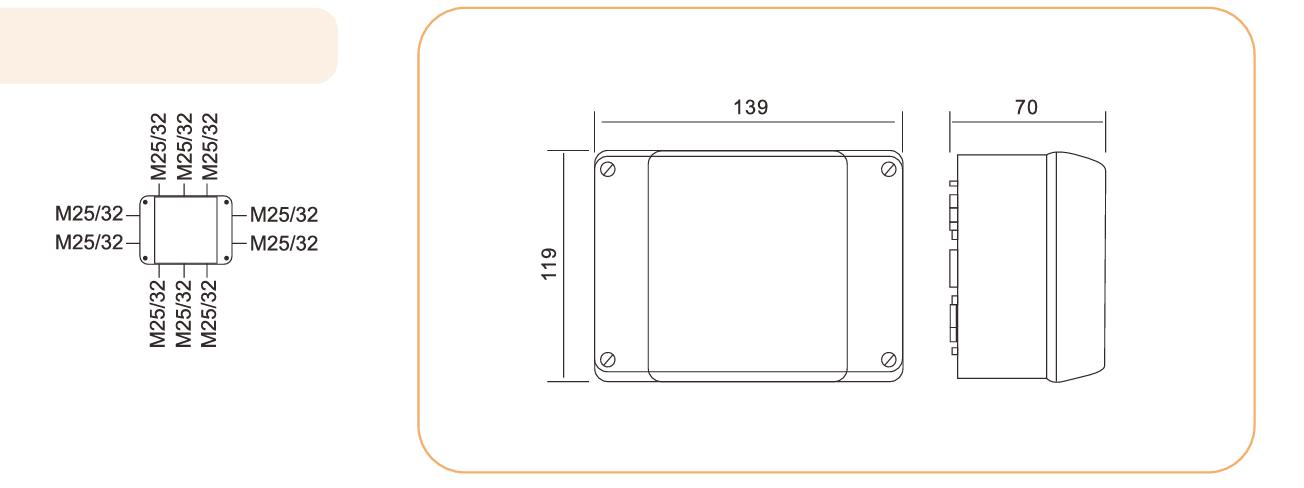

| K9060Z | Without Terminal | – | 3 x ESM32 applicable conductor Φ9-23mm | 139x119x70 | IP54/IP65 | PC | Grey, RAL7035 |
| K9065Z | With Terminal |
6mm²,32A,AC400V 3~ 10mm²,50A,AC250V 1~ |
IP54/IP65 | PC | Grey, RAL7035 | ||
| K9100Z | Without Terminal | – | 3 x ESM32 applicable conductor Φ9-23mm | 167x125x82 | IP54/IP65 | PC | Grey, RAL7035 |
| K9105Z | With Terminal |
10mm²,50A,AC400V 3~ 16mm²,65A,AC250V 1~ |
IP54/IP65 | PC | Grey, RAL7035 | ||
| K9250Z | Without Terminal | – | 3 x ESM40 applicable conductor Φ17-30mm | 200x160x98 | IP54/IP65 | PC | Grey, RAL7035 |
| K9255Z | With Terminal |
25mm²,85A,AC400V 3~ 35mm²,100A,AC250V 1~ |
IP54/IP65 | PC | Grey, RAL7035 |

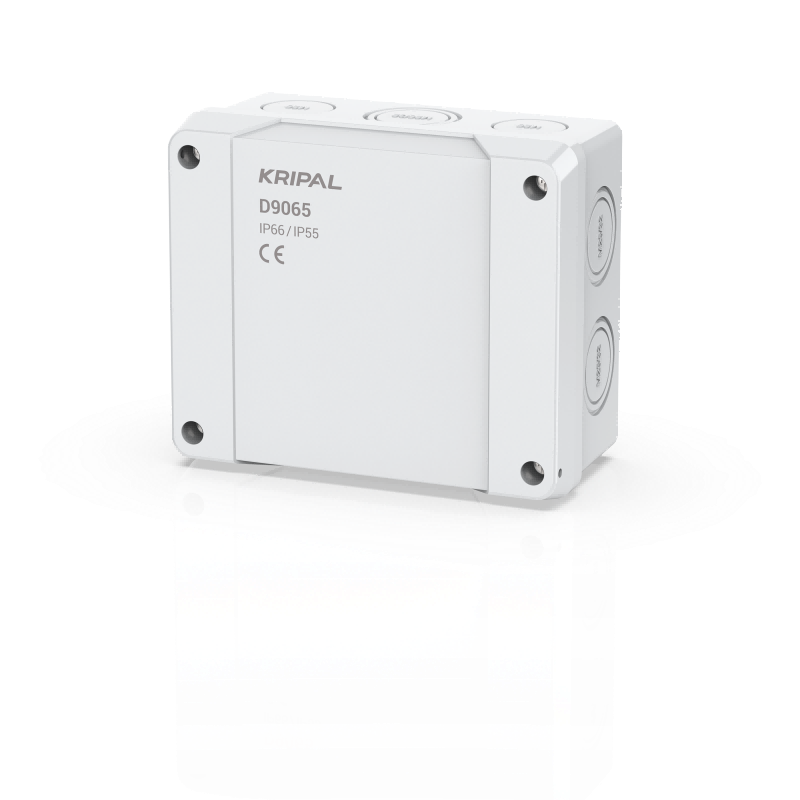

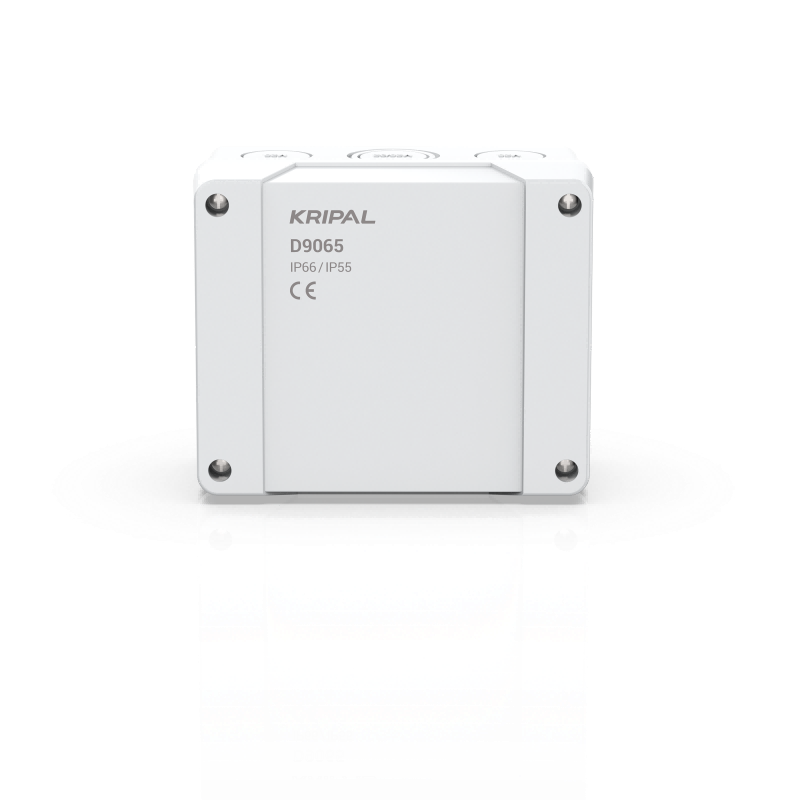

D9065 Terminal Junction Box Wall Mount Outdoor Waterproof PC Enclosure 139x119x70
KRIPAL Terminal Junction Box combines robust engineering with practical functionality for demanding industrial applications. Constructed from high-grade impact-resistant thermoplastic, these junction boxes deliver both durability and an aesthetically refined appearance.
The innovative design incorporates advanced terminal technology with flexible five-position support, significantly simplifying installation and maintenance processes.
Featuring corrosion-resistant V2A metric screws with an optimized large pitch, the units reduce screw fastening effort by approximately one-third compared to conventional designs.
When environmental conditions demand superior protection, compression glands can be utilized to achieve complete IP65 rating, ensuring reliable performance in challenging settings.
Free Quote NowKey Features
- High-grade impact-resistant thermoplastic construction for maximum durability
- Advanced terminal technology with flexible five-position support for versatile wiring configurations
- Corrosion-resistant V2A metric screws with large pitch design reducing fastening effort by one-third
- Optional compression glands available for achieving IP65 environmental protection rating
- Streamlined installation process with user-friendly design elements
- Aesthetically refined appearance suitable for both industrial and commercial applications
Application
- Industrial control systems and machinery wiring
- Outdoor electrical installations and distribution points
- Manufacturing facilities and processing plants
- Infrastructure projects and utility installations
- HVAC systems and building automation
- Temporary construction sites and permanent electrical assemblies
