| Type | Rated Thermal Current Enclose (A) | Rated Operational Voltage Ue(-50Hz) (V) | Cable Cross Section Solid or Stranded mm² | Number of Socket Pins (Including Earth) | IP Protection class | |
| Min | Max | |||||
| 56SO310W | 10A | 250V | 1.5 | 6 | 3 | IP66 |
| 56SO310 | 10A | 250V | 1.5 | 6 | 3 | IP66 |
| 56SO310L | 10A | 250V | 1.5 | 6 | 3 | IP66 |
| 56SO310F** | 10A | 250V | 1.5 | 6 | 3 | IP66 |
| 56SO316F** | 16A | 250V | 1.5 | 6 | 3 | IP66 |
| 56SO315 | 15A | 250V | 1.5 | 6 | 3 | IP66 |
| 56SO320F | 20A | 250V | 2.5 | 6 | 3 | IP66 |
| 56SO315RP | 15A | 250V | 1.5 | 6 | 3 | IP66 |
| 56SO313* | 13A | 250V | 1.5 | 6 | 3 | IP66 |

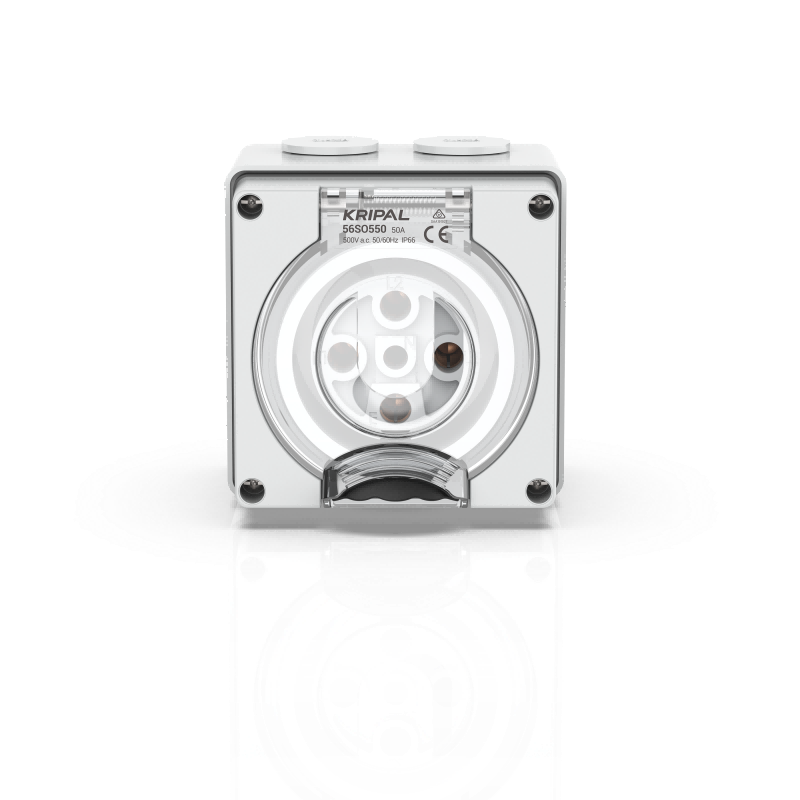

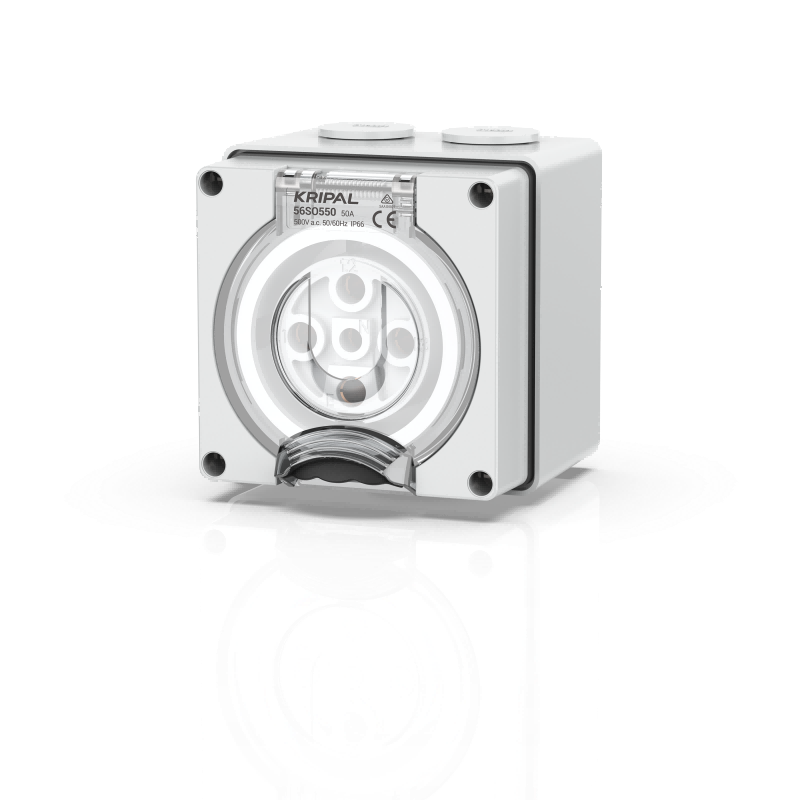

56SO Weatherproof Socket Outlet 500V 50A 5 Round PIN IP66 Surface Mount
KRIPAL 56SO Series 250-500V Socket Outlets feature a patented transparent hinged cover that automatically snaps shut and locks securely when the plug is withdrawn, providing an instant and reliable IP66-rated seal.
This innovative design ensures complete protection against dust and high-pressure water jets.
The transparent cover offers a significant user advantage, allowing for quick and easy identification of the pin configuration without the need to open the cover, streamlining connectivity and enhancing operational efficiency in various industrial and commercial settings.
Free Quote NowKey Features
- Waterproof, Dustproof & Chemical-Resistant
- Permanent Laser-Engraved Ratings
- Dirt-Reducing Screw Caps & Contoured Profile
- Visible Sealing Gasket & Stainless Steel Screws
- Redesigned Transparent Cover for Better Visibility
- Automatic Cover Closure to Maintain IP Rating
Application
- Industrial control panels and machinery
- Outdoor and hazardous environment installations
- Commercial buildings and public facilities
- Data centers and communication cabinets
- Marine, agricultural, and manufacturing settings
- Any application requiring reliable, secure, and durable electrical modules
