| Type | Ith (A) | UI /Ue (V) | Utilization Categories | Button Colour | Conductor Term. Size in mm² | IP Protection class | O/A Dims (H)x(W)x(D) | ||
| AC15 240V | DC13 24V | Min | Max | ||||||
| 56PB | 10 | 250 | 6 | 8 | Green | 1 | 4 | 66 | 107x101x79 |
| 56PBS | 10 | 250 | 6 | 8 | Red | 1 | 4 | 66 | 107x101x112 |
| 56PBS1 | 10 | 250 | 6 | 8 | Red | 1 | 4 | 66 | 107x101x89 |
| 56PBS2 | 10 | 250 | 6 | 8 | Red | 1 | 4 | 66 | 107x101x89 |
| 56/2PB | 10 | 250 | 6 | 8 | Red/Green | 1 | 4 | 66 | 107x101x112 |
| 56/2PBS1 | 10 | 250 | 6 | 8 | Red/Green | 1 | 4 | 66 | 107x101x89 |

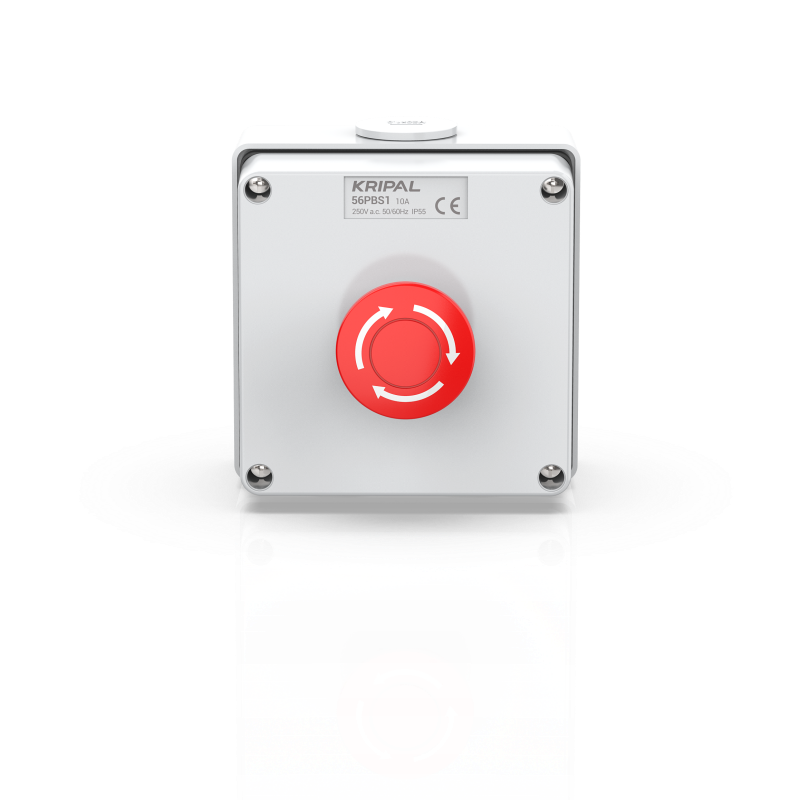

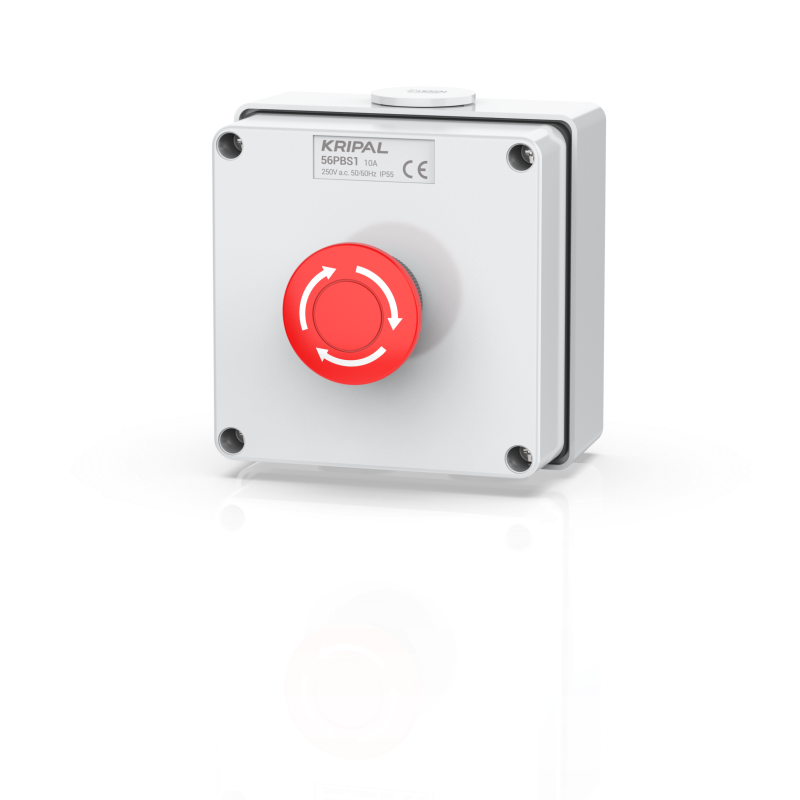

56PS1 Push-button Control Station 10A Emergency stop station with mushroom head IP66 Weatherproof Switch
This comprehensive range of industrial button control stations provides reliable motor control solutions for demanding environments. Consisting of five distinct combinations of stop and start control stations, these units are specifically engineered to perform in wet, dusty, and dirty conditions. The series offers versatile control options for various industrial applications, from simple start/stop functions to emergency stop requirements. All stations feature robust construction and clear operational differentiation through color-coding and button design, ensuring safe and intuitive operation in challenging workplace environments.
Product Models:
56PB – Start control station
56PBS – Stop control station
56PS1 – Emergency stop station with mushroom head, twist reset and red push-button
56PBS2 – Stop station with mushroom head, twist reset and red push-button (labelled stop only)
56/2PB – Combination stop/start control station with momentary operation push-buttons
56/2PBS1 – Combination stop/start control station with same stop button as 56PBS1
Free Quote NowKey Features
- Complete range of five control station configurations for diverse operational needs
- Robust construction suitable for wet, dusty, and dirty environmental conditions
- Emergency stop stations featuring mushroom heads with twist reset functionality
- Color-coded buttons (red for stop, green for start) for immediate identification
- Multiple button types including extended head, flush head, and momentary operation
- Clear labeling and intuitive design for enhanced operational safety
- Reliable performance in controlling motor starters across various equipment types
Application
- Pumps and compressor systems
- Saws and woodworking machinery
- Lathes and metalworking equipment
- Processors and processing line machinery
- Industrial manufacturing and processing facilities
- Construction and heavy equipment applications
