| Parameter | UKM5-
63C |
UKM5-100C | UKM5-100S | UKM5-100H | UKM5-100U | UKM5-250C | UKM5-250S | UKM5-250H | UKM5-250U |
| Frame Rated Current Inm(A) | 63 | 100 | 100 | 100 | 100 | 250 | 250 | 250 | 250 |
| Rated current(A) | 10,16,20,32,40,50,63,75,100,125 | 16,25,32,40,50,65,75,100,(125,160) | 16,25,32,40,50,65,75,100,(125,160) | 16,25,32,40,50,65,75,100,(125,160) | 16,25,32,40,50,65,75,100,(125,160) | 100,125,150,175,200,225,250 | 100,125,150,175,200,225,250 | 100,125,150,175,200,225,250 | 100,125,150,175,200,225,250 |
| Poles | 3, 4 | 3, 4 | 3, 4 | 3, 4 | 3, 4 | 3, 4 | 3, 4 | 3, 4 | 3, 4 |
| Rated insulation voltage (UiV) | AC600 | AC680 | AC680 | AC680 | AC680 | AC690 | AC690 | AC690 | AC690 |
| Arcing distance(mm) | ≤50(0*) | ≤50(0*) | ≤50(0*) | ≤50(0*) | ≤50(0*) | ≤50(0*) | ≤50(0*) | ≤50(0*) | ≤50(0*) |
| Rated ultimate/service short- circuit breaking capacity (Ka) | AC400V: 10/5 AC230V: 25/13 | AC400V: 30/5 AC230V: 50/25 | AC690V: 5/3 AC400V: 50/35 AC230V: 100/50 | AC690V: 10/5 AC400V: 85/85 AC230V: 125/125 | AC690V: 10/5 AC400V: 85/85 AC230V: 125/125 | AC400V: 30/5 AC230V: 50/25 | AC690V: 10/5 AC400V: 50/35 AC230V: 100/50 | AC690V: 10/5 AC400V: 85/85 AC230V: 125/125 | AC690V: 10/5 AC400V: 85/85 AC230V: 125/125 |
| Operation performance (times) | ON: 6000 OFF: 8500 | ON: 6000 OFF: 8500 | ON: 6000 OFF: 8500 | ON: 6000 OFF: 8500 | ON: 6000 OFF: 8500 | ON: 2000 OFF: 7000 | ON: 2000 OFF: 7000 | ON: 2000 OFF: 7000 | ON: 2000 OFF: 7000 |
| Weight (kg) | 0.75 | 3:1.0 4:1.3 |
3:1.1 4:1.4 |
1.8 | 1.8 | 3:1.5 4:1.9 |
3:1.5 4:1.9 |
2.6 | 2.6 |
| Rated operation frequency(per hour) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |

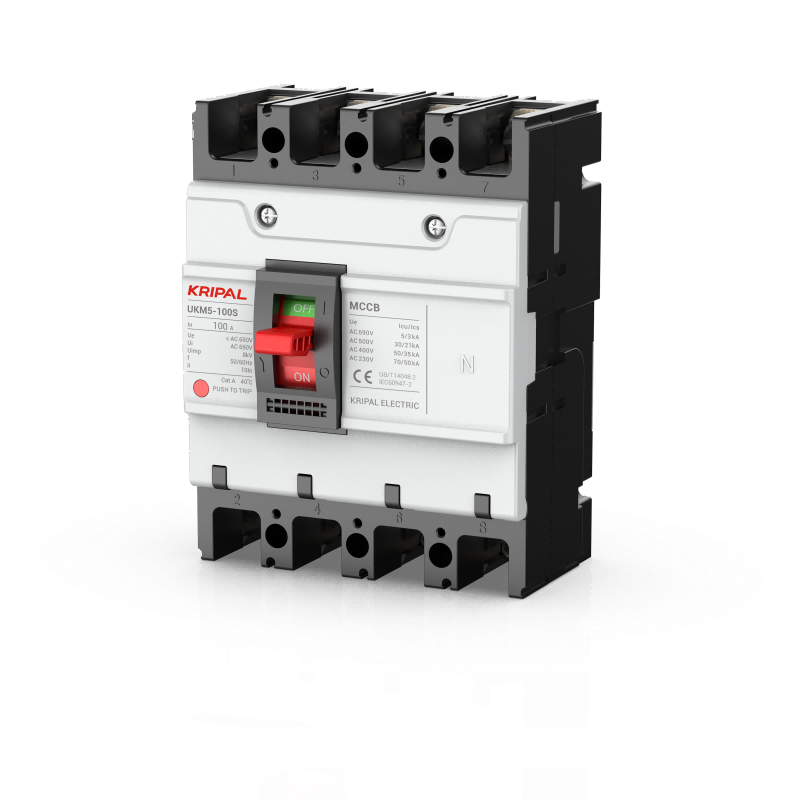

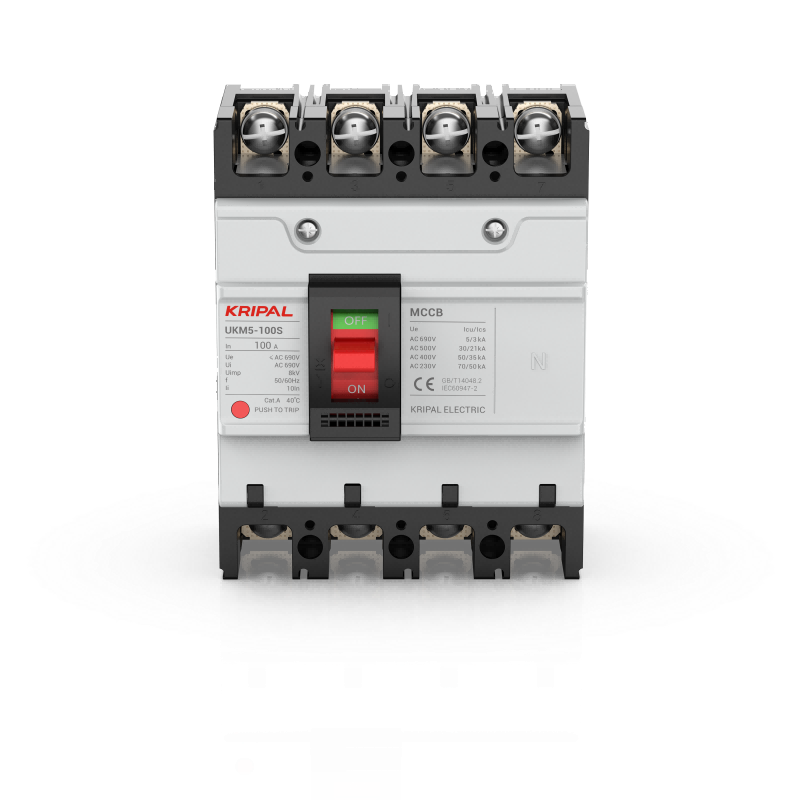

UKM5-100 MCCB 4 Pole 100A Moulded Case Circuit Breaker CE Certified
UKM5 Series Plastic Case Circuit Breakers represent cutting-edge technology designed for the 21st century. These breakers feature advanced engineering and high-performance specifications, with a compact and aesthetically pleasing design.
Select models incorporate microelectronic technology, delivering intelligent control capabilities.
Compliant with GB/T 14048.2 “Low-voltage switchgear and controlgear – Low-voltage circuit breakers” and IEC 60947-2 “Low-voltage switchgear and controlgear – Part 2: Circuit-breakers” standards.
Free Quote NowKey Features
- Rated for voltages up to 690V and currents up to 1600A in 50Hz AC systems.
- Delivers reliable protection against overload, short-circuit, and under-voltage faults.
- Select models feature intelligent control with advanced microelectronics technology.
- Compact and aesthetically pleasing design to save valuable panel space.
- Built for harsh conditions, rated for Pollution Degree 3 and Installation Category III.
- Wide operating temperature range from -5°C to +40°C, suitable for altitudes up to 2000m.
- Clear power source (1,3,5,N1) and load (2,4,6,N2) terminal markings prevent incorrect wiring.
Application
- Protects industrial power systems from electrical faults like overloads and short-circuits.
- Controls the infrequent starting and stopping of motors in various applications.
- Provides reliable circuit protection for commercial and industrial distribution systems.
