| Type | AC3 Ratings | AC4 Ratings | Ith | Contacts | |||||
| 220~240V | 380~440V | 500~550V | 220~240V | 380~440V | 500~550V | NO | NC | ||
| UKC1-20D2
UKC1-20D3 |
20A | 17A | 14A | 18A | 13A | 10A | 30A | 2 | – |
| 3 | – | ||||||||
| 2 | 1 | ||||||||
| UKC1-25D2
UKC1-25D3 |
25A | 21A | 17A | 20A | 14A | 12A | 35A | 2 | – |
| 3 | – | ||||||||
| 2 | 1 | ||||||||

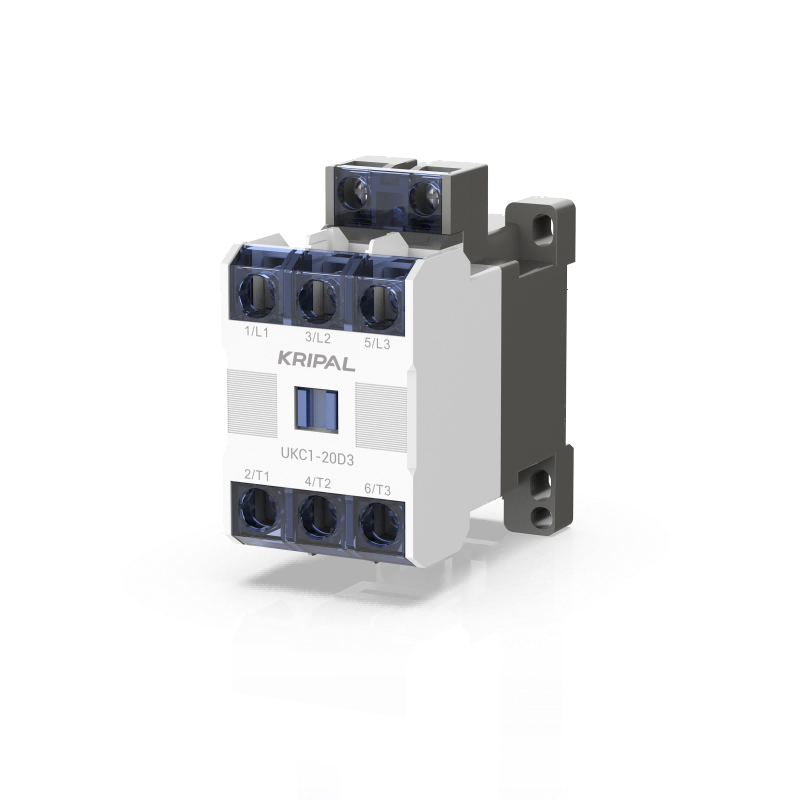

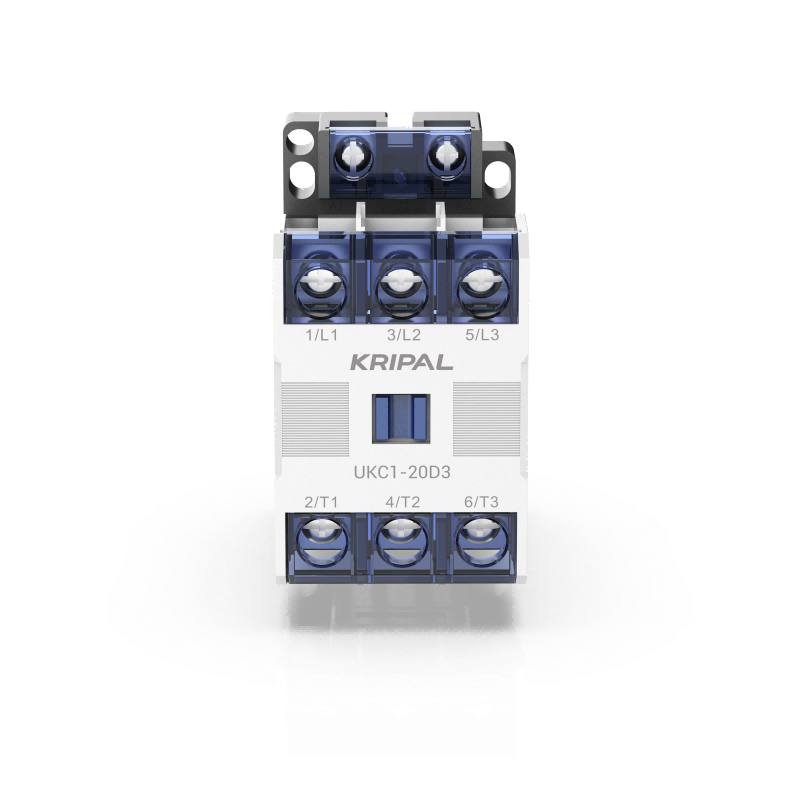

UKC1-20D3 Air Conditioner Contactor 3P 20/25A ac Coil 24V 110V 220V
UKC1 Air Conditioner Contactor is a core electrical control component in HVAC systems. Its primary function is to control the connection and disconnection of main contacts through an electromagnetic coil, enabling power switching for high-power loads such as compressors and fan motors. This makes it essential for ensuring reliable startup, shutdown, and operation of air conditioning units.
Composed of an electromagnetic coil, main contacts, auxiliary contacts, and an insulated housing, the contactor delivers reliable performance in demanding environments.
The main contacts are responsible for supplying or cutting off power to the compressor and fan circuits, while the auxiliary contacts support control circuit signaling and status feedback. The housing, typically constructed from flame-retardant insulating materials, complies with international IEC safety standards for enhanced operational protection.
Free Quote NowKey Features
- 3 Main Contacts for reliable power switching
- Compact & Lightweight Design ideal for air conditioners, heaters, and refrigerators
- No Auxiliary Contacts simplified control structure
- AC Control Voltage for straightforward integration
Application
- Controls compressors and outdoor fan motors in wall-mounted and floor-standing AC units, enabling reliable power switching for both cooling and heating modes.
- Compatible with central air conditioning (VRF and ducted systems) and commercial units, manages grouped operation of multiple compressors or fans to meet zoned cooling demands.
- Used in precision air conditioning (e.g., server rooms) and vehicle AC systems, ensures stable compressor control to maintain precise temperatures in critical environments.
- Built for industrial air conditioners in factories and warehouses, reliably operates high-power compressors and ventilation fans under demanding conditions such as high heat and humidity.
