As solar power and other renewable energy sources scale up globally, protection devices in PV systems become more than just safety add-ons.

Solar circuit breakers and DC circuit breakers play a pivotal role in safeguarding photovoltaic (PV) installations, battery storage, inverters, and wiring under varying conditions. In this article we look at how these breakers work, where they are installed, and how to select breakers for renewable energy systems.

Why Solar PV Systems Require Specialized Breakers

Solar PV systems produce direct current (DC) from photovoltaic modules. That DC must be safely switched, protected and isolated before conversion or onward distribution.

Standard AC circuit breakers often fail to respond properly under DC conditions. DC circuits lack natural zero-crossings that help extinguish arcs in AC circuits, so specialized DC-rated breakers are required to interrupt current and suppress arcs safely.

Without proper DC protection, faults like string overloads, short circuits or cable damage may lead to overheating, fire hazards, or irreparable damage to panels, inverters or battery systems. A correctly chosen PV circuit breaker offers both overcurrent protection and safe isolation for maintenance and fault clearance.

Where to Place Breakers in a Solar PV System

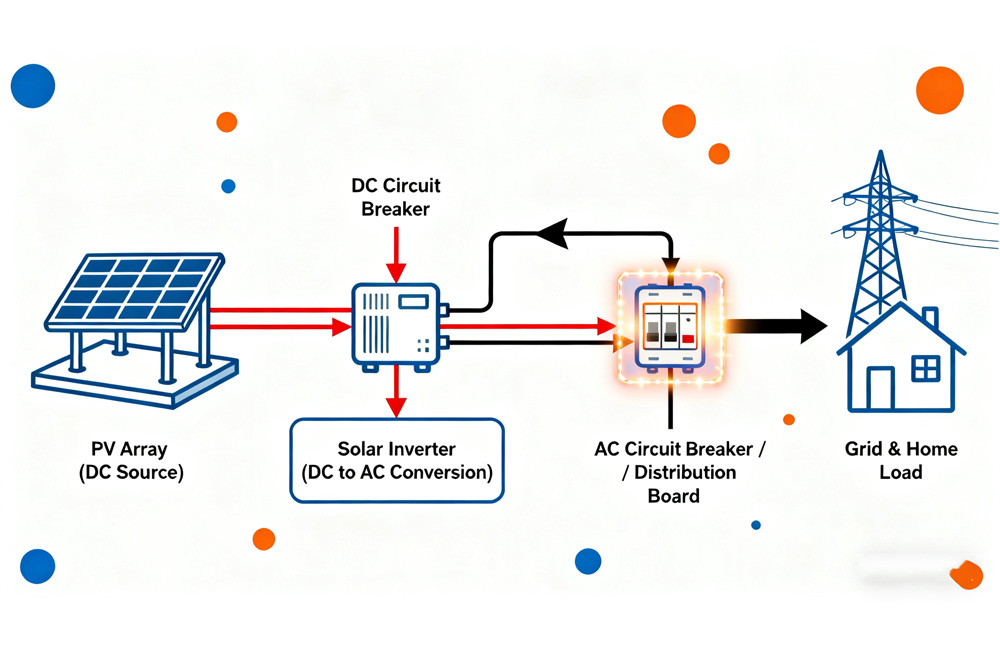

Circuit breakers in a solar or renewable setup appear at several key positions. Here is a typical layout of breaker placement:

Using breakers at each of these points ensures that faults remain localized and maintenance can be done safely. The overall solar installation remains protected under varying conditions.

What to Look for in Solar and DC Circuit Breakers

When selecting breakers for renewable energy applications, a few key criteria should guide your decision:

• Breaker must be rated for DC voltage equal to or above system voltage (e.g. 600 V, 1000 V, or higher depending on array).
• Breaking capacity and arc-suppression design suitable for DC fault currents.
• Thermal and magnetic protection mechanisms tailored for PV strings or battery systems to handle overcurrent and short circuit.
• Clear manual isolation function so the circuit can be safely disconnected for maintenance or inspection.
• Environmental protection (weatherproof housing, UV resistance, corrosion resistance) if installed outdoors or in harsh conditions.

Meeting these criteria helps ensure safety and reliability of the solar PV installation over its full service life.

Typical Breaker Types in Renewable Energy Systems

In a modern solar or renewable energy system you will often find a combination of breaker types to cover different parts of the system. The table below gives a clear overview.

This layered approach ensures that both DC and AC parts of a solar installation are properly guarded.

Practical Checklist for Installing Breakers in Solar PV and Renewable Systems

When you plan a solar PV or renewable installation, follow this checklist for breaker selection and placement:

• Confirm system voltage (panel string voltage and battery voltage) and select a DC-rated breaker accordingly.
• Estimate expected DC current and possible fault current for strings and arrays.
• Choose breakers with thermal and magnetic protection tuned to load conditions (constant generation, occasional surge during fault or overload).
• Ensure arc-suppression design works for DC (because DC arcs behave differently from AC arcs).
• Install breakers at string, combiner box output, inverter input, and battery output as needed.
• Provide manual isolation capability for maintenance—breaker handles must show open/closed status visibly.
• If installation is outdoors or in harsh climate, select breakers with suitable IP rating, UV and corrosion resistance.

This practical plan helps build a robust protection layout that covers every part of a renewable installation.

Final Thoughts

Solar circuit breakers and DC circuit breakers are integral parts of modern renewable energy systems. They provide overcurrent protection, isolation, arc suppression and safe operation across solar arrays, battery storage, inverters and distribution circuits.

If your project involves solar PV installation, battery storage or a hybrid renewable energy system and you need reliable breakers tailored to renewable protection requirements, ask for quote. Kripal offers professional-grade solar and DC circuit breakers designed for renewable energy applications.
