| Parameter | Specification |
| Rated voltage (Ue) | 240V/415V |
| Frequency | 50/60Hz |
| Short circuit durability | After 100A current, the spare fuse reaches 25kA |
| Making & Breaking capacity | 1.2In.:1.1Ue |
| Style of use | AC22 |
| Coupling wire section | Max.: 50mm² |
| Case protection grade | IP40 (After installation) |
| Isolation | According to specific switch location state |

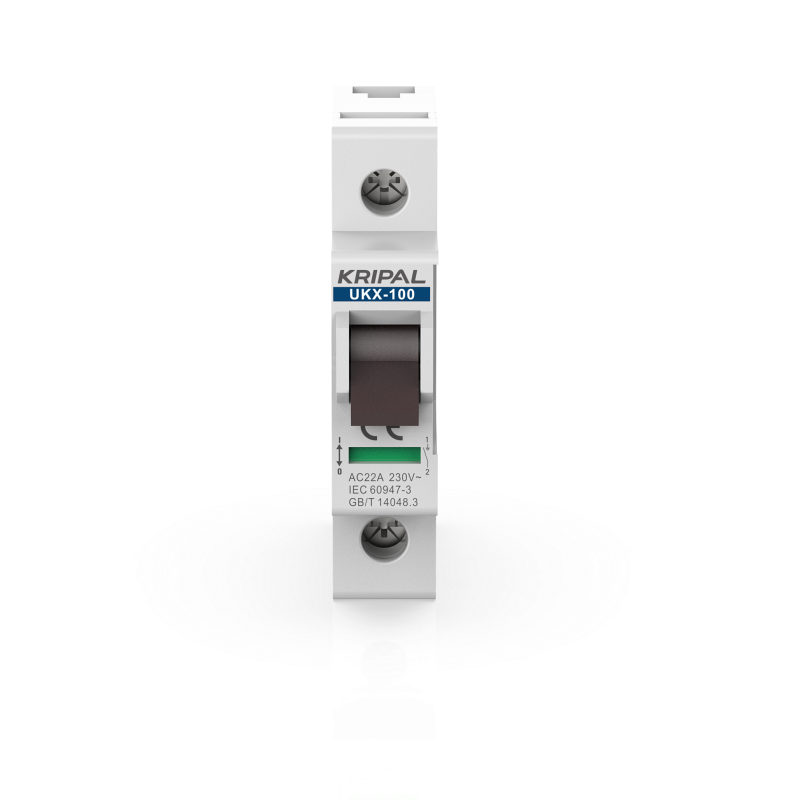

UKX-100 AC22A 230V Isolating Switch 100A 1 Pole
UKX-100 AC22A 1Pole 230V AC Isolating Switch
The UKX-100 represents a robust single-pole (1P) isolating switch engineered for high-current applications requiring reliable circuit isolation.
Complying with IEC 60947-3 and GB/T 14048.3 standards, this 100A-rated switch delivers exceptional performance in 230V AC systems where individual pole isolation is critical.
The unit incorporates advanced safety features including double-function terminals for superior connectivity, a direct-contact position indicator for unambiguous status confirmation, and a ≥6mm padlock provision supporting comprehensive Lockout/Tagout (LOTO) protocols.
Designed for heavy-duty applications, the UKX-100 ensures complete visible isolation and secure operation in demanding industrial environments.
Free Quote NowKey Features
- Safety Isolation & Locking Capability: Provides compliant safety isolation distance in the OFF position and can be secured with a padlock (hole diameter ≥ 6mm) to prevent unauthorized or accidental re-energization, making it an ideal component for implementing safety procedures like Lockout/Tagout (LOTO).
- Status Visibility: The built-in contact position indicator directly shows the true position of the contacts via the internal mechanism, preventing misjudgment and enhancing operational safety.
- Robust Electrical Performance & Connection: Rated operational current 40A, rated insulation voltage up to 500V. The double-function terminal design accommodates a wide range of conductor types and ensures a secure, low-resistance connection.
- Standards Compliance: Manufactured and tested in strict accordance with the international IEC 60947-3 standard, ensuring global applicability and reliability.
- Wide Applicability: Suitable for industrial machinery, power distribution boards/panels, automation control systems, and main power input isolation and load switching in large commercial facilities.
Applications
- Main power isolation for industrial production lines
- Main incoming switch for distribution boards/control panels
- Power management for large HVAC systems
- Power switching and isolation for fixed electrical equipment like pumps and fans
- Designated maintenance isolation point for downstream circuits (e.g., MCBs, contactors).
