| Current | Voltage | Model | |
| 3P | 4P | ||
| 10A |
230-440V
|
UKT0-310/8212 | UKT0-410/8213 |
| 16A | UKT0-316/8212 | UKT0-416/8213 | |
| 20A | UKT0-320/8212 | UKT0-420/8213 | |
| 20A | UKT3-320/8212 | UKT3-420/8213 | |
| 32A | UKT3-332/8212 | UKT3-432/8213 | |
| 40A | UKT3-340/8212 | UKT3-440/8213 | |
| 63A | UKT5-363/8212 | UKT5-463/8213 | |
| 80A | UKT5-380/8212 | UKT5-480/8213 | |
| 100A | UKT5-3100/8212 | UKT5-4100/8213 | |

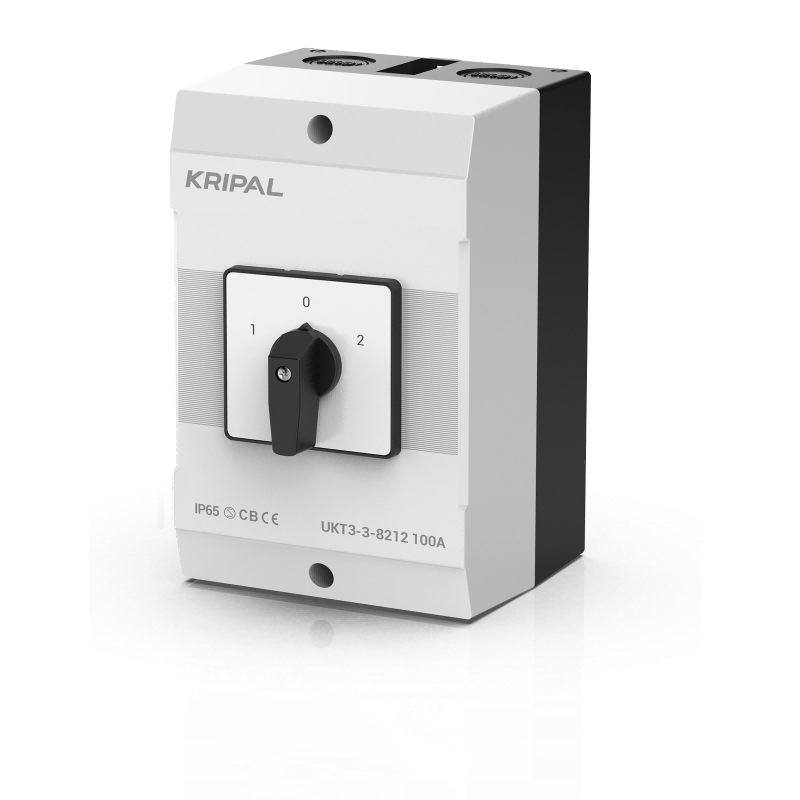

KRIPAL UKT3 Rotary Changeover Switch 40A/63A/80A/100A 3 Position Cam Switch IP65
UKT Series rotary switches are engineered for reliable performance in circuits up to 440V AC, 50Hz. Designed for infrequent manual operation, they efficiently handle circuit breaking, closing, and change-over functions.
Available in 8 current ratings—10A, 16A, 20A, 32A, 40A, 63A, 80A, and 100A—the UKT series offers versatile solutions for a wide range of industrial applications.
Ideal for use as ON-OFF switches, emergency stop switches, maintenance switches, safety switches, distribution switches, and motor control switches, they provide flexibility and dependable operation across diverse environments.
Free Quote NowKey Features
- Safe & Reliable: Terminal covers meet VDE0106 for full finger-safe protection.
- Limitless Configurations: 800 standard combinations, nearly unlimited expandability.
- Wide Range: Classified by power capacity for cost-effective solutions. Multiple nameplate mounting options.
- On/Off & Control Switching: Handles motor loads (AC-3) and frequent switching. Enables easy centralized control.
Application
- Motor Star-Delta Starting: Configured for star-delta starting circuits, available with or without commutation and contactor interlock options for flexible motor control.
- Multi-Speed Motor Control: Ideal for reversing and step-speed control (2, 3, or 4 steps) of motors with multi-tap windings, with optional commutation.
- Power & Load Switching: Robust design for reliable power supply switching and general load switching duties.
- Single-Phase Motor Starting: Effectively used for starting AC motors in single-phase power supplies with capacitors.
- Stepping Control: Versatile stepping control for various load types, available with or without a dedicated “OFF” (O) position.
- Instrumentation Circuit Switching: Safely switch ammeters or voltmeters between three-phase circuits for accurate measurement.
- Manual/Auto Mode Selection: A reliable solution for switching between manual and automatic operational modes.
