| Model | Installation Type | IP Rating | Function | Rated Voltage(V) | Pole | Rated Current (A) |
| UKPW0 | Surface | IP65 | Main switch and maintenance switch | 230-440 | 2P, 3P, 4P | 10, 16, 20 |
| UKPW1 | Surface | IP65 | Main switch and maintenance switch | 230-440 | 2P, 3P, 4P, 5P | 20, 25, 32 |
| UKPW3 | Surface | IP65 | Main switch and maintenance switch | 230-440 | 2P, 3P, 4P, 5P | 32, 40, 50, 63 |
| UKPW5 | Surface | IP65 | Main switch and maintenance switch | 230-440 | 2P, 3P, 4P, 5P | 63, 80, 100, 125, 150 |

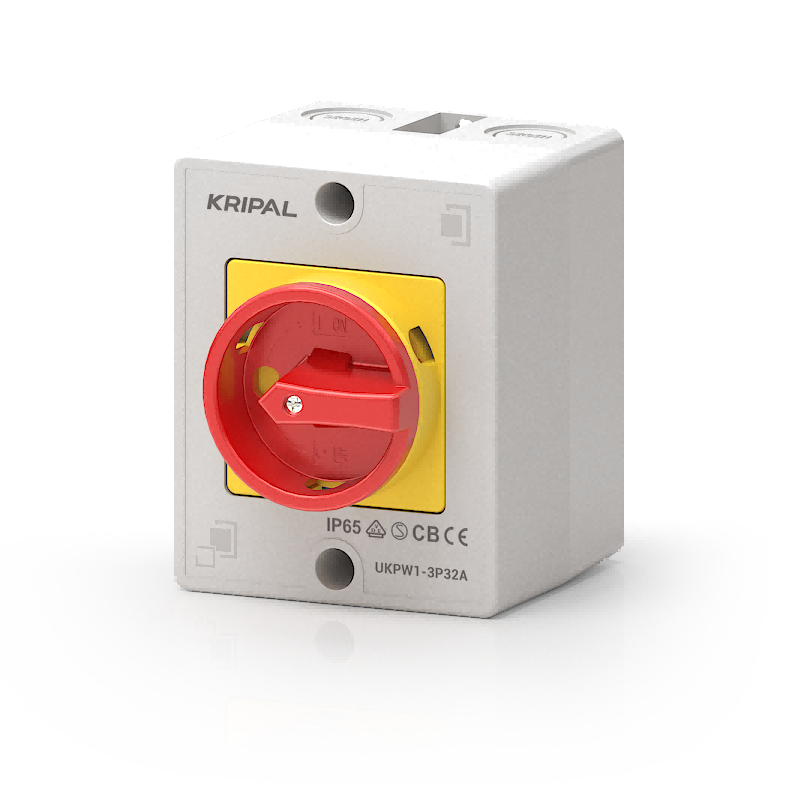

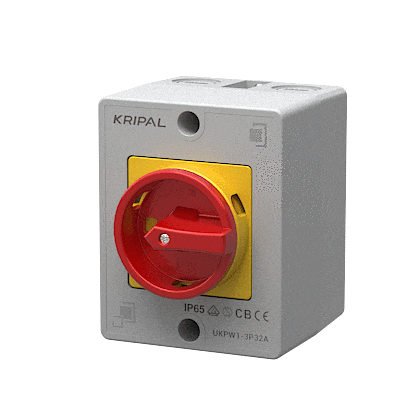

UKPW1 AC Isolator Switch 3Pole 20A/25A/32A Rotary Switch Enclosed IP65 Switch Disconnector
The UKPW Enclosed Isolators is a high-quality product continuously improved with the times.
It is consistently designed and manufactured in accordance with the international standard IEC/EN 60947 and has passed testing at KRIPAL’s Low Voltage Testing Center.
For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.
Graded by power capacity, the UKPW Switch Disconnector provides the most economical and suitably adapted solution for various projects.
Additionally, they feature nameplates suitable for different installation methods, offering flexibility to meet specific application needs.
The manufacturing process avoids the use of PCBs, CFCs, asbestos, and silicone resins, and the contact materials are cadmium-free, ensuring full compliance with environmental protection requirements.
Free Quote NowKey Features
- Manufactured under strict quality control with multiple international and classification society approvals.
- Offers nearly limitless contact combinations for diverse application needs.
- Available in various power capacities to provide economical solutions for different projects.
- Free from PCBs, CFCs, asbestos, silicone resins, and cadmium in contacts.
- Allows up to 3 padlocks at the O-position to ensure operator safety during maintenance.
Applications
- Isolates generators and transformers during maintenance to ensure system safety and stability.
- Installed between breakers and distribution panels to isolate faulty circuits for safe line maintenance.
- Disconnects power for maintenance, enables load switching, and quickly cuts off faulty circuits to prevent failure spread.
- Protects electrical equipment in automated systems, reducing downtime and ensuring continuous operation.
- Provides control and isolation in industrial automation applications.
- Used in remote control and monitoring of power transmission and transformation equipment.
- Supports command transmission in rail and port handling equipment systems.
- Ensures safety in elevators, HVAC, and power systems in malls, offices, and hospitals.
- Safely cuts off power during maintenance to prevent electric shock risks in homes.
- Meets high safety and reliability demands in power distribution and automation systems.
- Enables connection and isolation control of distributed power sources in modern energy systems.
