| Parameter | SPB3-30 / SPB5-30 | SPB3-35 / SPB5-35 |
| Max. Continuous Operating Voltage (Uc) | 175V, 280V, 385V, 440V | 175V, 280V, 385V, 440V |
| Voltage Protection Level (Up) | L-N: 0.8kV, 1.5kV, 1.8kV, 2.0kV N-PE: 1.5kV | L-N: 0.8kV, 1.5kV, 1.8kV, 2.0kV N-PE: 1.5kV |
| Nominal Discharge Current (In) | 30 kA (8/20 µs) | 35 kA (8/20 µs) |
| Max. Discharge Current (Imax) | 60 kA (8/20 µs) | 70 kA (8/20 µs) |
| Response Time | L-N: < 25 ns N-PE: < 100 ns | L-N: < 25 ns N-PE: < 100 ns |
| Test Standard | GB/T 18802.11, IEC 61643-11 | GB/T 18802.11, IEC 61643-11 |
| Fuse or Circuit Breaker | 63 A | 63 A |
| Connection Wire Cross-Section | 16 mm² | 16 mm² |
| Grounding Wire Cross-Section | 25 mm² | 25 mm² |
| Comm./Alarm Wire Cross-Section | ≥ 1.5 mm² | ≥ 1.5 mm² |
| Operating Temperature | -40°C ~ +85°C | -40°C ~ +85°C |
| Relative Humidity | ≤ 95% (at 25°C) | ≤ 95% (at 25°C) |
| Installation | Standard 35mm DIN Rail | Standard 35mm DIN Rail |
| Housing Material | Reinforced Flame Retardant PA66 | Reinforced Flame Retardant PA66 |

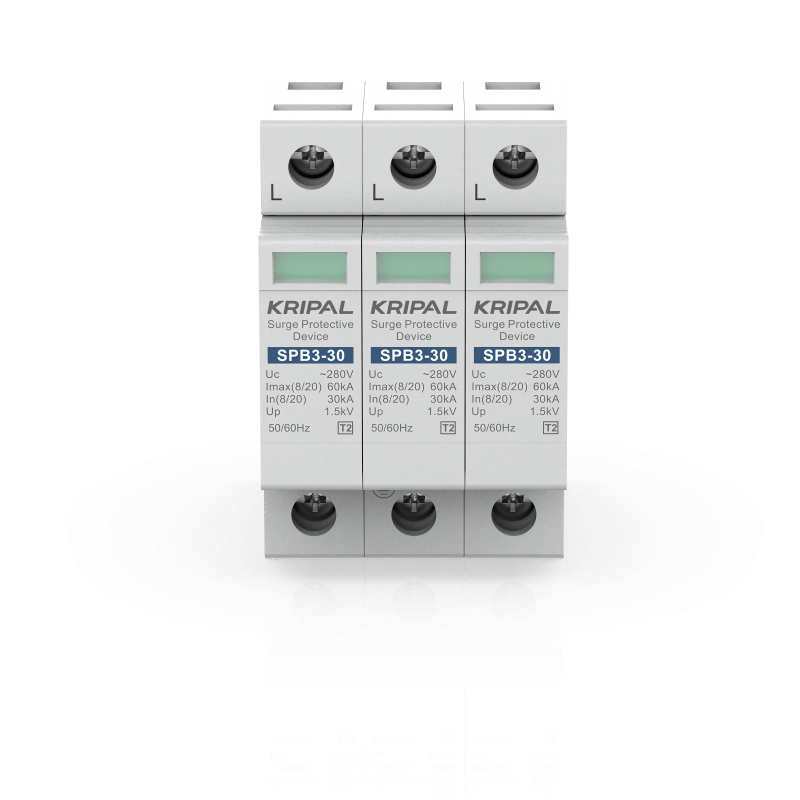

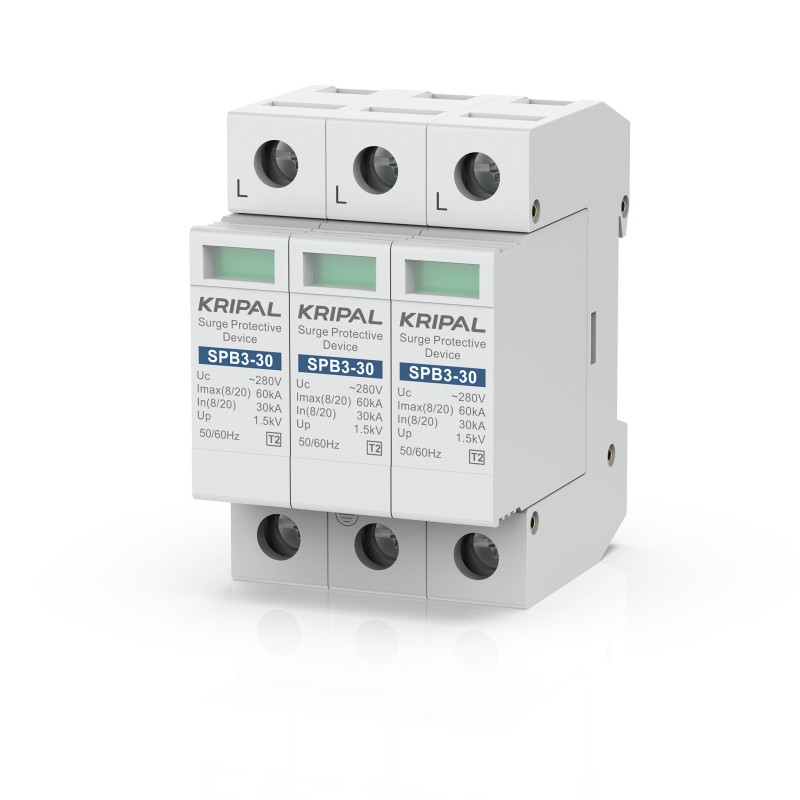

SPB Series AC Power Surge Protector 3Pole 280V SPD 30kA~60kA Surge Arrester
SPB series Class B surge protective device (SPD)
The SPB Series Class B Surge Protective Device (SPD) is engineered for AC 50/60Hz, up to 1000V, and lower, power supply systems including TT, IT, TN-S, TN-C-S, and photovoltaic (PV) AC/DC systems. It provides critical equipotential bonding at the boundaries between LPZ 0A-1, LPZ 0B-1, and LPZ 1-2. Designed in full compliance with GB/T 18802.11 and IEC 61643-11 standards, it features a compact housing for easy installation on a 35mm electrical DIN rail.
This robust protector includes an integrated failure disconnection mechanism. In case of SPD failure due to overcurrent, overheating, or electrical breakdown, this mechanism automatically disconnects the device from the power grid. A clear visual alarm indicator simultaneously changes from green (normal) to red (fault), providing instant status awareness. For enhanced operational continuity, the SPD module can be safely replaced while the system remains energized, ensuring uninterrupted protection for your electrical infrastructure.
Free Quote NowKey Features
- Class B Protection: Primary defense against direct lightning strikes and high-energy surges.
- Broad Compatibility: Suitable for TT, IT, TN-S, TN-C-S, and PV systems (≤1000V AC/DC).
- Standards Compliant: Meets GB/T 18802.11 and IEC 61643-11 requirements.
- Automatic Disconnect: Built-in failure mechanism disconnects from grid during faults.
- Visual Status: Clear green/red indicator for instant operational status.
- Easy Maintenance: 35mm DIN rail mountable with hot-swappable module replacement.
Applications
- Building Main Low-Voltage Distribution Cabinets
- Main Power Intake Panels
- Service Entrance Equipment
- Primary Lightning Protection Zones (LPZ 0-1 Boundaries)
- Central Distribution Boards
