In motor circuits and industrial installations, protection devices must match load behavior, fault risks, and operational needs. Three common protection devices are general-purpose molded case circuit breakers (MCCBs), motor protection circuit breakers (MPCBs), and separate overload relays. Each has strengths and trade-offs. Understanding their differences helps you choose right for motor protection or general circuit protection.

Definitions and Use Cases

MCCB (Molded Case Circuit Breaker)

A general-purpose circuit breaker that protects wiring and circuits from overloads and short circuits. It is widely used across electrical distribution, feeders, sub-panels or generic loads. MCCB current ratings and breaking capacities are suitable for wide range of loads.

MPCB (Motor Protection Circuit Breaker)

A breaker designed specifically for motor circuits. It combines overload protection, short-circuit protection, manual switching, and often phase-failure or under-voltage detection. It handles motor characteristics such as startup inrush current and variable load conditions.

Overload Relay (used with Contactor or Breaker)

An overload relay protects a motor against sustained over-current conditions by sensing heat (via a bimetallic element) or electronic parameters over time. It does not interrupt short circuits. It is often paired with a contactor plus a separate circuit breaker or fuse for comprehensive protection.

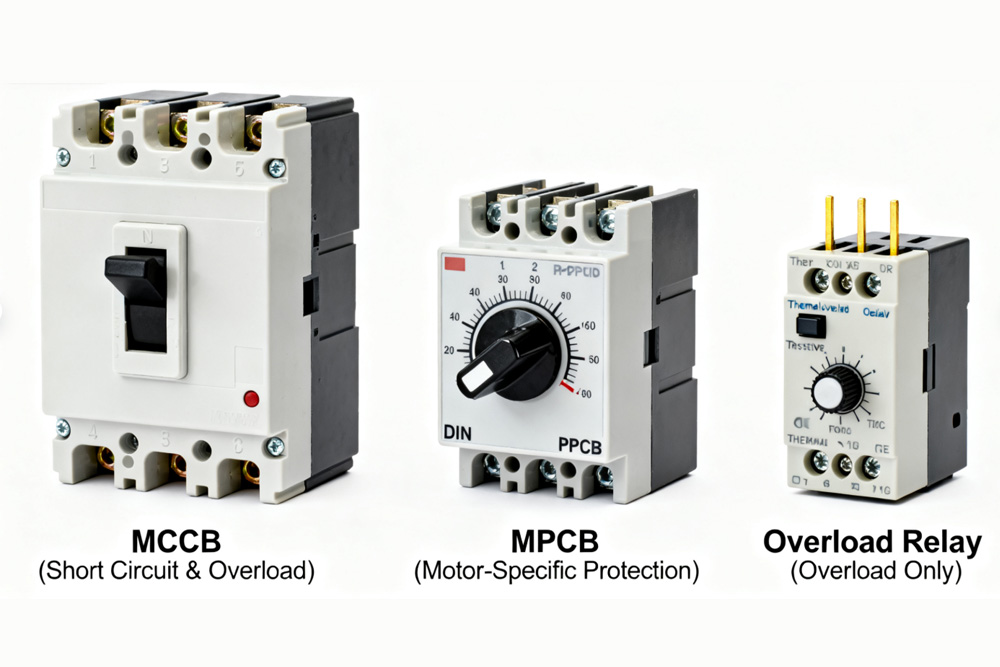

Key Differences Between MCCB, MPCB and Overload Relay

When to Use Each Device

• Use MPCB when protecting motors or motor-driven loads. MPCB’s combination of overload, short-circuit and phase protection suits the demands of motor circuits.
• Use MCCB when protecting general circuits, feeders, or loads not requiring motor-specific protection. For motors, MCCB can be used but often needs separate overload relay and contactor.
• Use Overload Relay + Contactor + Circuit Breaker/Fuse when system configuration or design standards call for separate control, or when retrofitting existing motor control centers.

Practical Selection Checklist

When selecting protection for a motor circuit, consider the following:

• What is the motor full load current, startup inrush current and load duty (continuous, intermittent, variable)?
• Does the motor require protection against phase loss, imbalance or under-voltage?
• Is the system simplified and space constrained (favoring integrated MPCB)?
• Do regulations or design standards require separate protection devices such as contactors and relays?
• How frequent are motor starts and stops, and how important is fast reset or minimal downtime?

Why Choice Matters for System Reliability

Choosing the wrong type of protection can lead to nuisance trips, motor damage or even safety risk. An MCCB alone may trip at startup surge. An overload relay alone fails on short circuit. MPCB simplifies design but may not match all regulatory or control requirements.

Proper device choice ensures reliable motor operation, protects equipment, and supports long service life under varying conditions.
