In power systems, isolators and circuit breakers are both widely used switching devices, yet many people confuse the two. In fact, they differ in structure, operating principles, functions, and application scenarios. Understanding their differences helps ensure proper selection and application while supporting the safe operation of electrical equipment. This article explains the distinctions between isolators and circuit breakers from the perspectives of function and application.

Key Takeaways

• Different functional positioning: An isolator is mainly used for circuit isolation and maintenance safety, while a circuit breaker is used for switching current and providing fault protection.
• Different arc extinguishing capability: An isolator does not have an arc extinguishing device and cannot be operated under load, whereas a circuit breaker includes arc extinguishing mechanisms and can interrupt load and short circuit currents.
• Different application scenarios: Isolators are mainly used for maintenance and safety isolation, while circuit breakers are widely used for circuit control and protection.
• Different safety focus: A circuit breaker provides protection functions, while an isolator emphasizes a visible disconnection point to ensure safety.

What Are an Isolator and a Circuit Breaker?

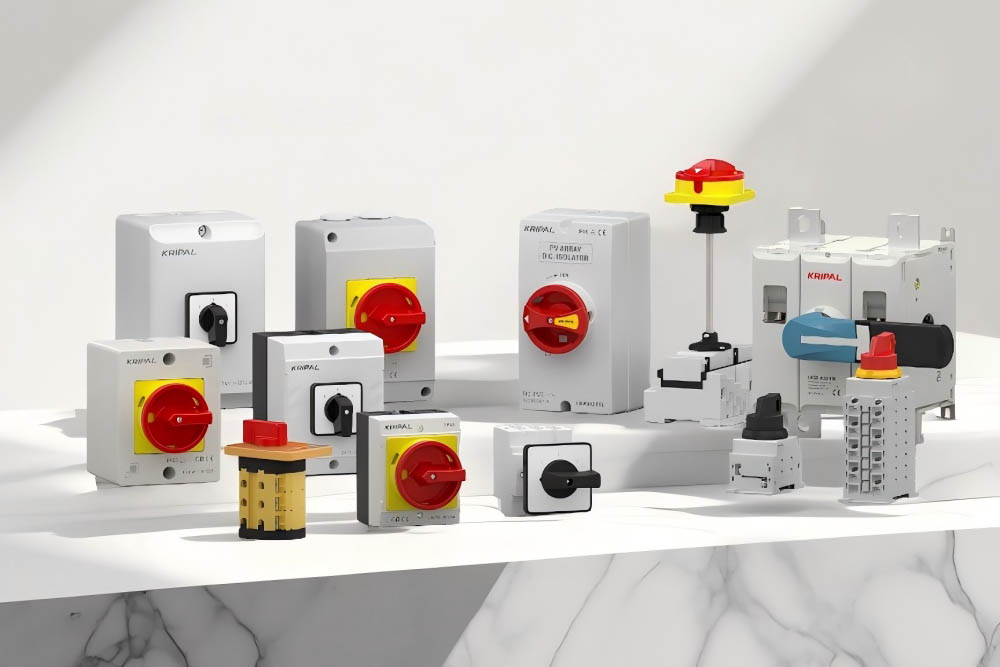

Isolator

An isolator is a switching device that separates electrical equipment from the power supply. Its primary purpose is to provide a clearly visible disconnection point so that maintenance and servicing can be carried out safely. It is generally not used to interrupt load current and focuses on isolation and safety.

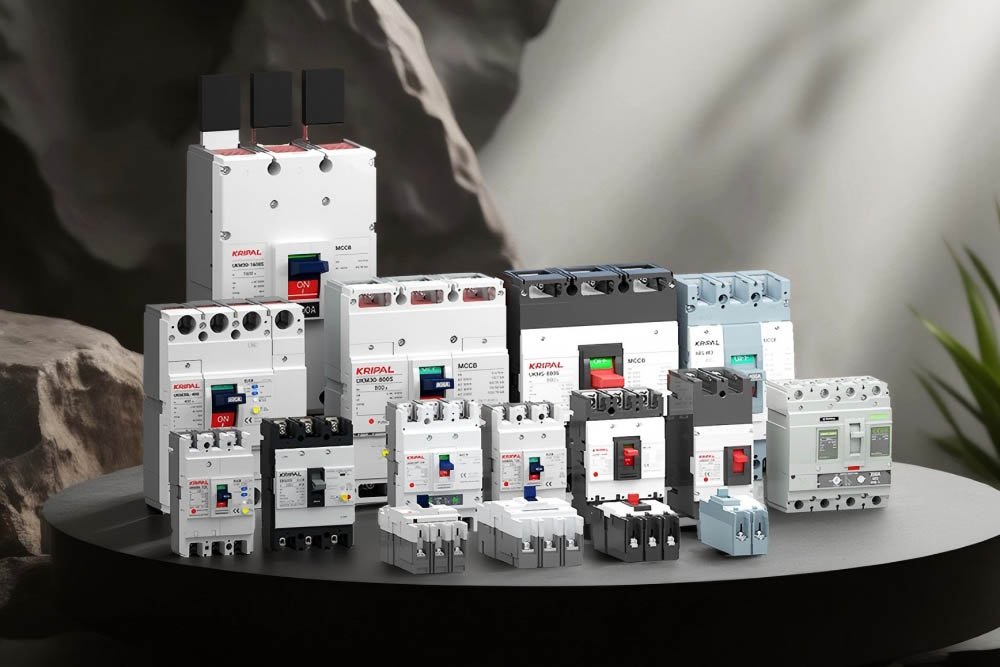

Circuit Breaker

A circuit breaker is a protective switching device that can make, carry, and interrupt current. When overload or short circuit faults occur, it automatically disconnects the circuit to protect lines and equipment. It combines both control and protection functions.

What Are Their Working Principles?

Working Principle of an Isolator

An isolator operates through a mechanical mechanism that connects or disconnects contacts. When operated, the moving contact separates from the fixed contact and creates a visible air gap, which achieves electrical isolation. Since it does not include an arc extinguishing device, it is usually operated only when there is no load or when the current is very small, and it mainly provides safe isolation conditions.

Working Principle of a Circuit Breaker

A circuit breaker operates through an internal contact system and an arc extinguishing device. When overload or short circuit conditions occur, thermal, magnetic, or electronic protection mechanisms are activated, which cause the contacts to separate rapidly. At the same time, the arc extinguishing device suppresses and extinguishes the arc generated during interruption so that current can be safely cut off.

What Are Their Applications?

Applications of an Isolator

• An isolator is mainly used in power systems for safety isolation and configuration switching.
• During inspection, maintenance, or shutdown, it disconnects equipment from the power source and provides a visible break to ensure personnel safety.
• In practical systems, it operates together with a circuit breaker. The circuit breaker interrupts the load current first, and then the isolator opens to provide physical separation.
• It can also be used for busbar switching or line sectionalizing to adjust system configuration.
• Because it has no arc extinguishing capability, it cannot interrupt load or fault current.

Applications of a Circuit Breaker

• A circuit breaker is used for circuit control and protection in power systems.
• It can connect and disconnect normal operating current during routine operation.
• When overload or short circuit faults occur, it quickly interrupts the circuit to prevent equipment damage and fault escalation.
• During normal conditions, it performs switching tasks when circuits are energized or de energized.

What Are Their Functions?

Functions of an Isolator

• Electrical isolation function: It separates equipment from the power supply during maintenance or shutdown and provides a visible break to protect personnel.
• Configuration switching: It is used for busbar sectionalizing and circuit switching, which allows changes in system configuration.
• Auxiliary operation: It works with a circuit breaker so that after the breaker interrupts the current, the isolator provides secure isolation for maintenance.

Functions of a Circuit Breaker

• Making and breaking current: It can connect or disconnect load current under normal operating conditions.
• Fault protection: It automatically interrupts the circuit when overload or short circuit conditions occur, which protects lines and equipment.
• Arc extinguishing: It contains an arc extinguishing system that safely suppresses the arc generated during interruption.
• Control function: It performs routine switching operations in power systems.

What Problems May Occur If They Are Confused?

Load interruption using an isolator may cause equipment damage

If an isolator is used as if it were a circuit breaker and operated under load or fault conditions, strong arcing may occur. Since the isolator lacks an arc extinguishing device, the contacts may burn and equipment damage or accidents may result.

Lack of effective protection may expand faults

If an isolator is assumed to provide protection and no proper circuit breaker is installed, overload or short circuit faults cannot be cleared automatically, which may lead to severe equipment damage or fire hazards.

Maintenance safety risks

If a circuit breaker is treated as the only isolation measure and the visible disconnection provided by an isolator is ignored, there may be a risk of accidental reclosing or misjudgment of power status in certain high voltage systems, which can endanger maintenance personnel.

Violation of operating procedures

Power systems follow strict operating sequences, since the circuit breaker should be opened before the isolator, and the reverse order should be followed when restoring power. Confusing the two devices may lead to incorrect procedures and increase accident risks.

Comparison Between Isolators and Circuit Breakers

Conclusion

Confusing isolators and circuit breakers may create gainful safety risks. If an isolator is operated under load, arcing and equipment damage may occur because it does not include arc extinguishing capability. If the protective function of a circuit breaker is ignored, faults such as overload or short circuit cannot be cleared in time, which may lead to wider system damage. Incorrect operating sequences may also affect maintenance safety.

KRIPAL provides a comprehensive portfolio of isolators and circuit breakers engineered to support a wide range of applications. Explore our product offerings or contact our team to identify the solution best suited to your requirements.

FAQs

Q: Can an isolator be operated under load?

It generally cannot be operated under load because it does not include an arc extinguishing device and is intended for no load or minimal current conditions.

Q: Can a circuit breaker replace an isolator?

In some low voltage systems it can perform both control and protection functions, but in high voltage systems an isolator is still required to provide a visible disconnection point for safe maintenance.

Q: Why should the circuit breaker be opened before the isolator?

Because the circuit breaker is designed to interrupt current and extinguish arcs, it should disconnect the load first, after which the isolator provides safe isolation to avoid arcing risks.

Q: Are both devices considered switching equipment?

Yes, both are switching devices, although their functions differ, since an isolator focuses on safety isolation while a circuit breaker focuses on control and fault protection.
