In a DC power system, the circuit breaker plays an important role as a protective element, directly impacting equipment safety and system stability.
Understanding the basic principles of DC circuit breakers and mastering the proper selection method is critical for ensuring safe system operation.
Key Takeaways
- Clarify system parameters: Always verify voltage, current, and application scenarios before selecting.
- Pay attention to breaking capacity: Ensure the circuit breaker can safely interrupt fault currents.
- Understand the difference between AC and DC: Never replace DC circuit breakers with AC circuit breakers.
- Choose reliable products: Prioritize brands that meet standards and offer stable quality.
What Are the Key Factors for Selecting a DC Circuit Breaker?
Rated Voltage
Rated voltage is one of the most fundamental and critical parameters when selecting a DC circuit breaker. The rated voltage of the circuit breaker must be greater than or equal to the maximum working voltage of the system.
If the rated voltage is insufficient, the breaker may fail to extinguish the arc when disconnecting the circuit, causing equipment damage or even safety accidents. In DC systems, since there is no zero-crossing point, extinguishing the arc is more difficult, making the voltage rating more stringent.
Rated Current
Rated current determines the amount of current the circuit breaker can carry over a long period. When selecting, choose based on the normal operating current of the load while considering starting currents or instantaneous surge currents.
It is generally recommended to leave some margin above the actual operating current for safety and reliability.
Breaking Capacity
Breaking capacity refers to the maximum current the circuit breaker can safely interrupt during faults such as short circuits. This parameter is directly related to system safety and is a critical aspect of the selection process.
If the breaking capacity is insufficient, the circuit breaker may fail to interrupt the current during a fault, possibly resulting in explosions or burnouts.
Trip Characteristics
Trip characteristics define the speed and response of the circuit breaker under different current conditions.
The commonly used B, C, and D curves are suitable for different types of loads:
- B curve for resistive loads or sensitive protection applications,
- C curve for general industrial loads,
- D curve for equipment with high starting currents, such as motors.
Selecting the right trip characteristic can prevent false tripping and ensure timely protection in the event of a fault, thereby improving the overall stability of the system.
Types of DC Circuit Breakers and Their Applications
DC MCB

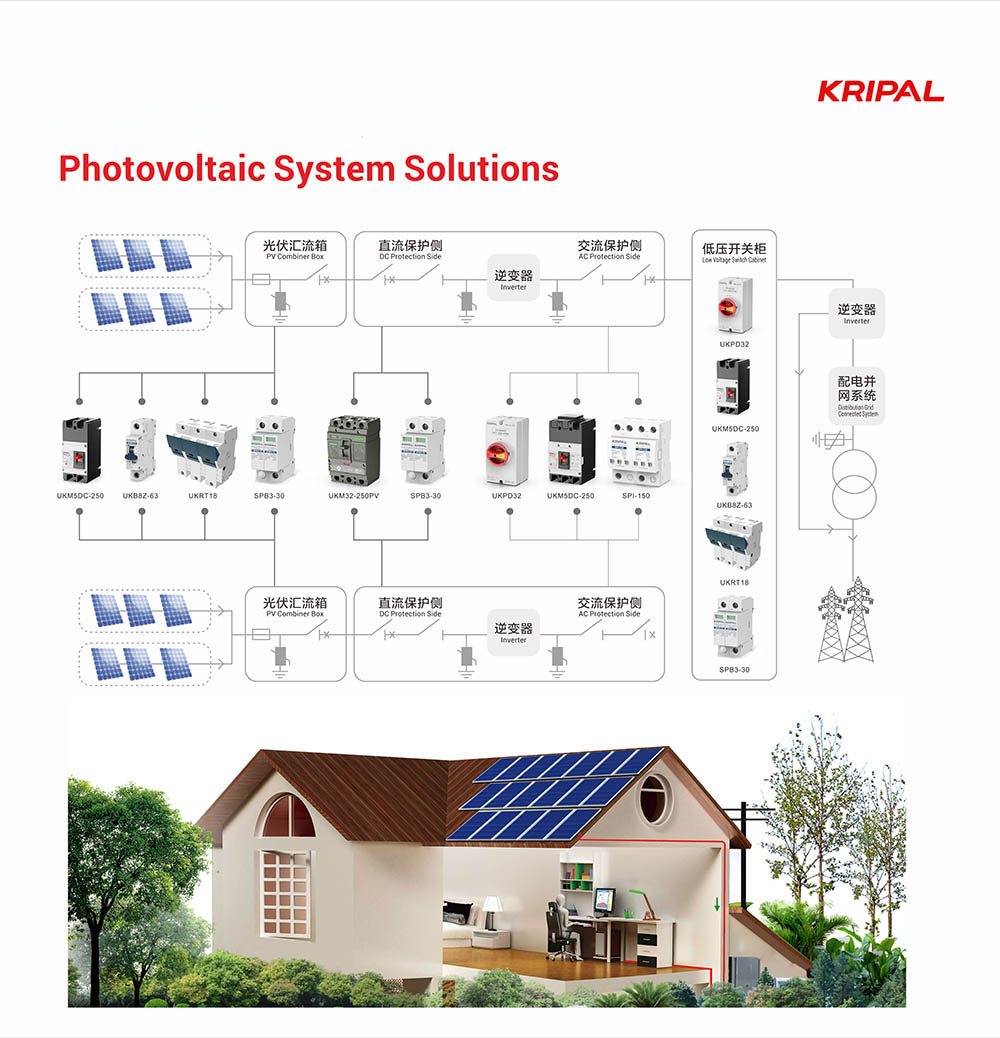

The DC Miniature Circuit Breaker is a common protection device for low-voltage DC circuits, typically suitable for systems with lower rated current. These breakers are compact, easy to operate, and ideal for household photovoltaic systems, power tools, and small equipment.
Applications:
- DC circuit protection in household photovoltaic systems
- Small-scale energy storage systems
- Circuit protection for power tools and small electric vehicles
DC Air Circuit Breaker
The DC Air Circuit Breaker is used in high-voltage, high-current DC circuits and typically has a larger breaking capacity, suitable for use in large systems. They use air as the medium to extinguish the arc and generally come with overload and short-circuit protection.
Applications:
- Industrial DC power systems
- Large-scale energy storage systems (e.g., battery storage)
- High-power photovoltaic systems
