DC MCCB

High breaking capacity and exceptional resistance to short arcs

KRIPAL DC Molded Case Circuit Breakers are engineered for superior performance and reliability in demanding applications.

Get A Quote

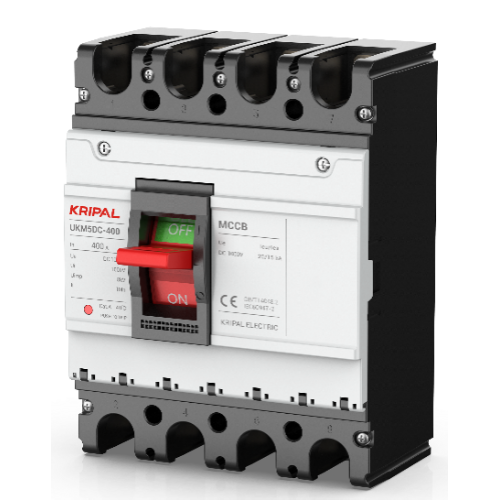

UKM5DC 1500V 400A 4 Pole DC MCCB PV Solar Molded Case Circuit Breaker

The UKM5DC-400 4P dc mccb is designed for DC distribution and energy storage systems.

View Details

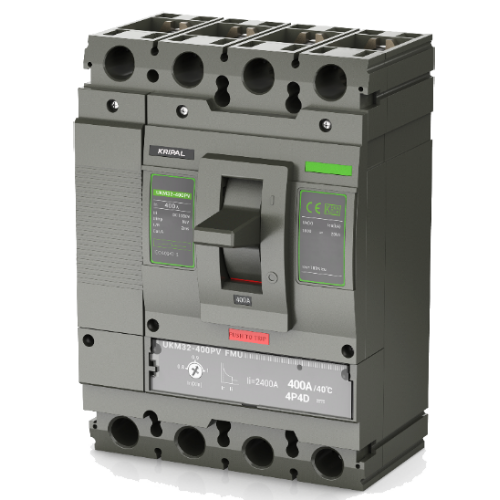

UKM32PV 400A 4 pole 1000V DC MCCB 4P DC Circuit Breaker CE Certified

UKM32-250PV DC Molded Case Circuit Breaker is designed for photovoltaic power generation and distribution systems, supporting rated currents up to 250A and DC rated voltages as high as DC1000V.

View Details

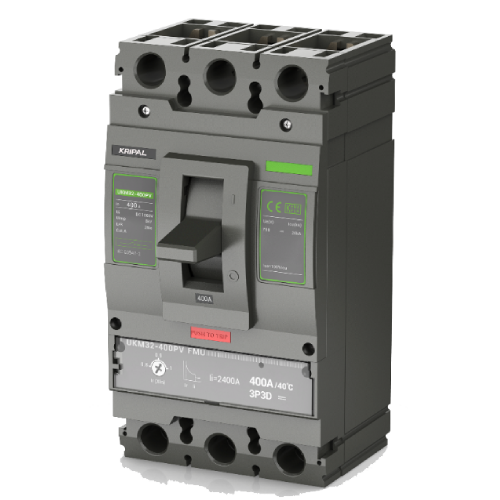

UKM32PV 400A 3P 750V DC MCCB for PV System Molded Case Circuit Breaker

UKM32-250PV DC Molded Case Circuit Breaker is designed for photovoltaic power generation and distribution systems, supporting rated currents up to 250A and DC rated voltages as high as DC1000V.

View Details

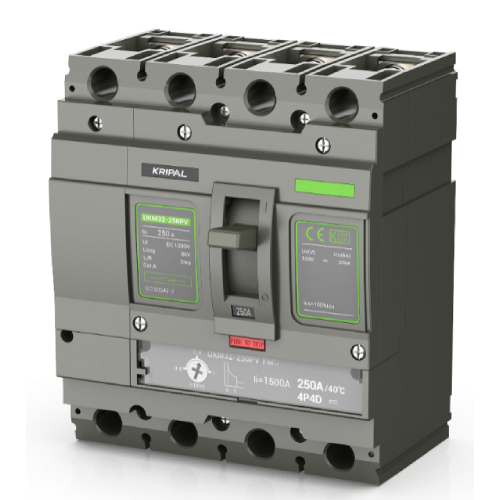

UKM32PV DC Molded Case Circuit Breaker 1000V 250A 4 Pole DC MCCB KEMA CE Certified

UKM32-250PV DC Molded Case Circuit Breaker is designed for photovoltaic power generation and distribution systems, supporting rated currents up to 250A and DC rated voltages as high as DC1000V.

View Details

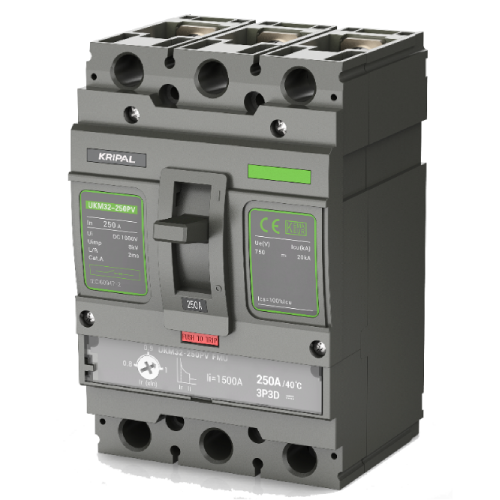

UKM32PV DC MCCB 3P 250A 750V for Battery Energy Storage Systems DC Molded Case Circuit Breaker

UKM32-250PV DC Molded Case Circuit Breaker is designed for photovoltaic power generation and distribution systems, supporting rated currents up to 250A and DC rated voltages as high as DC1000V.

View Details

UKM5DC 1500V 400A 4 Pole DC MCCB PV Solar Molded Case Circuit Breaker

The UKM5DC-400 4-Pole DC Molded Case Circuit Breaker is built for high-performance DC system protection, offering enhanced flexibility for multi-line DC circuits.

View Details

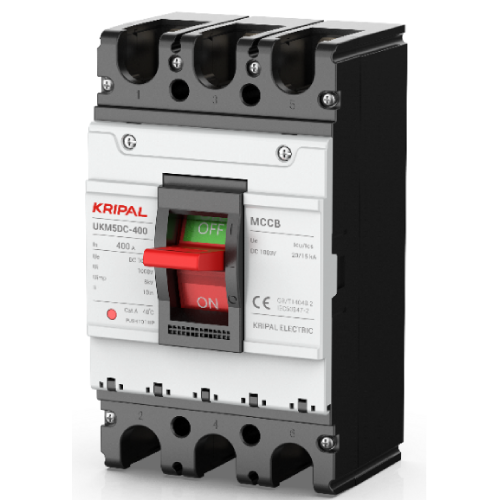

UKM5DC 3P 400A DC MCCB 1000V 400A DC Molded Case Circuit Breaker 3 Pole CE Certified

The UKM5DC-400 3P dc mccb is designed for DC distribution and energy storage systems.

View Details

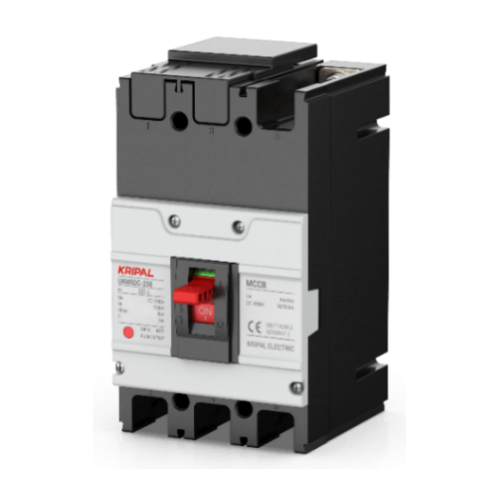

UKM5DC DC MCCB 3P 250A 1500V PV Solar Molded Case Circuit Breaker

The UKM5DC-250 3-Pole DC Molded Case Circuit Breaker is built for high-performance DC system protection, offering enhanced flexibility for multi-line DC circuits.

View Details

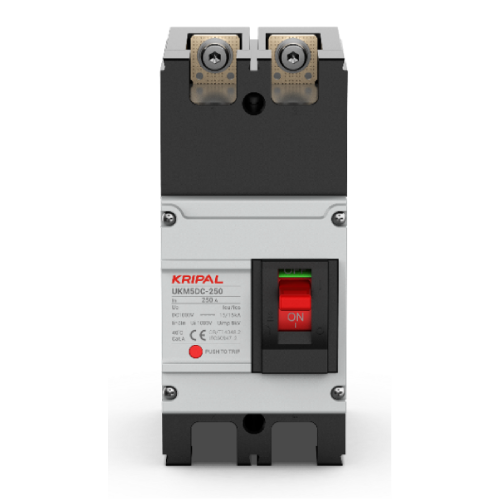

UKM5DC-250 2 Pole 250 amp DC MCCB CE Certified

The UKM5DC-250 2 Pole 250amp dc mccb is designed for DC distribution and energy storage systems.

View Details

Download Catalog

For more information, please download the album.

Get A Free Quote Download Catalog

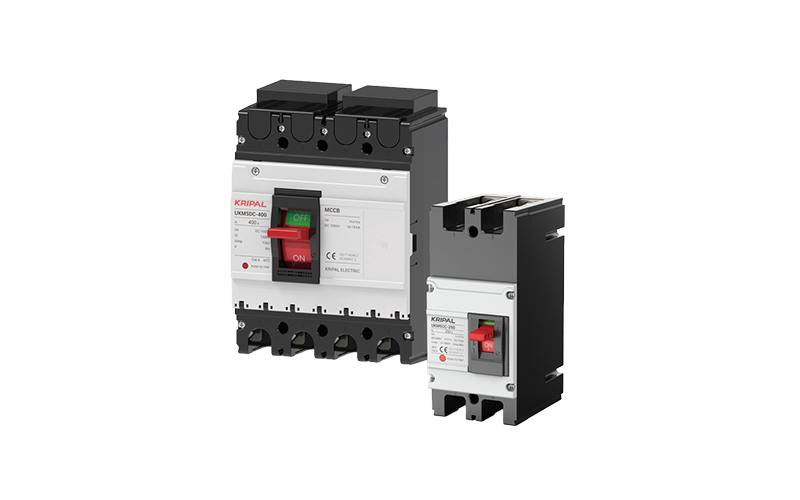

DC MCCB Circuit Breakers by Kripal

KRIPAL DC Molded Case Circuit Breakers are designed for power generation and distribution circuits with rated currents of 250A, 400A, and 630A, and a rated voltage of up to DC 1500V. Featuring long-delay overload protection and instantaneous short-circuit protection, they safeguard PV power distribution systems, circuits, and electrical equipment against damage caused by overloads and short circuits. These breakers are widely used in applications such as combiner boxes, DC distribution panels, inverters, and energy storage systems.

Key Features:

Compact and robust design for easy installation and long service life.
High breaking capacity and exceptional resistance to short arcs.
Reliable overload and short-circuit protection to safeguard critical circuitry and power equipment.

Applications:

Widely used across new energy and industrial sectors, including:

Photovoltaic (PV) Systems
Energy Storage Systems (ESS)
Wind Power
Telecommunications
Rail Transportation

Applications of Kripal DC MCBs

Explore Solution >

Aviation & Ground Support Equipment (GSE)

The UKM5DC-400 4P dc mccb is designed for DC distribution and energy storage systems.

Explore More >

Building Management & Intelligent Construction

The UKM5DC-400 4P dc mccb is designed for DC distribution and energy storage systems.

Explore More >

Data Centers & Critical Facilities

The UKM5DC-400 4P dc mccb is designed for DC distribution and energy storage systems.

Explore More >

What Makes Kripal’s DC MCCB Different?

Technical Parameters:

250A: 2P/1000V, 3P/1500V
400A/630A: 3P/1000V, 4P/1500V

Product Certification:

CE Certified

Frequently Asked Questions

Explore FAQ >

What is a DC MCCB (Molded Case Circuit Breaker)?

A DC MCCB (Molded Case Circuit Breaker) is a protection device designed for DC circuits. It automatically disconnects the current in the event of overloads or short circuits, preventing equipment damage and safety hazards such as fires.

Why do solar photovoltaic systems need a DC MCCB?

Solar photovoltaic systems use DC electricity, and DC MCCBs are specifically designed for these types of circuits. They provide reliable protection against overloads and short circuits, ensuring the system can quickly cut off power in case of faults, safeguarding the equipment and ensuring smooth operation.

How do I choose the right DC MCCB?

When selecting a DC MCCB, consider the following factors: Rated Voltage and Current: Ensure the MCCB's ratings are higher than the system's maximum operating voltage and current. Breaking Capacity: Choose a breaker with a sufficient breaking capacity to handle potential short-circuit currents. Environmental Conditions: Consider the temperature, humidity, and other environmental factors where the breaker will be installed. Certification Standards: Ensure the MCCB meets relevant safety certification standards, such as IEC, UL, etc.

How do I correctly install a DC MCCB?

To install a DC MCCB, follow these steps: Disconnect the Power: Ensure the system power is completely turned off before starting the installation. Identify Terminals: Correctly identify the input (positive) and output (negative) terminals of the MCCB. Proper Wiring: Follow the wiring diagram in the product manual to connect the MCCB correctly. Regular Inspections: Periodically check the connections to ensure they are secure and the system is operating safely.
